| Place of Origin: | China,shenzhen |
| Brand Name: | DUALRAYS |
| Certification: | CE |
| Model Number: | D6 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1 |
| Packaging Details: | Cartons |
| Delivery Time: | 7 |
| Payment Terms: | T/T |
| Supply Ability: | 99999 |
| Item Type: | LED Tri Proof Light | Warranty(years): | 5 |
|---|---|---|---|
| Color Temperature(cct): | 2700K-6500K | Beam Angle: | 120 Degree |
| High Light: | PC Material LED Tri Proof Lamp,CE Approved LED Batten Light,IP69k sealed Tri Proof Led Light |
||

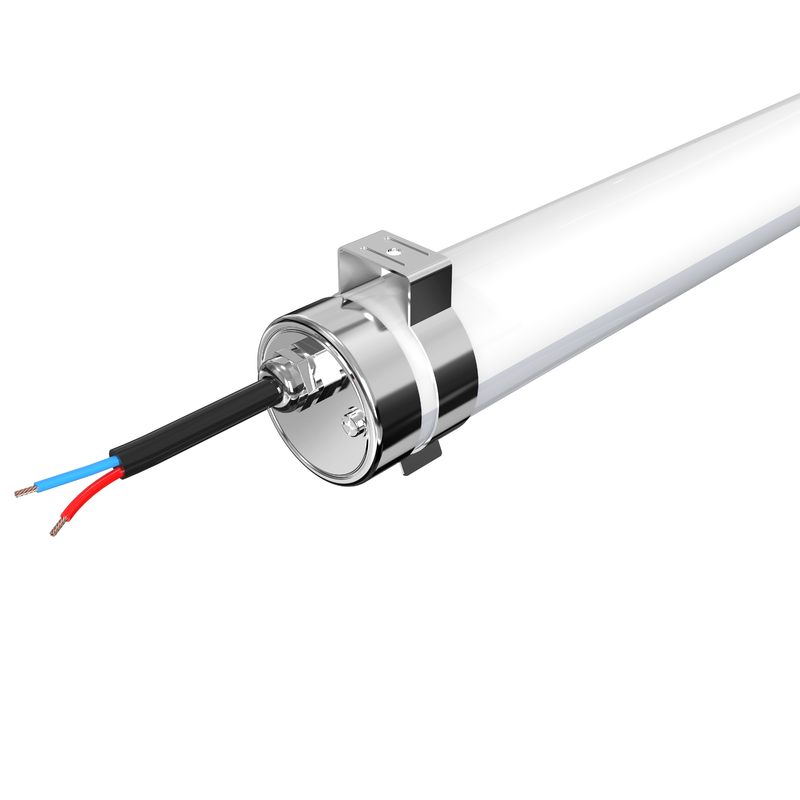

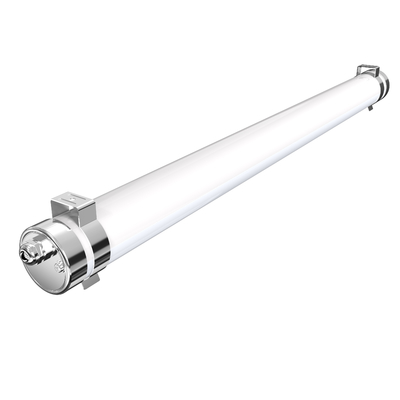

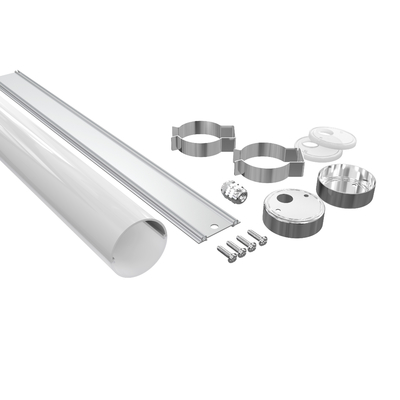

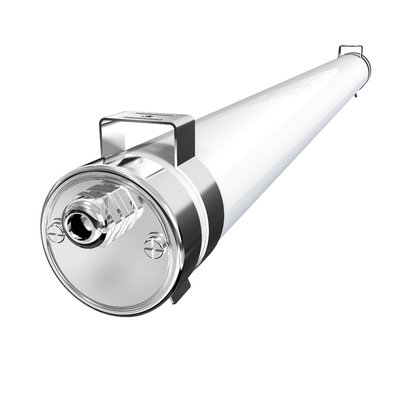

DUALRAYS Tri Proof Light IP69K IK06/IK10 LED Batten Light for Farm Lighting
General Characteristics:
Features:
Input Voltage: AC200~240V 50/60Hz(AC100~277V 50/60Hz Optional)
Material: PC
CCT: WW: 3000±200K NW:4000±200K DW: 5000±200K CW: 5700±200K CW: 6500±200K
CRI: >80Ra (>70Ra Optional)
Beam Angle: 120°
Features: IP65 / IK08 Protection
Lifespan: L70/B20 @ 50.000h
Driver: DUALRAYS High PF Flicker-free Driver
Operation Temp: -40°C to + 50°C(-40°F to 122°F)
Installation:Suspension/Ceiling Mounting, Single/ Double Wiring
Optional: 1-10V Dimming/Sensor/Emergency/Plug
Report: LM80/TM-21/LM79/TM21/ISTMT/LCP/IES/LDT/CE(EMC+LVD),RoHS,ENEC ,SAA,RCM
Application:
Specification:
DUALRAYS D6 LED Triproof Light Spe.pdf
|
Model No.
|
DR-TP020-FG2XP
|
DR-TPL030-FG4XP
|
DR-TPL040-FG5XP
|
DR-TPL050-FG5XP
|
|
System Watts/W
|
20W
|
30W
|
40W
|
50W
|
|
System Efficiency/LPW
|
130LPW / 160LPW Optioanl
|
|||
|
Lumen Output/lm
|
2.600/3.200±5%
|
3.900/4.800±5%
|
5.200/6.400±5%
|
6.500/8.000±5%
|
|
Rated Input Voltage/V
|
AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional)
|
|||
|
LEDs Light Source
|
SMD2835
|
|||
|
SDCM
|
<6
|
|||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional)
|
|||
|
CRI/Ra
|
>80Ra (>70Ra for Option)
|
|||
|
Power Factor
|
>0.91
|
|||
|
THD
|
<10%
|
|||
|
Beam Angle(Optional)
|
120°
|
|||
|
UGR
|
<22
|
|||
|
LED Driver
|
BOKE Fixed Power/ DIP Switch Power Adjustable Optional
|
|||
|
IP Rating
|
IP65
|
|||
|
IK Level
|
IK08
|
|||
|
Dimming(Optional)
|
1-10V, DALI
|
|||
|
Protection
|
IP69K
|
|||
|
Sensor(Optional)
|
Daylight sensor/Microwave Sensor
|
|||
|
Protection Class
|
ClassⅠ
|
|||
|
Finishing Color(Optional)
|
RAL9016 Matt White
|
|||
|
Material
|
PC+PC (PMMA / Tempered Glass Optional)
|
|||
|
Lifespan/hrs
|
54.000 Hrs (Ta=30℃@L70)
|
|||
|
Operation Temp/℃
|
-40°C to + 50°C(-40°F to 122°F)
|
|||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F)
|
|||
|
Installation(Optional)
|
Suspension / Ceiling Mounting Optional
|
|||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
|
|||
