| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
| Model Number: | DR-TP020-FG2XP |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Business Day |
| Payment Terms: | L/C, T/T, Western Union, paypal |
| Supply Ability: | 50000PCS/Month |
| Model No.: | DR-TP020-FG2XP | System Efficiency/LPW: | 130LPW / 160LPW Optioanl |
|---|---|---|---|
| LEDs Light Source: | SMD2835 | CCT/K: | 5000K For Standard |
| CRI/Ra: | >80Ra (>70Ra For Option) | LED Driver: | BOKE Fixed Power/ DIP Switch Power Adjustable Optional |

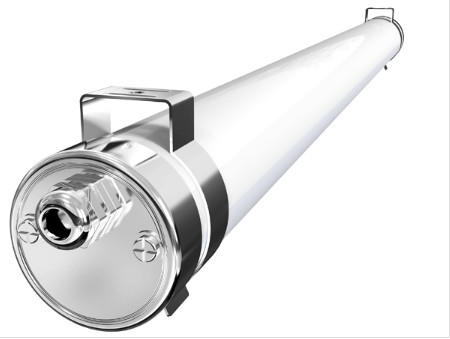

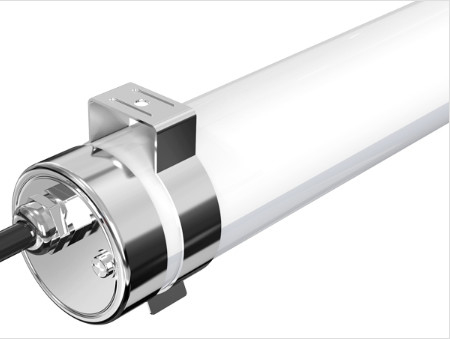

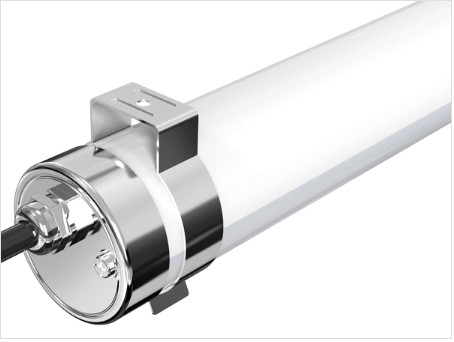

D6 LED Triproof Light Anto-UV Ammonia For Farm Lighting IP69K PMMA IK06 Anti-Ammonia/UV /PC IK10 Anti-UV Protection
|
Model No.
|
DR-TP020-FG2XP
|
DR-TPL030-FG4XP
|
DR-TPL040-FG5XP
|
DR-TPL050-FG5XP
|
|
System Watts/W
|
20W
|
30W
|
40W
|
50W
|
|
System Efficiency/LPW
|
130LPW / 160LPW Optioanl
|
|||
|
Lumen Output/lm
|
2.600/3.200±5%
|
3.900/4.800±5%
|
5.200/6.400±5%
|
6.500/8.000±5%
|
|
Rated Input Voltage/V
|
AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional)
|
|||
|
LEDs Light Source
|
SMD2835
|
|||
|
SDCM
|
<6
|
|||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional)
|
|||
|
CRI/Ra
|
>80Ra (>70Ra for Option)
|
|||
|
Power Factor
|
>0.91
|
|||
|
THD
|
<10%
|
|||
|
Beam Angle(Optional)
|
120°
|
|||
|
UGR
|
<22
|
|||
|
LED Driver
|
BOKE Fixed Power/ DIP Switch Power Adjustable Optional
|
|||
|
IP Rating
|
IP65
|
|||
|
IK Level
|
IK08
|
|||
|
Dimming(Optional)
|
1-10V, DALI
|
|||
|
Protection
|
IP69K
|
|||
|
Sensor(Optional)
|
Daylight sensor/Microwave Sensor
|
|||
|
Protection Class
|
ClassⅠ
|
|||
|
Finishing Color(Optional)
|
RAL9016 Matt White
|
|||
|
Material
|
PC+PC (PMMA / Tempered Glass Optional)
|
|||
|
Lifespan/hrs
|
54.000 Hrs (Ta=30℃@L70)
|
|||
|
Operation Temp/℃
|
-40°C to + 50°C(-40°F to 122°F)
|
|||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F)
|
|||
|
Installation(Optional)
|
Suspension / Ceiling Mounting Optional
|
|||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
|
|||
Dimension:
|
Character/Length
|
2ft
|
4ft
|
5ft
|
|
|
A
|
525.9mm
|
1125.9mm
|
1425.9mm
|
|
|
B
|
590m
|
1190mm
|
1490mm
|
|
|
C
|
78.2mm
|
78.2mm
|
78.2mm
|
Optical&photometric:
Installation:
Shipment&Packages
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-TPL020-FG2XP
|
12.5
|
670*440*20
|
13.2
|
9PCS/CTN
|
|
DR-TPL030-FG4XP
|
15.8
|
1270*360*200
|
17.5
|
9PCS/CTN
|
|
DR-TPL030-FG4XP
|
16.1
|
1270*360*200
|
18.3
|
9PCS/CTN
|
|
DR-TPL040-FG5XP
|
19.1
|
1570*360*200
|
20.6
|
9PCS/CTN
|
|
DR-TPL050-FG5XP
|
19.5
|
1570*360*200
|
21.4
|
9PCS/CTN
|
