| Place of Origin: | China,shenzhen |
| Brand Name: | DUALRAYS |
| Certification: | CE |
| Model Number: | D2.5 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1 |
| Packaging Details: | Cartons |
| Delivery Time: | 7 |
| Payment Terms: | T/T |
| Supply Ability: | 99999 |
| Item Type: | LED Tri Proof Light | Warranty(years): | 5 |
|---|---|---|---|
| Color Temperature(cct): | 2700K-6500K | Beam Angle: | 120 Degree |

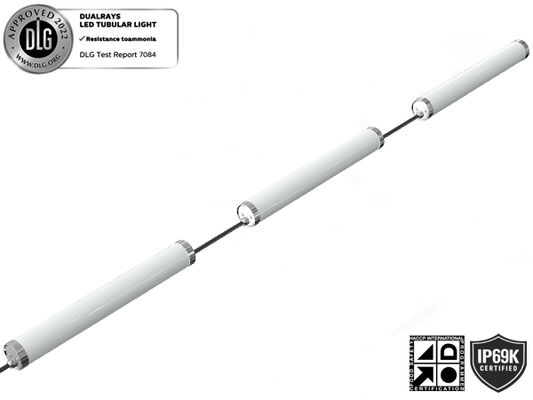

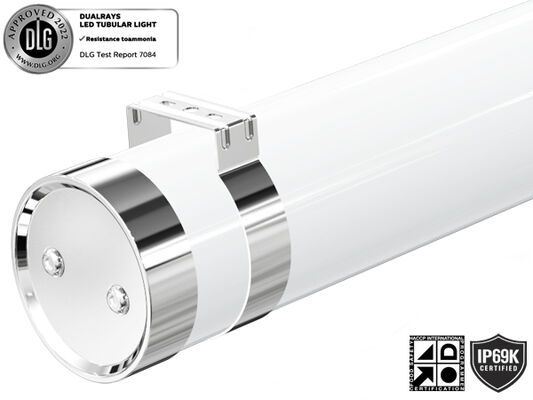

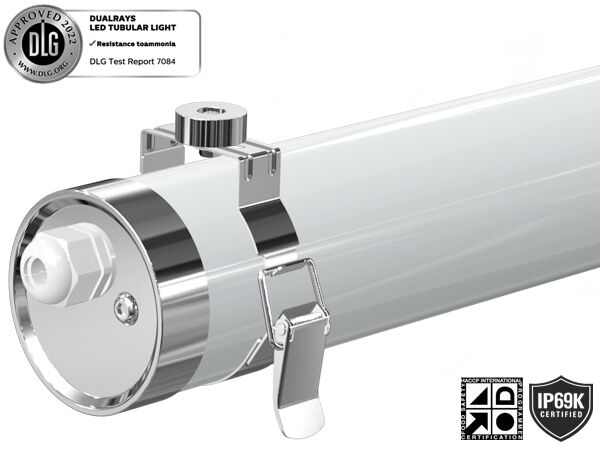

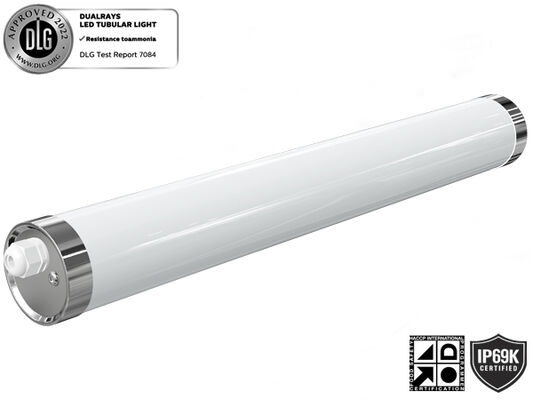

DUALRAYS 600mm 20 Watt IP65 LED Triproof Light With Suspending Surface Mounted
General Characteristics:
1. Waterproof protection grade IP65.
2. High color rendering index 80-90Ra.

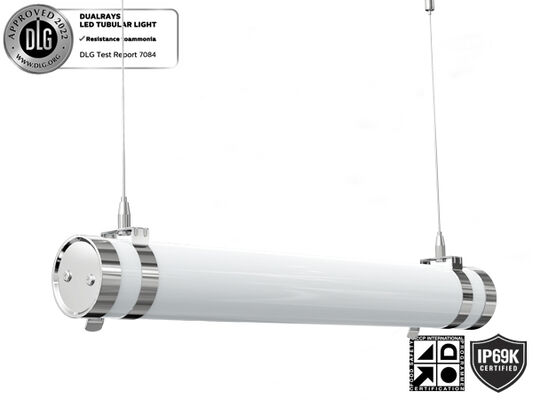

3. Suspending or Surface mounted according to your application option.
4. Also can adjust the installation angle with the extra bracket.
5. 120lm/w and 140lm/w optional, flicker free,optionally for interconnectable thru wiring, multi-lumen, multi-CCT.
Features:
Input Voltage: AC200~240V 50/60Hz(AC100~277V 50/60Hz Optional)
Material: PC
CCT: WW: 3000±200K NW:4000±200K DW: 5000±200K CW: 5700±200K CW: 6500±200K
CRI: >80Ra (>70Ra Optional)
Beam Angle: 120°
Features: IP65 / IK08 Protection
Lifespan: L70/B20 @ 50.000h
Driver: DUALRAYS High PF Flicker-free Driver
Operation Temp: -40°C to + 50°C(-40°F to 122°F)
Installation:Suspension/Ceiling Mounting, Single/ Double Wiring
Optional: 1-10V Dimming/Sensor/Emergency/Plug
Report: LM80/TM-21/LM79/TM21/ISTMT/LCP/IES/LDT/CE(EMC+LVD),RoHS,ENEC ,SAA,RCM
Application:

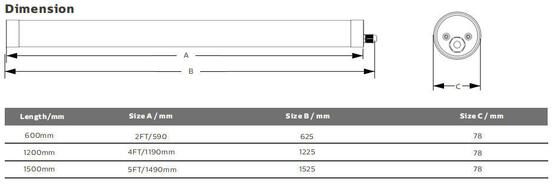

Specification:
DUALRAYS D2H LED Triproof Light Spe.pdf
| CRI/Ra | >80Ra (>70Ra for Option) | ||||
| Power Factor | >0.94 | ||||
| THD | <10% | ||||
| Beam Angle(Optional) | 120° | ||||
| UGR | <22 | ||||
| LED Driver | DUALRAYS Own Developed High PF Interior Driver | ||||
| IP Rating | IP65 | ||||
| IK Level | IK08 | ||||
| Dimming(Optional) | 1-10V | ||||
| Sensor(Optional) | No | ||||
| Emergency(Optional) | No | ||||
| Protection Class | ClassⅠ | ||||
| Finishing Color(Optional) | White RAL9016 Optional | ||||
| Material | PC+PC | ||||
| Lifespan/hrs | 50.000 Hrs (Ta=30℃@L70) | ||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
| Installation(Optional) | Suspension / Ceiling Mounting Optional | ||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
