Name: Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W
Brand: Dualrays
SKU: DR-TP020- FG2XP
Price: 19 USD
Availability: InStock
Rating: 4.7 (130 reviews)

Home Products LED Tri Proof Light

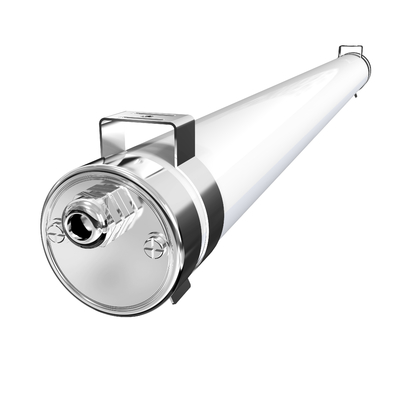

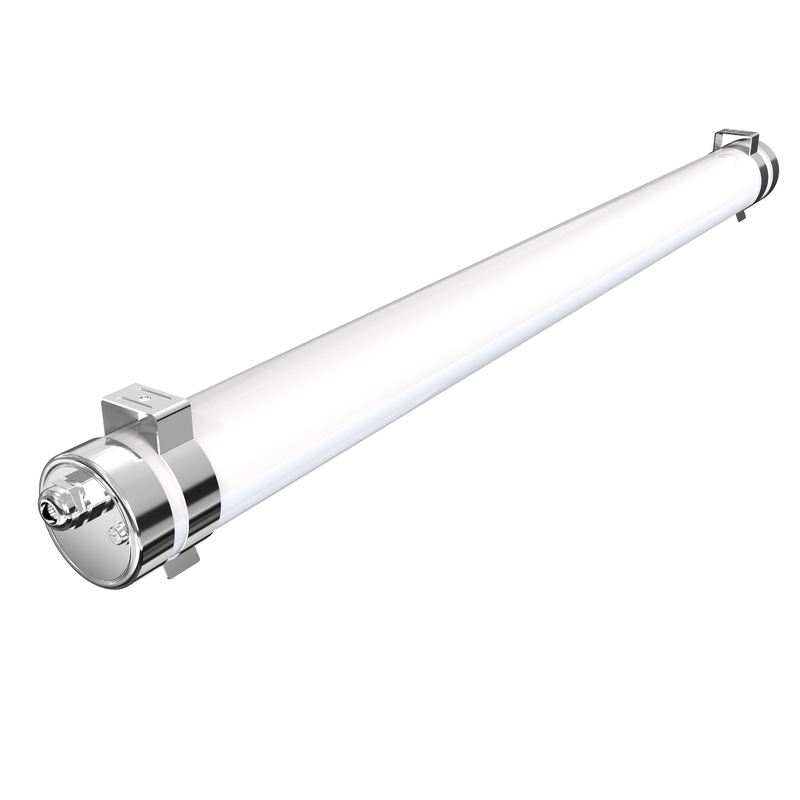

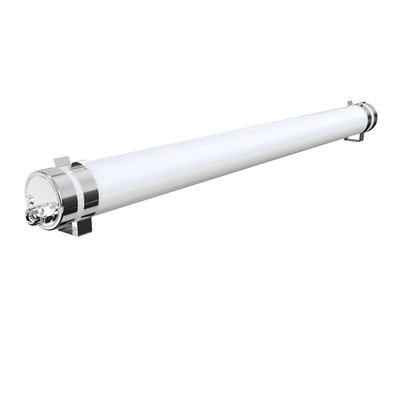

Dualrays SMD2835 LED Triproof Light High Luminous 20W 30W 40W 50W

Product Details:

Place of Origin:	China
Brand Name:	Dualrays
Certification:	CE,RoHS,,D-Mark
Model Number:	DR-TP020- FG2XP

Payment & Shipping Terms:

Minimum Order Quantity:	2ps
Price:	USD19
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	100000

Contact Now

Detailed Product Description

Material:

PC+Alloy Aluminum

Power:

20W

LED Quantites:

221pcs

CCT:

WW: 3000

High Light:

120 Beam Angle LED Triproof Light

50W SMD2835 LED Triproof Light

221pcs LED Triproof Light

Dualrays Lighting LED Triproof light high luminous efficacy with competitve price

High Brightness SAN‘AN SMD2835 LEDs, BOKE High PF Flicker-free Driver,DIP Switch Power Adjustment

Optional;

> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;

> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;

> 120°beam angle;

> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;

> Multiple Installations: Suspension, Wall Mounting;

> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor;

> 304/316 Stainless Steel End Cap & Bracket, corrosion-proof;

> No UV or IR and completely mercury free;

> L70/B20 @ 54.000h;

Model No.	DR-TP020-FG2XP	DR-TPL030-FG4XP	DR-TPL040-FG5XP	DR-TPL050-FG5XP
System Watts/W	20W	30W	40W	50W
System Efficiency/LPW	130LPW / 160LPW Optioanl
Lumen Output/lm	2.600/3.200±5%	3.900/4.800±5%	5.200/6.400±5%	6.500/8.000±5%
Rated Input Voltage/V	AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.91
THD	<10%
Beam Angle(Optional)	120°
UGR	<22
LED Driver	BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating	IP65
IK Level	IK08
Dimming(Optional)	1-10V, DALI
Protection	IP69K
Sensor(Optional)	Daylight sensor/Microwave Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	RAL9016 Matt White
Material	PC+PC (PMMA / Tempered Glass Optional)
Lifespan/hrs	54.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Tag:

vapor proof led light,

explosion proof led lights,

dust proof light fixture
