Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS/OEM |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-TP020- FG2XP |
Minimum Order Quantity: | 9PCS/1CTN |
---|---|
Price: | Negotiated After Inquiry |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Business Days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100000pcs/month |
Material: | PC+ Aluminum Alloy | Input Voltage: | AC200~240V 50/60Hz |
---|---|---|---|
Finishing Color(Optional): | White RAL9016 | IP Rating: | IP69k |
Power Efficiency: | 》92% | Power Factor: | 》0.98 |
Lifespan: | L70/B20 @ 54.000h; | LEDs Light Source: | SMD2835 |
High Light: | 5ft triproof LED tube light,Aluminum Alloy triproof led tube light,Warehouse led tri proof light 50w |

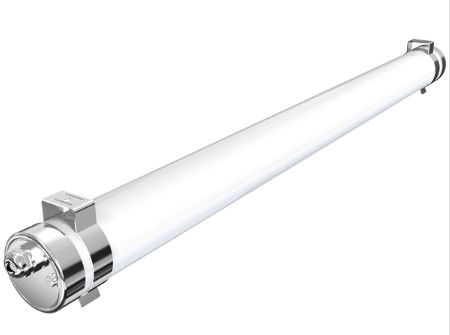

5ft 50W Classical LED Tri Proof Light IP69K IK10 High Grade For Warehousing Illumination
Model No. | DR-TP020-FG2XP | DR-TPL030-FG4XP | DR-TPL040-FG5XP | DR-TPL050-FG5XP |
System Watts/W | 20W | 30W | 40W | 50W |
System Efficiency/LPW | 130LPW / 160LPW Optioanl | |||
Lumen Output/lm | 2.600/3.200±5% | 3.900/4.800±5% | 5.200/6.400±5% | 6.500/8.000±5% |
Rated Input Voltage/V | AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional) | |||
LEDs Light Source | SMD2835 | |||
SDCM | <6 | |||
CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
CRI/Ra | >80Ra (>70Ra for Option) | |||
Power Factor | >0.91 | |||
THD | <10% | |||
Beam Angle(Optional) | 120° | |||
UGR | <22 | |||
LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional | |||
IP Rating | IP65 | |||
IK Level | IK08 | |||
Dimming(Optional) | 1-10V, DALI | |||
Protection | IP69K | |||
Sensor(Optional) | Daylight sensor/Microwave Sensor | |||
Protection Class | ClassⅠ | |||
Finishing Color(Optional) | RAL9016 Matt White | |||
Material | PC+PC (PMMA / Tempered Glass Optional) | |||
Lifespan/hrs | 54.000 Hrs (Ta=30℃@L70) | |||
Operation Temp/℃ | -40°C to + 50°C(-40°F to 122°F) | |||
Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | |||
Installation(Optional) | Suspension / Ceiling Mounting Optional | |||
Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
Character/Length
|
2ft
|
3ft
|
4ft
|
5ft
|
![]() |
A
|
605mm
|
/
|
1205mm
|
1505mm
|
|
B
|
73mm
|
/
|
73mm
|
73mm
|
|
C
|
63mm
|
/
|
63mm
|
63mm
|
