| Place of Origin: | China |
| Brand Name: | Dualrays |
| Certification: | CE ROHS SAA |
| Model Number: | DR-TP030- FG2XP |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | USD18.54 to USD41.62 |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 per month |
| Material: | PC PMMA Are Optional | Brand: | Dualrays |
|---|---|---|---|
| Input Voltage(v): | AC100-277V,50-60HZ | Lamp Luminous Efficiency(lm/w): | 120 130 150 160 |
| Cri (ra>): | >80Ra | Warranty(years): | 5 YEARS |
| Application: | Cattle Farm;Pig Farm;Replacement For Fluorescent NCF,Industrial And Agricultural Applications | Beam Angle: | 120° |
| High Light: | Anti UV tri proof led batten,160LPW Tri Proof LED Batten,Anti ammonia Tri Proof LED Tube |
||

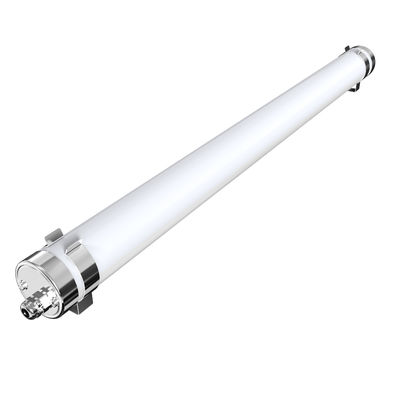

20w 30w 40w 50w 80Ra LED Tri Proof Light For Farm and industrial lighting
> BASELine Version:
> PROLine Version: 130LPW(Transparent Cover)
> PRIMELine Version: 160LPW(Transparent Cover)
>High Brightness SAN'AN SMD2835 LEDs,BOKE High PF Flicker-free Driver DIP Switch Power Adjustment Optional;
> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;
> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;
> 120°beam angle;
> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,
> 304/316 Stainless Steel End Cap & Bracket,corrosion-proof;
> No UV or IR and completely mercury free;
> L70/B20 @ 54.000h;
> Customized supported for special projects;
> SAN'AN SMD2835 LEDs: LM80/TM-21 Available;
> LM79/TM21/ISTMT/LCP and IES/LDT files available;
(D6 LED Triproof Light)
> Europe Market: CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;
> North American Market: ETL/CETL,DLC Premium Pending;
> Oceania Market: SAA,C-Tick,RCM
| Model No. | DR-TP020-FG2XP | DR-TPL030-FG4XP | DR-TPL040-FG5XP | DR-TPL050-FG5XP |
| System Watts/W | 20W | 30W | 40W | 50W |
| System Efficiency/LPW | 130LPW / 160LPW Optioanl | |||
| Lumen Output/lm | 2.600/3.200±5% | 3.900/4.800±5% | 5.200/6.400±5% | 6.500/8.000±5% |
| Rated Input Voltage/V | AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional) | |||
| LEDs Light Source | SMD2835 | |||
| SDCM | <6 | |||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
| CRI/Ra | >80Ra (>70Ra for Option) | |||
| Power Factor | >0.91 | |||
| THD | <10% | |||
| Beam Angle(Optional) | 120° | |||
| UGR | <22 | |||
| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional | |||
| IP Rating | IP65 | |||
| IK Level | IK08 | |||
| Dimming(Optional) | 1-10V, DALI | |||
| Protection | IP69K | |||
| Sensor(Optional) | Daylight sensor/Microwave Sensor | |||
| Protection Class | ClassⅠ | |||
| Finishing Color(Optional) | RAL9016 Matt White | |||
| Material | PC+PC (PMMA / Tempered Glass Optional) | |||
| Lifespan/hrs | 54.000 Hrs (Ta=30℃@L70) | |||
| Operation Temp/℃ | -40°C to + 50°C(-40°F to 122°F) | |||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | |||
| Installation(Optional) | Suspension / Ceiling Mounting Optional | |||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||
| Character/Length | 2ft | 4ft | 5ft | |
| A | 525.9mm | 1125.9mm | 1425.9mm | |
| B | 590m | 1190mm | 1490mm | |
| C | 78.2mm | 78.2mm | 78.2mm |
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
