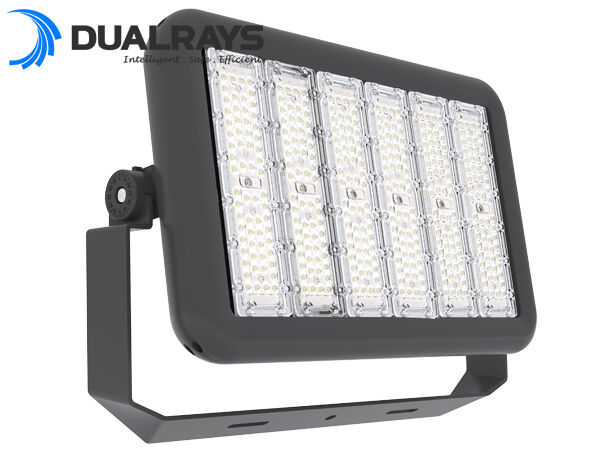

Name: CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SPL900-DG2
Availability: InStock

Home Products LED Moisture-proof Lamp

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPL900-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Wattage:	900-1800W	LED Driver:	Meanwell ELG / HLG Optional
Certificate:	CE SAA ROHS UL TUV	Chips:	LUXEON
Equivalent:	2000W MHL	CCT/K:	5000K For Standard (3000K/4000K/5700K/6500K Optional)
Beam Angle(Optional):	Symmetrical 25°/40°/50°/90° Beam Angle Optional	Dimming(Optional):	1-10V, DALI,PWM,Zigbee For Option
Highlight:	waterproof led flood lights , led yard flood lights

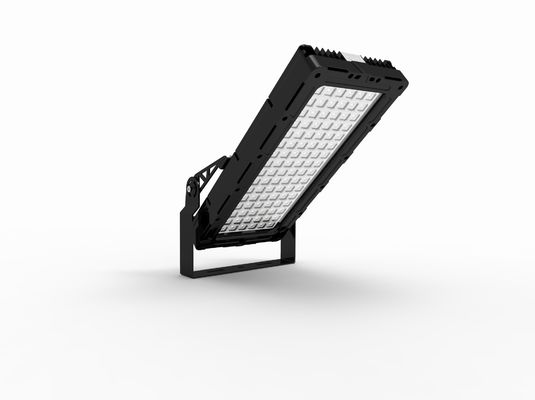

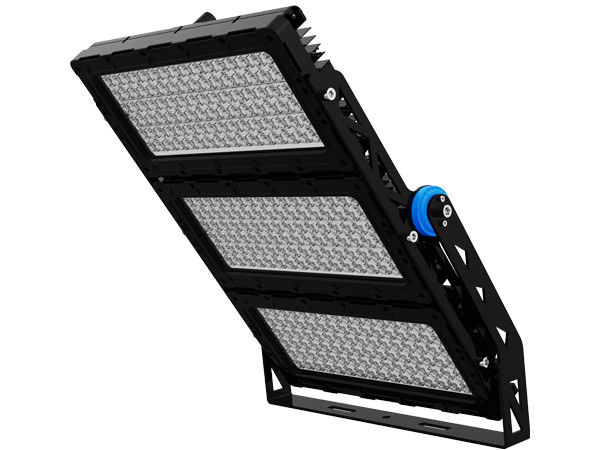

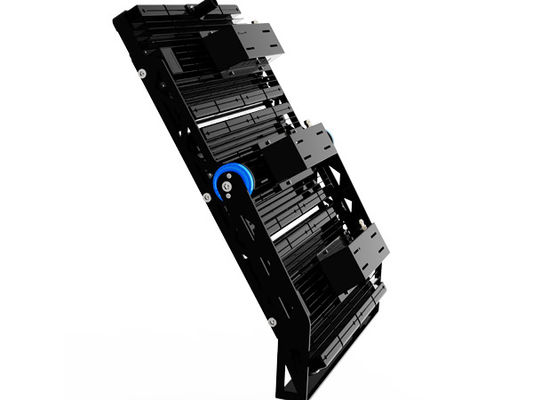

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 0

> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;

> High Brightness LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs, , Meanwell HLG / ELG Driver;

> Built-in Plug and Play Motion Sensor with Compact Structure;

> IP65 / IK08 Protection;

> Symmetrical 25°/40°/50°/90° beam angle optional;

> Surface Spray-paint Finish,Oxidation/Corrosion/Acid Resistant;

> Multi-scale lens to create well-balanced distribution and reduce glare;

> Shield to Reduce the Light Glare;

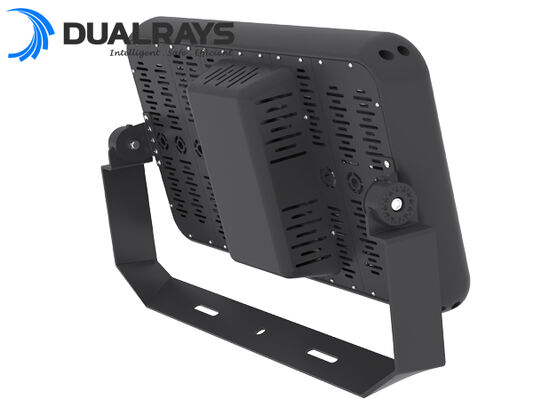

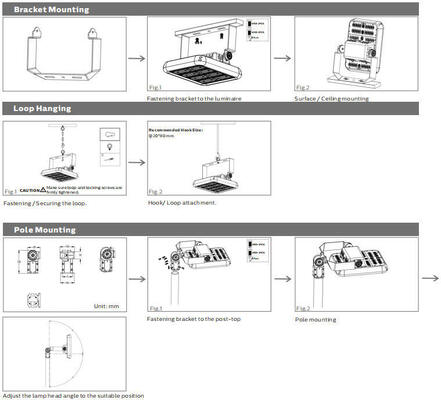

> 180°Adjustable Supporting Fixture;

> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;

> Flange Plate for Each Module for a 5°Adjustment;

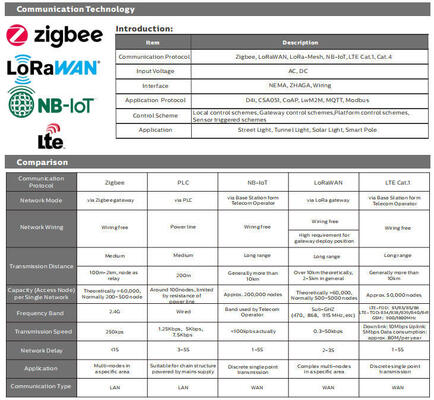

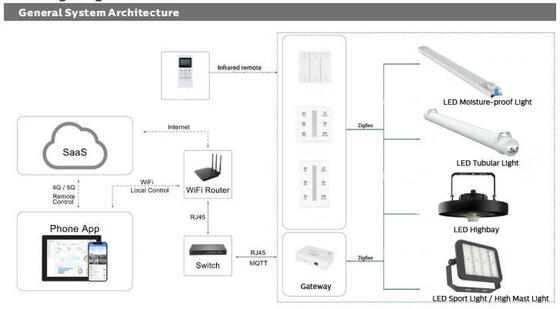

> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;

> No UV or IR and completely mercury free;

> L70/B20 @ 70.000h;

OPTIONS:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 25°/40°/50°/90°;

> Aiming Device: Laser Pointer;

> Light Glare: Shield;

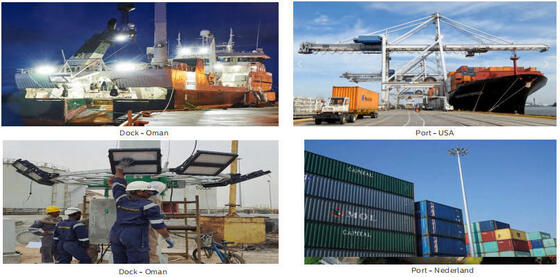

> Logistics areas (Ports)

> Stadiums and Racing tracks

> Public squares

> Apron lighting (Airports), Parking and Industrial areas

> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Model No.	DR-SPL300-DGXX	DR-SPL600-DGXX	DR-SPL900-DGXX	DR-SPL1200-DGXX	DR-SPL1500-DGXX	DR-SPL1800-DGXX
System Watts/W	300W	600W	900W	1200W	1500W	1800W
System Efficiency/LPW	130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm	48.000±5%	96.000±5%	144.000±5%	192.000±5%	240.000±5%	288.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz
LEDs Light Source	SMD3030 / SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%

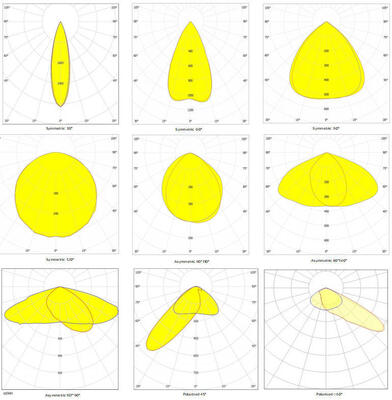

Beam Angle(Optional)	Symmetrical 25°/40°/50°/90° beam angle optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-DGXX	8.5	585315260	9.7	1PCS/CTN
DR-SPL600-DGXX	17.4	625620260	18.8	1PCS/CTN
DR-SPL900-DGXX	26.1	625820260	28.2	1PCS/CTN
DR-SPL1200-DGXX	34.2	6251150260	36.5	1PCS/CTN
DR-SPL1500-DGXX	39.3	7901240260	42.5	1PCS/CTN
DR-SPL1800-DGXX	42.1	7901240260	46.3	1PCS/CTN

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 20

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 21

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 22

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 23

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 24

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 25

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 26

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 27

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 28

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 29

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area 31

(Partnership)
