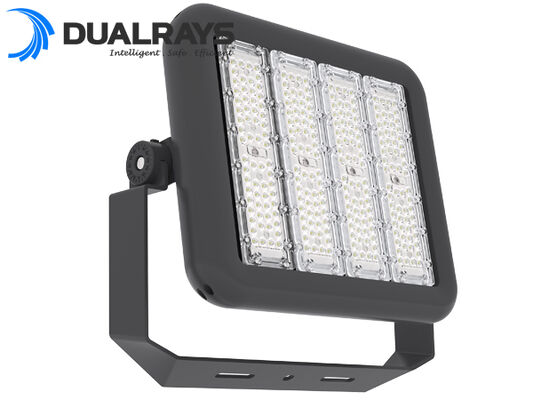

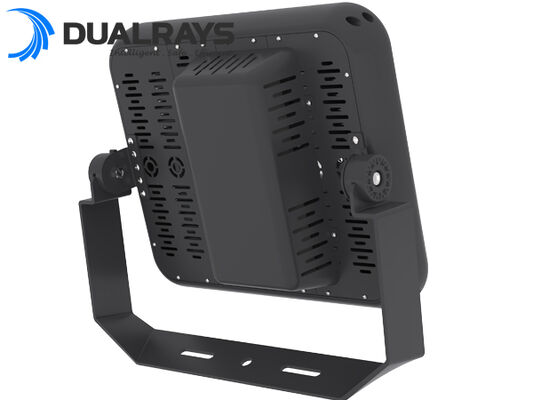

Name: 180° Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SPL600-DGXX
Availability: InStock

Home Products LED Moisture-proof Lamp

180° Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS/OEM/ODM/OBM Optional
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPL600-DGXX
Document:	DUALRAYS MFL4 LED Marine Fl...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for the latest price
Packaging Details:	DUALRAYS/OEM/ODM/OBM Package Optional
Delivery Time:	5-15 business days
Payment Terms:	T/T,L/C,Paypal
Supply Ability:	50,000PCS/Month

Contact Now

Detailed Product Description

System Watts/W:	200W	System Efficiency/LPW:	130LPW (PROLine) \| 160LPW (PRIMELine) Optional
Photobiological Safety:	RG0 (exempt Of Risk)	Rated Input Voltage/V:	AC100~277V, 50/60Hz
Driver MTBF:	500.000H,MIL-HDBK-217F(25℃)	IP (Ingress Protection Rating):	IP66
IK (Impact Resistance):	IK08	LEDs:	SMD3030 / SMD5050 Optional
Smart Function:	0-10V, PWM, Time Control,DMX, Zigbee, DALI
Highlight:	130LPW Led Sports Field Lighting , 300W Led Sports Field Lighting , SMD5050 Adjustable LED Floodlights

300W LED Sport Flood Light High Brightness 180°Adjustable Supporting Fixture

> Multi-scale lens to create well-balanced distribution and reduce glare;

> Shield to Reduce the Light Glare;

> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;

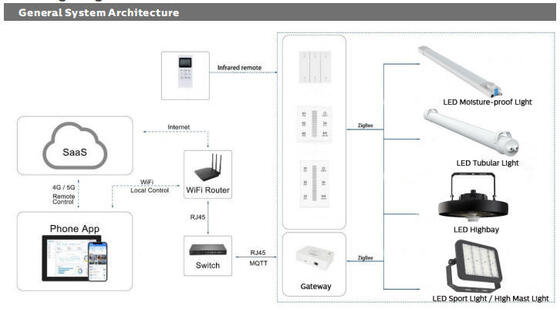

> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;

> 180°Adjustable Supporting Fixture;

> Multiple and multipurpose sports facilities and arenas

> Stadiums and Racing tracks

> Public squares

> Outdoor arenas

> Indoor sports arenas and halls

Model No.	DR-SPL300-DGXX	DR-SPL600-DGXX	DR-SPL900-DGXX	DR-SPL1200-DGXX	DR-SPL1500-DGXX	DR-SPL1800-DGXX
System Watts/W	300W	600W	900W	1200W	1500W	1800W
System Efficiency/LPW	130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm	48.000±5%	96.000±5%	144.000±5%	192.000±5%	240.000±5%	288.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD3030 / SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%

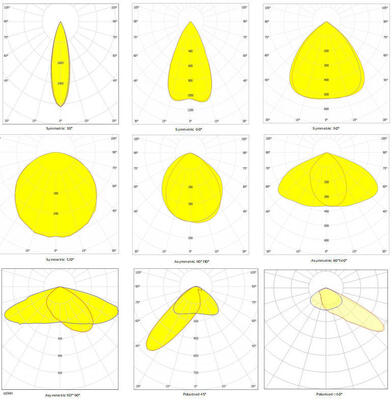

Beam Angle(Optional)	Symmetrical 25°/40°/50°/90° beam angle optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional

180° Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-DGXX	8.5	585315260	9.7	1PCS/CTN
DR-SPL600-DGXX	17.4	625620260	18.8	1PCS/CTN
DR-SPL900-DGXX	26.1	625820260	28.2	1PCS/CTN
DR-SPL1200-DGXX	34.2	6251150260	36.5	1PCS/CTN
DR-SPL1500-DGXX	39.3	7901240260	42.5	1PCS/CTN
DR-SPL1800-DGXX	42.1	7901240260	46.3	1PCS/CTN

180° Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights

High Brightness Led Sports Field Lighting High Power Led Flood Light 200W IP66 20

Q1: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q2: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q3: What brands of driver do you supply for luminaire fixture?

RE: Meanwell, Boke, Sosen, Moso and other brands available.

Q4. What brands of LEDs source you supply for your luminaire fixture?

RE: , Osram, Cree, Nichia,etc.

Q5.How to explain “illuminance“?

RE: The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.

Q6.What’s CCT(colour temperature) ?

RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.
