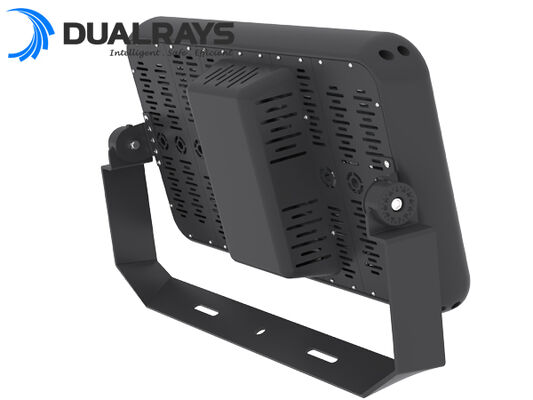

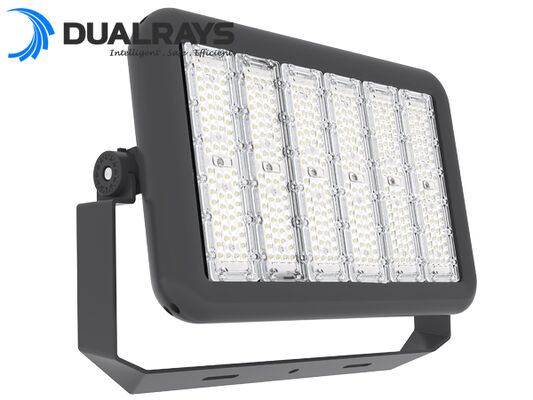

Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights

Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights

  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
  • Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
Product Details:
Place of Origin: Shenzhen, China
Brand Name: DUALRAYS/OEM/ODM/OBM Optional
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB Available
Model Number: DR-MFL400XX-7XX-BCP-XDGBPR01
Document: DUALRAYS MFL4 LED Marine Fl...pe.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Please inquiry for the latest price
Packaging Details: DUALRAYS/OEM/ODM/OBM Package Optional
Delivery Time: 5-15 business days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 50,000PCS/Month
Contact Now
Detailed Product Description
System Efficiency: 130LPW (PROLine) | 160LPW (PRIMELine) Optional LED Chips: SMD3030 / SMD5050 Optional

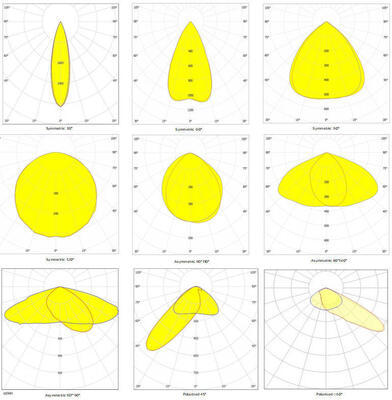

Beam Angle: 30°/60°/90°/120°Symmetric,49*21°/54*40°/90*110°/70*140°/80*140°/ 136*78 Asymmetric,45°polarized,60°polarized(developing) Housing Material: High Pressure Marine Grade Die-cast ADC12 Aluminium EN AC-43000, EN AC-43100, EN AC-43400, EN AC-44100,EN AC-47100 According To The UNE EN 1706 WF2 Level Anti-corrosion Powder Coated
Driver MTBF: 500.000H,MIL-HDBK-217F(25℃) IP (Ingress Protection Rating): IP66
Cable Entry: H05RN-F 3*1.5mm2 | H05RN-F 5*1.5mm2 (Max Section 4mm2) Smart Function: 0-10V, PWM, Time Control,DMX, Zigbee, DALI
Highlight:

150lm/w Stadium LED Sport Light

,

SMD5050 Stadium LED Sport Light

,

800W Led Basketball Court Lighting



DUALRAYS SP6 Sport Light for Stadium Lighting 160lm/w High Efficiency

DUALRAYS SP6 LED Sport Light Spe.pdf

Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights

  • LUMILEDS LUXEON High Brightness SMD5050 LEDs;
  • Meanwell ELG/HLG Driver;
  • IP66 Protection;
  • 30°/60°/90° beam angle optional;

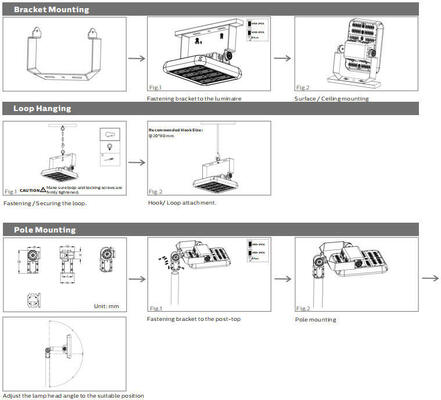

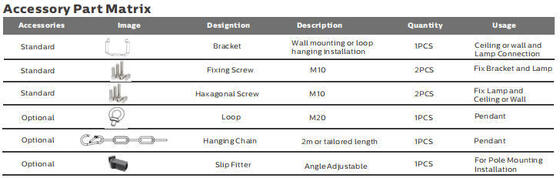

  • Adjustable mounting bracket for wall mast or suspending installation;
  • Air breather design to balance air pressure and moisture prevent;

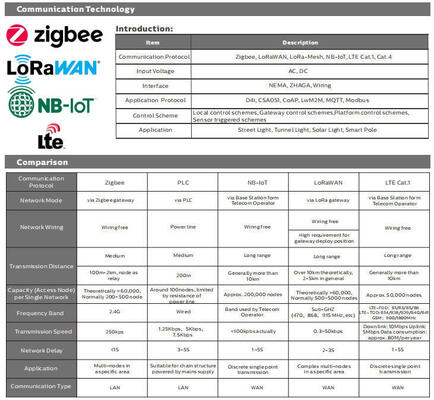

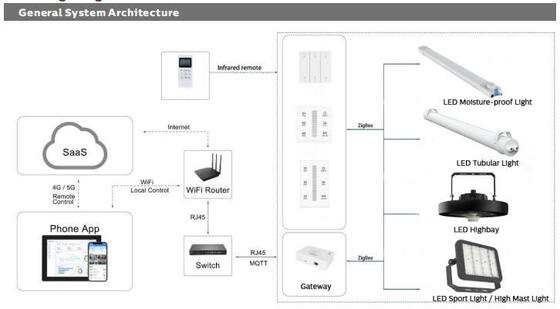

  • Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
  • Customized supported for special projects Junction box for convenient wiring from the driver box

SMD5050 150lm/w 1800W LED Stadium Floodlights DUALRAYS SP4 0

Model No.

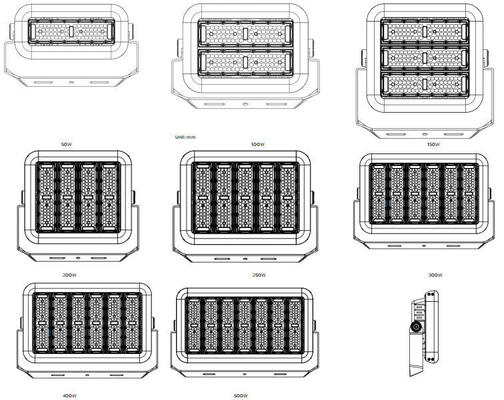

 DR-SPL300-FGXP DR-SPL400-FGXP DR-SPL600-FGXP DR-SPL800-FGXP
System Watts/W
 300W 400W 600W 800W
System Efficiency/LPW
 150LPW
Lumen Output/lm
 45.000±5% 60.000±5% 90.000±5% 120.000±5%
Rated Input Voltage/V
 AC100~277V, 50/60Hz
LEDs Light Source
 SMD5050
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 30°/60°/90°
UGR
 <25
Surge Protection
 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Meanwell ELG / HLG Optional
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+PC
Lifespan/hrs
 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available



Features:

> High Brightness LUMILEDS LUXEON SMD5050 LEDs, Meanwell HLG / ELG Driver Optional;
> Precision Integrated Die-casting Process,Excellent Thermal Conductivity；
> IP65 / IK08 Protection;
> Symmetrical 30°/60°/90° beam angle optional;
> Corrosive Resistant Powder Coated Finish；
> Multi-scale lens to create well-balanced distribution and reduce glare;
> Shield to Reduce the Light Glare;
> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;
> 360°Adjustable Supporting Fixture;
> No UV or IR and completely mercury free;
> L70/B20 @ 70.000h;
> Customized supported for special projects;
