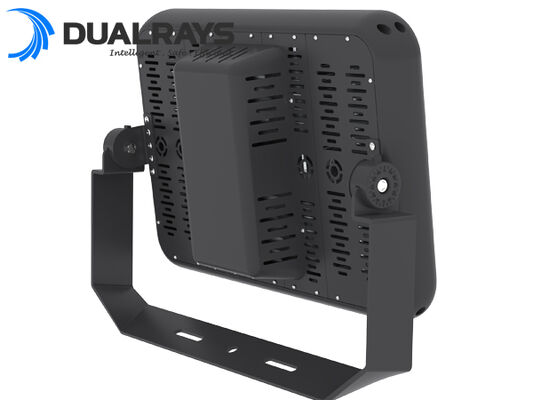

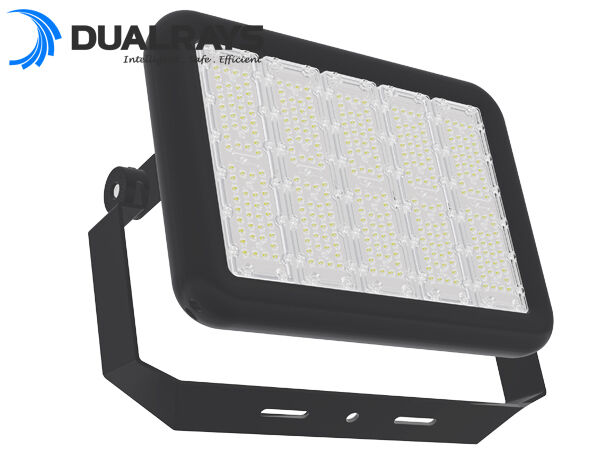

Name: Led Outdoor Sports Lighting Symmetrical 90° 150LPW 300W LED Sport Flood Light SMD5050
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-MFL250XX-7XX-BCP-XDGBPR01
Availability: InStock

Home Products LED Moisture-proof Lamp

Led Outdoor Sports Lighting Symmetrical 90° 150LPW 300W LED Sport Flood Light SMD5050

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS/OEM/ODM/OBM Optional
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB Available
Model Number:	DR-MFL250XX-7XX-BCP-XDGBPR01
Document:	DUALRAYS MFL4 LED Marine Fl...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for the latest price
Packaging Details:	DUALRAYS/OEM/ODM/OBM Package Optional
Delivery Time:	5-15 business days
Payment Terms:	T/T,L/C,Paypal
Supply Ability:	50,000PCS/Month

Contact Now

Detailed Product Description

Recommended Mounted Height:	5 - 20 Meters	Rated Input Voltage/V:	100~277VAC/ 50~60Hz \| 277~480VAC/ 50~60Hz \| AC/DC24~42V
Beam Angle:	30°/60°/90°/120°Symmetric,4921°/5440°/90110°/70140°/80140°/ 13678 Asymmetric,45°polarized,60°polarized(developing)	System Efficiency/LPW:	130LPW (PROLine) \| 160LPW (PRIMELine) Optional
LEDs Light Source:	SMD3030 / SMD5050 Optional	Certificate:	CE(EMC+LVD),RoHS,ENEC ,SAA,RCM Available

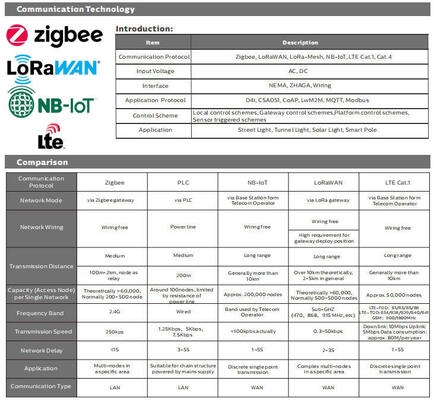

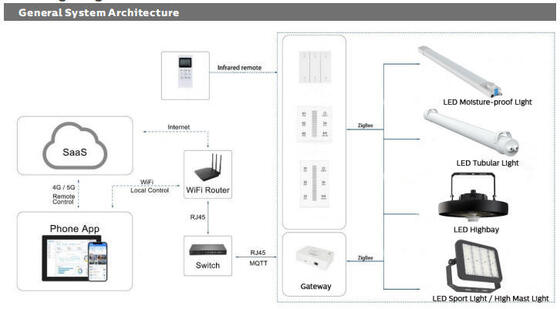

Smart Function:	0-10V, PWM, Time Control,DMX, Zigbee, DALI	Average Luminaire Useful Lifetime:	100.000 Hours (L80B10)
Highlight:	300W LED Sport Flood Light , 150LPW LED Sport Flood Light , SMD5050 Symmetrical LED Floodlights

300W LED Sport Flood Light Symmetrical 30°/60°/90° beam angle optional

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 30°/60°/90° beam angle optional;

> Aiming Device: Laser Pointer;

DUALRAYS SP6 LED Sport Light Spe.pdf

Led Outdoor Sports Lighting Symmetrical 90° 150LPW 300W LED Sport Flood Light SMD5050

> Multiple and multipurpose sports facilities and arenas

> Stadiums and Racing tracks

> Public squares

> Outdoor arenas

> Indoor sports arenas and halls

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%

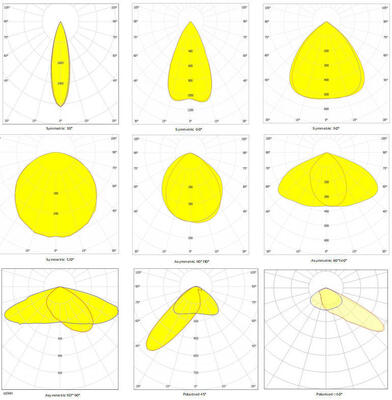

Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65

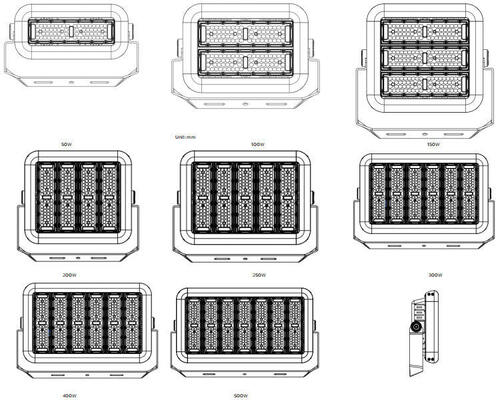

Character/Power	300W	400W	600W	800W
A / mm	Ø445	Ø445	Ø537	Ø537
B / mm	321	321	373	373

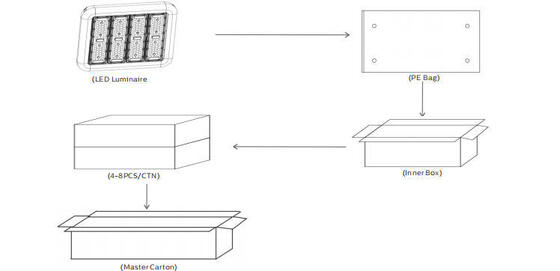

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-FGXP	12.4	610510250	13.8	1PCS/CTN
DR-SPL400-FGXP	12.9	610510250	14.7	1PCS/CTN
DR-SPL600-FGXP	25.3	890710275	27.6	1PCS/CTN
DR-SPL800-FGXP	25.9	890710275	28.8	1PCS/CTN

90 Watt 150LPW Outdoor LED Street Lights Meanwell ELG/HLG Driver 5 Years Warranty 25

1.How to explain “illuminance“?

RE: The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.

2.What’s efficacy about the light ?

RE: The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).

3.How important is IP ?

RE: Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.

4.LEDs are more expensive than other lighting options,why ?

RE: LEDs can operate as standalone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.

180W Intelligent LED Street Light,140LPW efficiency , IP66 ,5 years guarantee

Marketing Department

Tel: 0086-755-2306 6948

Fax: 0086-755-6164 1072

Zip Code: 518125
Email: sales08@dualrays.com

Add: 6th Floor,Building 10, Gangzai Industrial Park, Furong Industrial Park,Xinqiao Industrial District,Shajing,Bao‘an District,Shenzhen 518125, P.R.China
