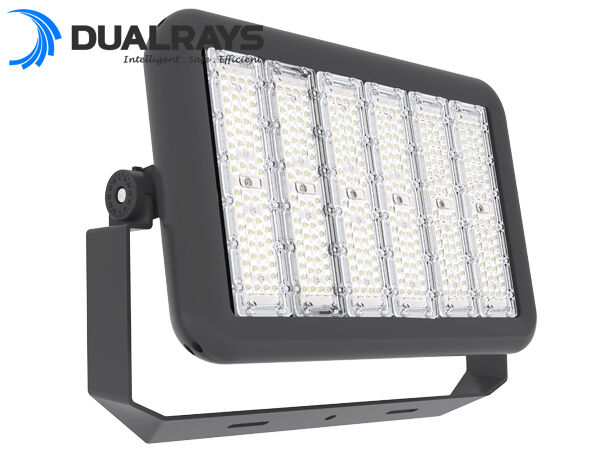

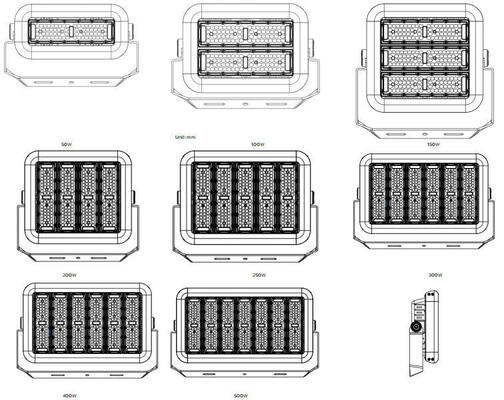

Name: CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-MFL500XX-7XX-BCP-XDGBPR01
Availability: InStock

Home Products LED Moisture-proof Lamp

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS/OEM/ODM/OBM Optional
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB Available
Model Number:	DR-MFL500XX-7XX-BCP-XDGBPR01
Document:	DUALRAYS MFL4 LED Marine Fl...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for the latest price
Packaging Details:	DUALRAYS/OEM/ODM/OBM Package Optional
Delivery Time:	5-15 business days
Payment Terms:	T/T,L/C,Paypal
Supply Ability:	50,000PCS/Month

Contact Now

Detailed Product Description

CRI (Color Rendering Index):	>70Ra For Standard (>80Ra For Higher CRI Available)	LED Driver:	Meanwell ELG / HLG Optional
Luminous Efficacy:	130LPW (PROLine) \| 160LPW (PRIMELine) Optional	LEDs:	SMD3030 / SMD5050 Optional

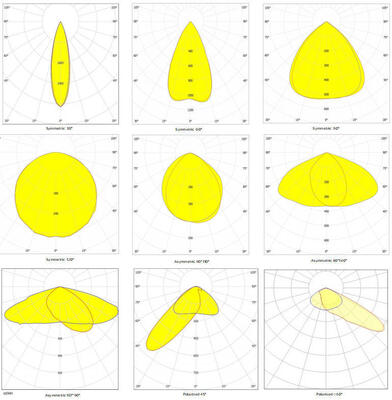

Beam Angle:	30°/60°/90°/120°Symmetric,4921°/5440°/90110°/70140°/80140°/ 13678 Asymmetric,45°polarized,60°polarized(developing)	Recommended Mounted Height:	5 - 20 Meters
Main Voltage:	100~277VAC/ 50~60Hz \| 277~480VAC/ 50~60Hz \| AC/DC24~42V	Housing Material:	High Pressure Marine Grade Die-cast ADC12 Aluminium EN AC-43000, EN AC-43100, EN AC-43400, EN AC-44100,EN AC-47100 According To The UNE EN 1706 WF2 Level Anti-corrosion Powder Coated
Highlight:	waterproof led flood lights , led yard flood lights

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area

CE RoHS 900W-1800W LED Flood Lights SMD5050 LED chips 140-160LPW for parking area

> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;

> High Brightness LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs, , Meanwell HLG / ELG Driver;

> Built-in Plug and Play Motion Sensor with Compact Structure;

> IP65 / IK08 Protection;

> Symmetrical 25°/40°/50°/90° beam angle optional;

> Surface Spray-paint Finish,Oxidation/Corrosion/Acid Resistant;

> Multi-scale lens to create well-balanced distribution and reduce glare;

> Shield to Reduce the Light Glare;

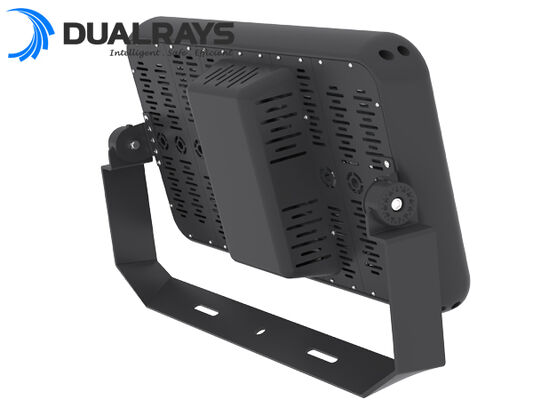

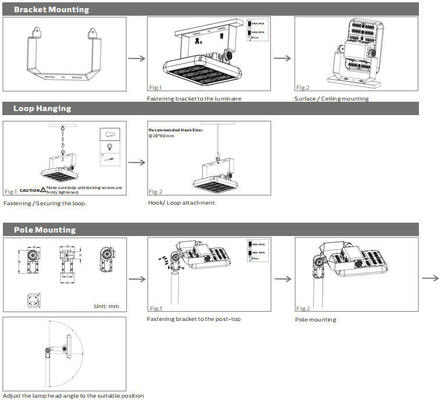

> 180°Adjustable Supporting Fixture;

> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;

> Flange Plate for Each Module for a 5°Adjustment;

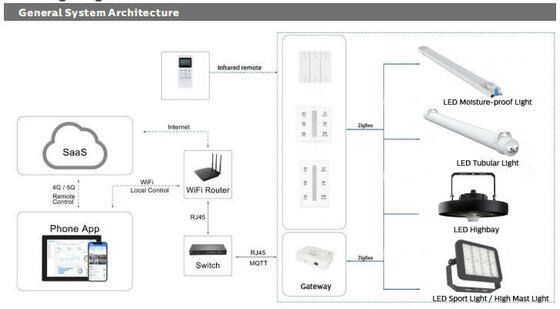

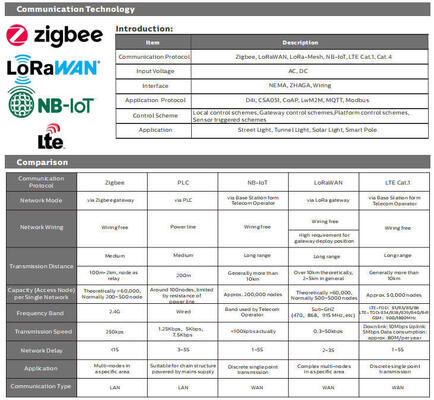

> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;

> No UV or IR and completely mercury free;

> L70/B20 @ 70.000h;

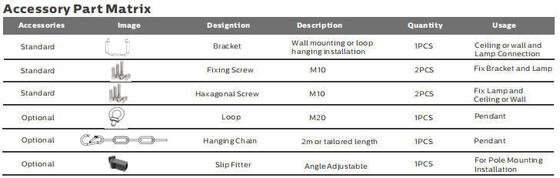

OPTIONS:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 25°/40°/50°/90°;

> Aiming Device: Laser Pointer;

> Light Glare: Shield;

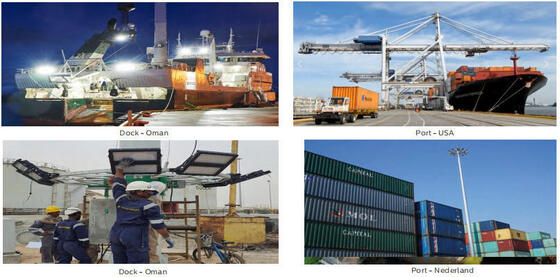

> Logistics areas (Ports)

> Stadiums and Racing tracks

> Public squares

> Apron lighting (Airports), Parking and Industrial areas

> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Model No.	DR-SPL300-DGXX	DR-SPL600-DGXX	DR-SPL900-DGXX	DR-SPL1200-DGXX	DR-SPL1500-DGXX	DR-SPL1800-DGXX
System Watts/W	300W	600W	900W	1200W	1500W	1800W
System Efficiency/LPW	130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm	48.000±5%	96.000±5%	144.000±5%	192.000±5%	240.000±5%	288.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz
LEDs Light Source	SMD3030 / SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 25°/40°/50°/90° beam angle optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-DGXX	8.5	585315260	9.7	1PCS/CTN
DR-SPL600-DGXX	17.4	625620260	18.8	1PCS/CTN
DR-SPL900-DGXX	26.1	625820260	28.2	1PCS/CTN
DR-SPL1200-DGXX	34.2	6251150260	36.5	1PCS/CTN
DR-SPL1500-DGXX	39.3	7901240260	42.5	1PCS/CTN
DR-SPL1800-DGXX	42.1	7901240260	46.3	1PCS/CTN
