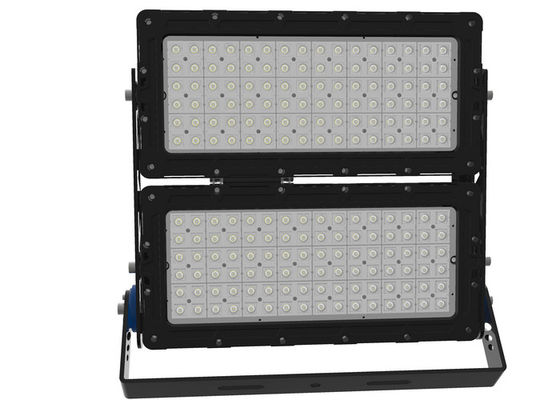

Name: Outdoor Sports Lighting 600W 150LPW Led Football Floodlights 150LPW High Efficiency
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SPL900-DGXX
Availability: InStock

Home Products LED Moisture-proof Lamp

Outdoor Sports Lighting 600W 150LPW Led Football Floodlights 150LPW High Efficiency

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPL900-DGXX

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiated
Packaging Details:	Netural Package,OEM/ODM Package Available,1PCS/CTN
Delivery Time:	5-15 Bussiness Day
Payment Terms:	T/T, L/C, Western Union,Paypal
Supply Ability:	30,000pcs/month

Contact Now

Detailed Product Description

Certificate:	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available	Finishing Color(Optional):	Black RAL9017(Standard) / White RAL9016 Optional
Lifespan/hrs:	70.000 Hrs (Ta=30℃@L70)	Rated Input Voltage/V:	AC100~277V, 50/60Hz
Surge Protection:	4~6KV SPD Built In Driver,Exterior SPD 20KV Meanwell Optional	Dimming(Optional):	1-10V, DALI,PWM,Zigbee
Highlight:	150LPW Led Football Floodlights , 600W Led Football Floodlights , Symmetrical 90° Led Sports Floodlights

600W LED Sport Flood Light Symmetrical 25°/40°/50°/90° 150LPW High Efficiency

> High Brightness LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs,Meanwell HLG / ELG Driver Optional;

> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity；

> Shield to Reduce the Light Glare;

> Laser Pointer to Assistant Installation for the Best Lamp Position Angle;

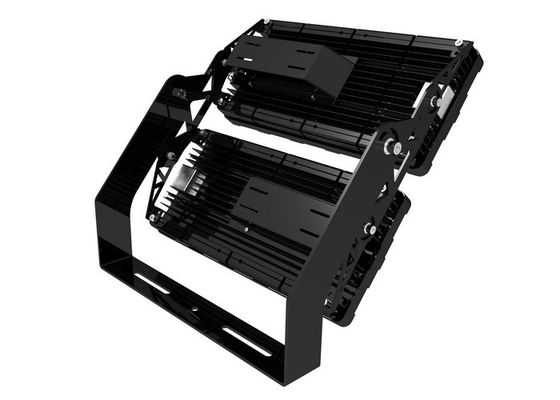

> 180°Adjustable Supporting Fixture;
> Flange Plate for Each Module for a 5°Adjustment.

> Multiple and multipurpose sports facilities and arenas

> Stadiums and Racing tracks

> Public squares

> Outdoor arenas

> Indoor sports arenas and halls

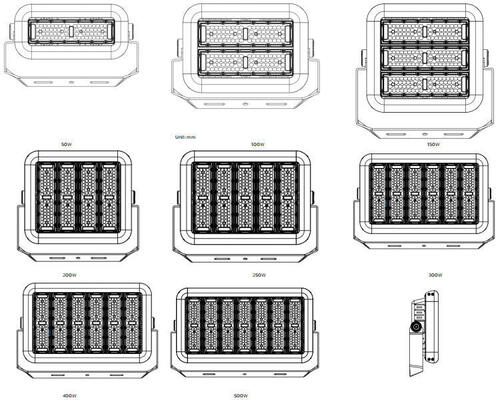

Model No.	DR-SPL300-DGXX	DR-SPL600-DGXX	DR-SPL900-DGXX	DR-SPL1200-DGXX	DR-SPL1500-DGXX	DR-SPL1800-DGXX
System Watts/W	300W	600W	900W	1200W	1500W	1800W
System Efficiency/LPW	130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm	48.000±5%	96.000±5%	144.000±5%	192.000±5%	240.000±5%	288.000±5%

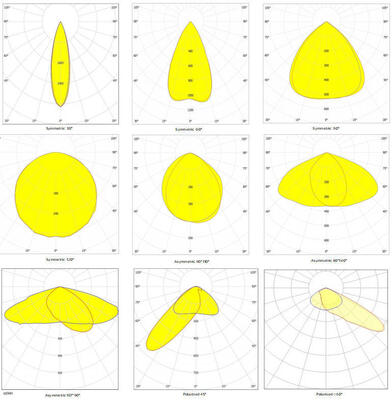

Beam Angle(Optional)	Symmetrical 25°/40°/50°/90° beam angle optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP65

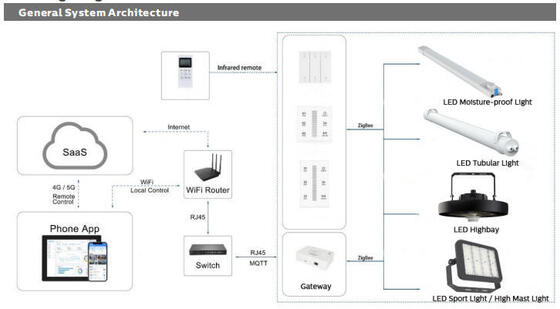

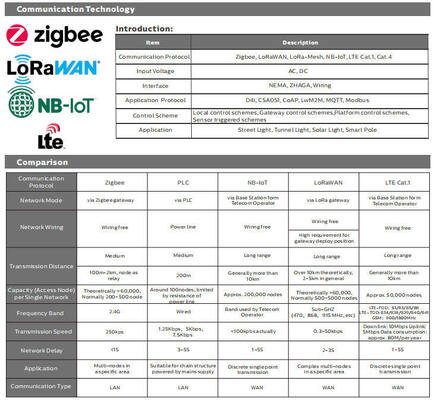

Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)

Outdoor Sports Lighting 600W 150LPW Led Football Floodlights 150LPW High Efficiency 5

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-DGXX	8.5	585315260	9.7	1PCS/CTN
DR-SPL600-DGXX	17.4	625620260	18.8	1PCS/CTN
DR-SPL900-DGXX	26.1	625820260	28.2	1PCS/CTN
DR-SPL1200-DGXX	34.2	6251150260	36.5	1PCS/CTN
DR-SPL1500-DGXX	39.3	7901240260	42.5	1PCS/CTN
DR-SPL1800-DGXX	42.1	7901240260	46.3	1PCS/CTN

Outdoor Sports Lighting 600W 150LPW Led Football Floodlights 150LPW High Efficiency 18

Outdoor Sports Lighting 600W 150LPW Led Football Floodlights 150LPW High Efficiency 21

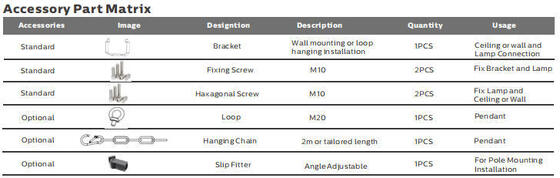

Q1: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q2: Do you offer OEM or ODM?

RE: OEM and ODM service with customers is available,various choice as below:

1) We can provide you with our present products with your own label;

2) We can modify our products as your request;

3) We can even develop totally new products based on your design;

Q3: Finished color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q4: Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand. We will discuss and propose helpful suggestion for you to find the best solution for you.

Q5: How long for the delivery time?

RE: 3 to 5 working days for samples, massive orders is within 10-15 working days according to the quantity.30 days for customized products with opening new mold.Urgent delivery time requirement is available,we will try our best to help you.

Outdoor Sports Lighting 600W 150LPW Led Football Floodlights 150LPW High Efficiency 22
