| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-SPL600-DGXX |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package,OEM/ODM Package Available,1PCS/CTN |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 30,000pcs/month |
| System Watts/W: | 300W | System Efficiency/LPW: | 130~140LPW / 150~160LPW Optional |
|---|---|---|---|
| CCT/K: | 5000K For Standard (3000K/4000K/5700K/6500K Optional) | Rated Input Voltage/V: | AC100~277V, 50/60Hz |
| Surge Protection: | 4~6KV SPD Built In Driver,Exterior SPD 20KV Meanwell Optional | LED Driver: | Meanwell ELG/HLG |
| High Light: | 130LPW Led Sports Field Lighting,300W Led Sports Field Lighting,SMD5050 Adjustable LED Floodlights |
||

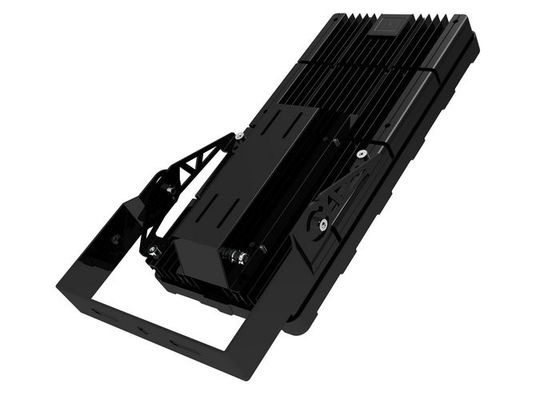

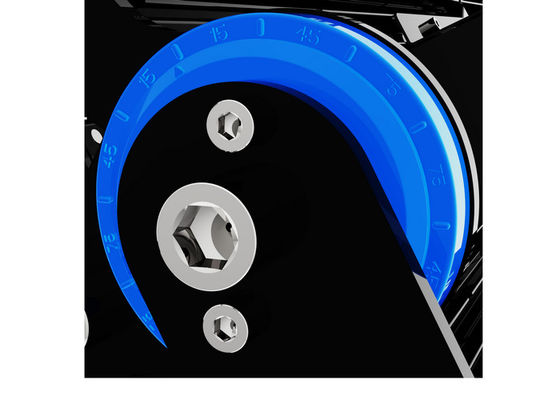

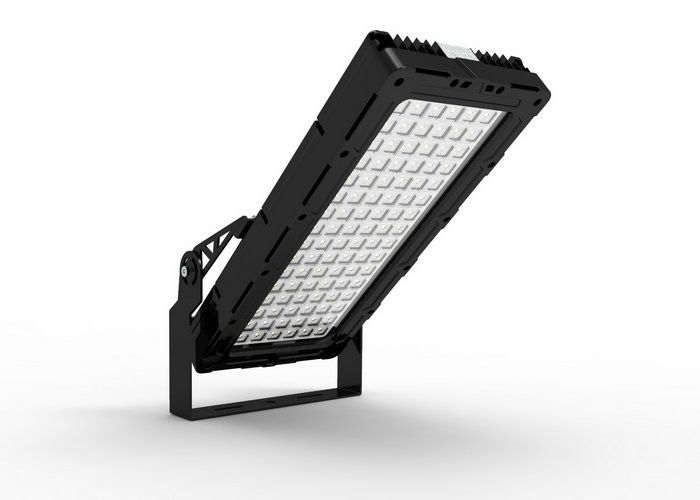

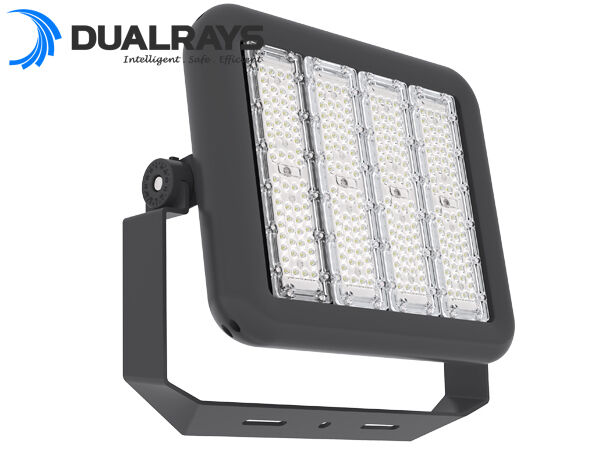

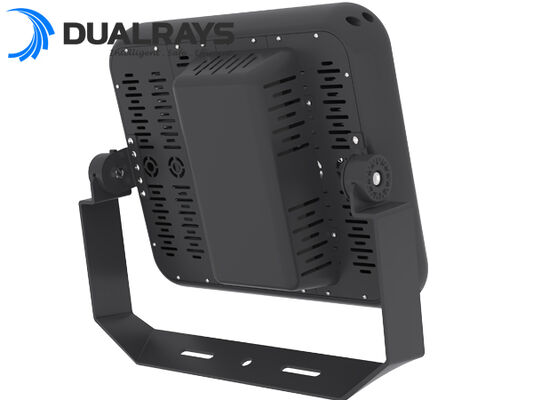

300W LED Sport Flood Light High Brightness 180°Adjustable Supporting Fixture
> Indoor sports arenas and halls
|
Model No.
|
DR-SPL300-DGXX | DR-SPL600-DGXX | DR-SPL900-DGXX | DR-SPL1200-DGXX | DR-SPL1500-DGXX | DR-SPL1800-DGXX |
|
System Watts/W
|
300W | 600W | 900W | 1200W | 1500W |
1800W
|
|
System Efficiency/LPW
|
130~140LPW / 150~160LPW Optional | |||||
|
Lumen Output (Max) /lm
|
48.000±5% | 96.000±5% | 144.000±5% | 192.000±5% | 240.000±5% | 288.000±5% |
|
Rated Input Voltage/V
|
AC100~277V, 50/60Hz | |||||
|
LEDs Light Source
|
SMD3030 / SMD5050 | |||||
|
SDCM
|
<5 | |||||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | |||||
|
Power Factor
|
>0.95 | |||||
|
THD
|
<10% | |||||
|

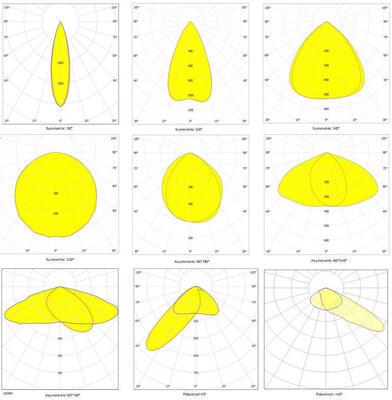

Beam Angle(Optional)
|
Symmetrical 25°/40°/50°/90° beam angle optional | |||||
|
UGR
|
<25 | |||||
|
Surge Protection
|
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||||
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-SPL300-DGXX
|
8.5
|
585*315*260
|
9.7
|
1PCS/CTN
|
|
DR-SPL600-DGXX
|
17.4
|
625*620*260
|
18.8
|
1PCS/CTN
|
|
DR-SPL900-DGXX
|
26.1
|
625*820*260
|
28.2
|
1PCS/CTN
|
|
DR-SPL1200-DGXX
|
34.2
|
625*1150*260
|
36.5
|
1PCS/CTN
|
|
DR-SPL1500-DGXX
|
39.3
|
790*1240*260
|
42.5
|
1PCS/CTN
|
|
DR-SPL1800-DGXX
|
42.1
|
790*1240*260
|
46.3
|
1PCS/CTN
|
Q1: What is the Lead time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Q2: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.
Q3: What brands of driver do you supply for luminaire fixture?
RE: Meanwell, Boke, Sosen, Moso and other brands available.
Q4. What brands of LEDs source you supply for your luminaire fixture?
RE: , Osram, Cree, Nichia,etc.
Q5.How to explain “illuminance“?
RE: The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.
Q6.What’s CCT(colour temperature) ?
RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.
