Name: Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SPL800-FGXP
Price: 573.84 USD
Availability: InStock

Home Products LED Moisture-proof Lamp

Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPL800-FGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD523.84$ to USD624.93$
Packaging Details:	Netural Package/OEM and ODM Package Available

Contact Now

Detailed Product Description

System Efficiency:

150lm/w

LED Chips:

LUMILEDS SMD5050

Beam Angle:

30/60/90°

Power Range:

300/400/600/800W

Highlight:

150lm/w Stadium LED Sport Light

SMD5050 Stadium LED Sport Light

800W Led Basketball Court Lighting

DUALRAYS SP6 Sport Light for Stadium Lighting 160lm/w High Efficiency

DUALRAYS SP6 LED Sport Light Spe.pdf

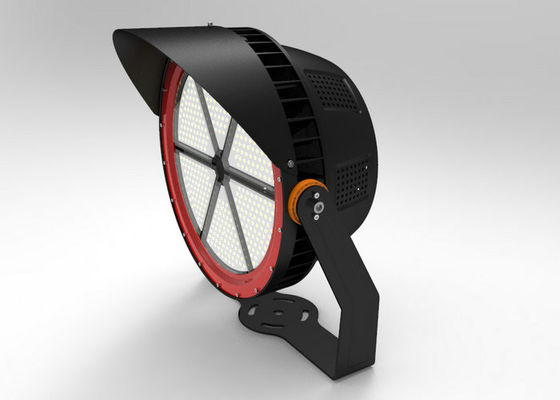

Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights 0

LUMILEDS LUXEON High Brightness SMD5050 LEDs;
Meanwell ELG/HLG Driver;
IP66 Protection;
30°/60°/90° beam angle optional;
Adjustable mounting bracket for wall mast or suspending installation;
Air breather design to balance air pressure and moisture prevent;
Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
Customized supported for special projects Junction box for convenient wiring from the driver box

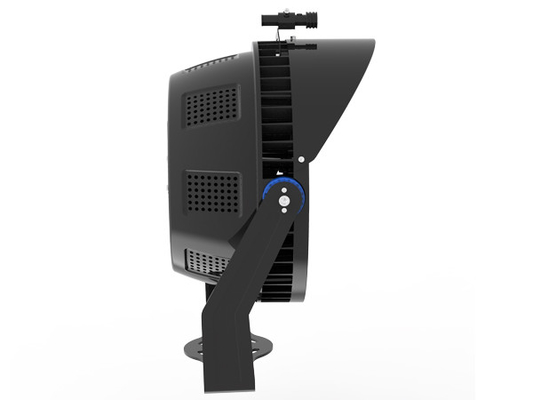

Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights 1

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Features:

> High Brightness LUMILEDS LUXEON SMD5050 LEDs, Meanwell HLG / ELG Driver Optional;

> Precision Integrated Die-casting Process,Excellent Thermal Conductivity；

> IP65 / IK08 Protection;

> Symmetrical 30°/60°/90° beam angle optional;

> Corrosive Resistant Powder Coated Finish；

> Multi-scale lens to create well-balanced distribution and reduce glare;

> Shield to Reduce the Light Glare;

> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;

> 360°Adjustable Supporting Fixture;

> No UV or IR and completely mercury free;

> L70/B20 @ 70.000h;

> Customized supported for special projects;

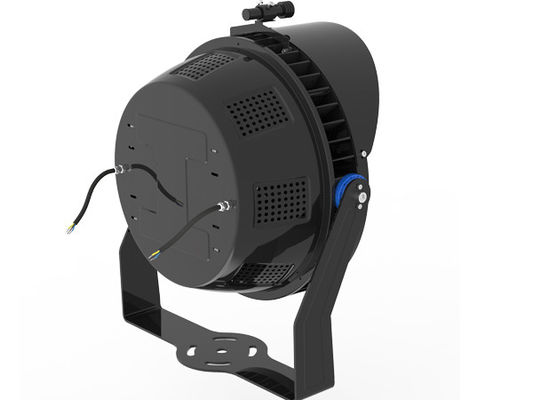

Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights 2
