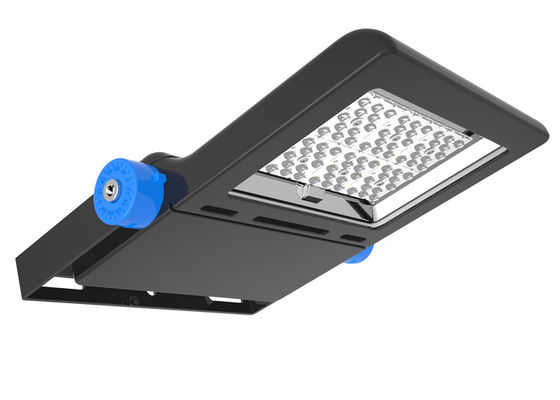

Module Design 50W High Mast Flood Light LED Outdoor Stadium Lighting European Pattern with L Shape Adjustable Bracket

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS/OEM
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-FL750-EG2

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Material:	Aluminium Alloy +PC	Input Voltage:	AC100-277V 50-60Hz
Power Efficiency:	>92%	Power Factor:	>0.95
CRI:	>70Ra (>80Ra For Option)	IP Rating:	IP66
CCT:	3000/4000/5700/6500K±200K	Certificate:	CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available
High Light:	led stadium floodlights , wireless led outdoor flood lights

Module Design 50W High Mast Flood Light LED Outdoor Stadium Lighting European Pattern with L Shape Adjustable Bracket 1

Options:

> Driver: Sosen,Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;

> Microwave Motion Sensor;

Module Design 50W High Mast Flood Light LED Outdoor Stadium Lighting European Pattern with L Shape Adjustable Bracket 2

> Airports & Harbors

> Billboard illumination

> Large recreational sports facilities

> Industrial areas & Landscape buildings

> Roundabouts and motorway junctions

Model No.	DR-FL050-CGXX	DR-FL100-CGXX	DR-FL150-CGXX	DR-FL200-CGXX	DR-FL300-CGXX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	120~125LPW
Lumen Output/lm	6.500±5%	12.500±5%	18.750±5%	25.000±5%	37.500±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Sosen,Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)	Motion Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+Toughened Glass
Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-FL050-CGXX	3.6	355350165	4.5	1PCS/CTN
DR-FL100-CGXX	3.8	355350165	4.7	1PCS/CTN
DR-FL150-CGXX	4.5	415410175	5.8	1PCS/CTN
DR-FL200-CGXX	5.7	475470195	7.3	1PCS/CTN
DR-FL300-CGXX	9.3	475470195	11.5	1PCS/CTN
