| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS(OEM/ODM/OBM Available) |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |

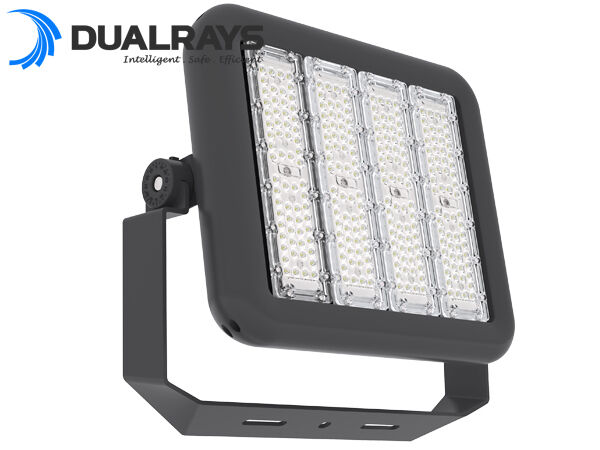

| Model Number: | DR-SFL200-EGX |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiated After Inquiry |
| Packaging Details: | Netural Package,OEM/ODM/OBM Package Available,9PCS/CTN |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000PCS/Month |

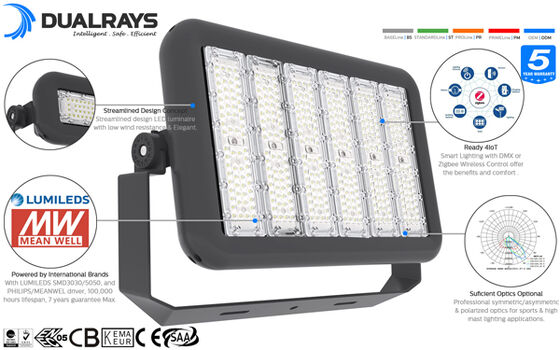

| Material: | Aluminium Alloy +PC | LEDs: | SMD3030 / SMD5050 Optional |
|---|---|---|---|
| Smart Function: | 0-10V, PWM, Time Control,DMX, Zigbee, DALI | SPD (optional): | 10kV-10kA, Type II, With LED Signal And Thermo Fuse To Disconnect Load At The End Of Life |
| IP Rating: | IP66 | CCT: | 3000/4000/5700/6500K±200K |
| Protective Class: | Class Ⅰ | ||
| Highlight: | led stadium floodlights,wireless led outdoor flood lights |
||
| General System |
| Housing Material: High pressure die-cast ADC12 aluminium EN AC-43000, EN AC-43100, EN AC-43400, EN AC-44100,EN AC-47100 according to the UNE EN 1706 standard powder coated. |
| Housing Color: Metallic Black (RAL9017), Other colors optional |
| Sealing Gaskets: Silicone foam |

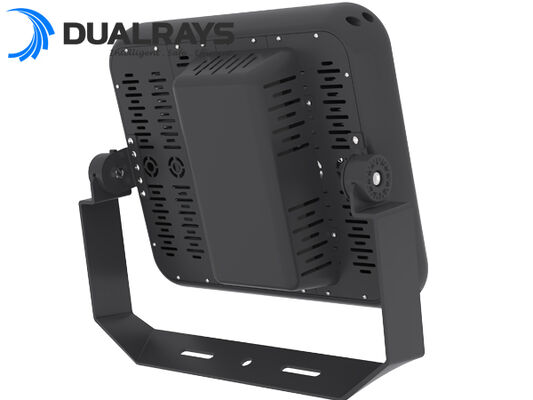

| LEDs Thermal Dissipation: Through finless ADC12 AL luminaire body, without conductive fluids. Passive convection dissipation ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste |
| Brackets: U Shape Bracket with 360°Rotatable |
| Recommended Mounted Height: 5 - 20 meters |
| Maintenance: Easy, opening with screw driver, modular concept for easy component replacement: LEDs, drivers,SPD. |
| Driver: Constant current adjustable and programmable driver. Embedded in the driver box, pre-wired inside a galvanised driver box. |
| IP (Ingress Protection Rating): IP66 |
| IK (Impact Resistance): IK10 |
| Protective Class: Class Ⅰ |
| Cable Entry: H05RN-F 3*1.5mm2 | H05RN-F 5*1.5mm2 (Max section 4mm2) |
| Surge Voltage Resistance: CM: 10kV, DM: 6kV |
| SPD (optional): 10kV-10kA, type II, with LED signal and thermo fuse to disconnect load at the end of life |

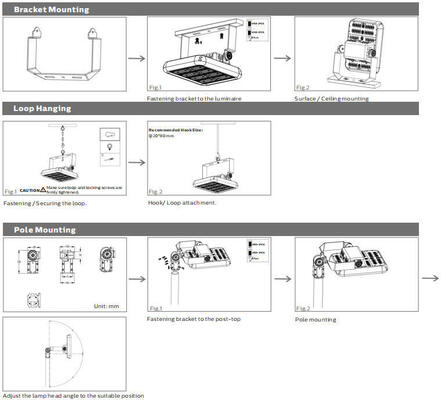

| Installation: Bracket installation, suitable for installation on the ground, wall, high mast and other solid plane |

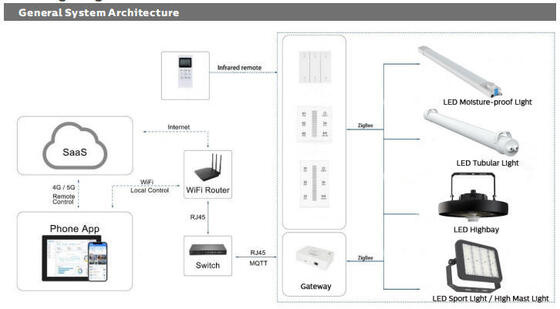

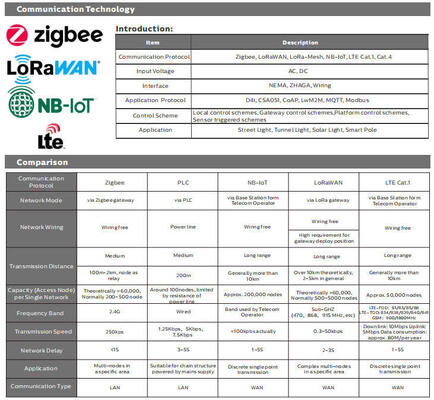

| Smart Function: 0-10V, PWM, Time control,DMX, Zigbee, DALI |
| Electrical System |
| Main Voltage: 100~277VAC/ 50~60Hz | 277~480VAC/ 50~60Hz |
| Power Factor (PF): ≥0.95 |
| Total Harmonic Distortion (THD): ＜10% |
| Output Type: Non-SELV(non-isolated) |
| Flicker Factor: <1% |
| Driver efficacy: >90% |
| Energy class: A++ IPEA>1.15 |
| Photometry System |
| LEDs: SMD3030 / SMD5050 Optional |
| CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K) |
| CRI (Color Rendering Index): >70Ra for standard (>80Ra for higher CRI available) |
| Photobiological Safety: RG0 (exempt of risk) |
| Upward light output ratio: ULOR 0% |
| Downward light output ratio: DLOR 100% |
| Glare index: Between D5 and D6 (depending on the light distribution) |
| Luminous intensity category: Between G*4 and G*6 (depending on the light distribution) |
| Luminous flux CIE nº3: >95% |
| SDCM (Standard Deviation of Color Matching): ＜6 |
|

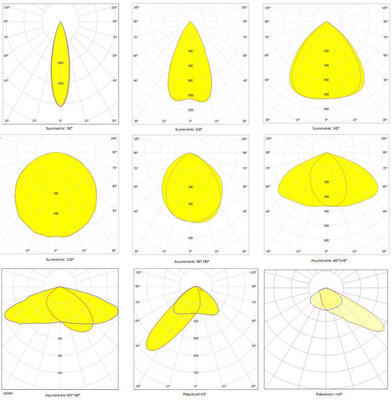

Beam Angle: 30°/60°/90°/120°Symmetric,49*21°/54*40°/90*110°/70*140°/80*140°/143*50/136*78° / 143*50°Asymmetric, 45°polarized,60°polarized(developing) |
| Average Luminaire Useful Lifetime: 100.000 hours (L80B10) |
| Lumen Maintenance at e.o.l.: >70% |
| Luminous Efficacy: 130LPW (PROLine) | 160LPW (PRIMELine) Optional |

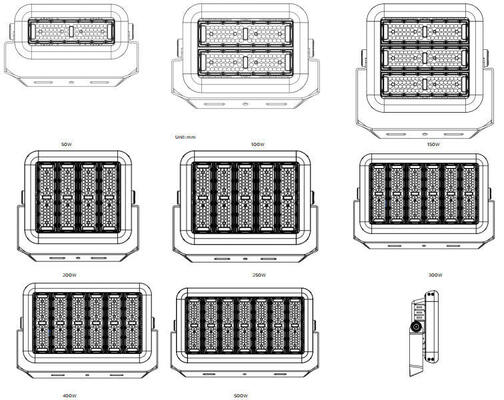

| Rated Power: 50W 100W 150W 200W 300W 400W 500W |
|
Lumens Delivered @ 5000K, CRl>70 (PRO) 6.500lm 13.000lm 19.500lm 27.000lm 39.000lm 52.000lm 65.000lm |
| (PRIME) 8.000lm 16.000lm 24.000lm 32.000lm 48.000lm 64.000lm 80.000lm |
| Operation Condition |
| Operation Temperature / Humidity: -40~ +50℃ (-40°F ~ 122°F) / 10~90% RH, not condensed |
| Storage Temperature / Humidity: -40~ +80℃ (-40°F ~ 176°F) / 10~90% RH, not condensed |
| Average LED Useful Time L80B10: ≥100.000H |
| Rated Nominal Lifetime (Tp <70℃): Up to 100,000H |
| Driver MTBF: 500.000H,MIL-HDBK-217F(25℃) |
| Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes |
| Acoustic Noise: ＜25dB (30cm disstance, Normal operation) |
| Guarantee: 5 Years (Extensible up to 7 years) |
| Certifications |
| Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |

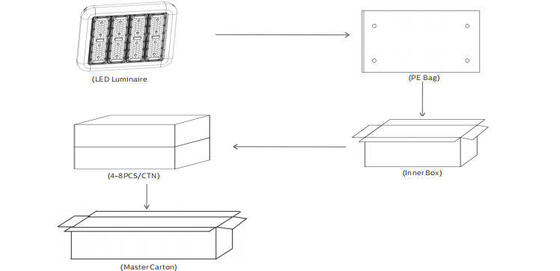

| Power/W Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton |
| 50 260x150x425mm 635x540x445mm 8PCS 3.6Kg 32.8Kg |
| 100 300x150x425mm 635x620x445mm 8PCS 5.8Kg 51.6Kg |
| 150 405x150x425mm 635x420x445mm 4PCS 7.4Kg 33.5Kg |
| 200 415x150x410mm 635x430x430mm 4PCS 9.3Kg 42.7Kg |
| 250 415x150x485mm 415x150x485mm 1PCS 13.9Kg 16.3Kg |
| 300 415x150x560mm 415x150x560mm 1PCS 16.3Kg 19.5Kg |
| 400 415x150x560mm 415x150x560mm 1PCS 19.5Kg 22.8Kg |
| 500 415x150x635mm 415x150x635mm 1PCS 22.8Kg 25.5Kg |
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty for the S4 LED Street light?
Thank you for your using DUALRAYS LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
