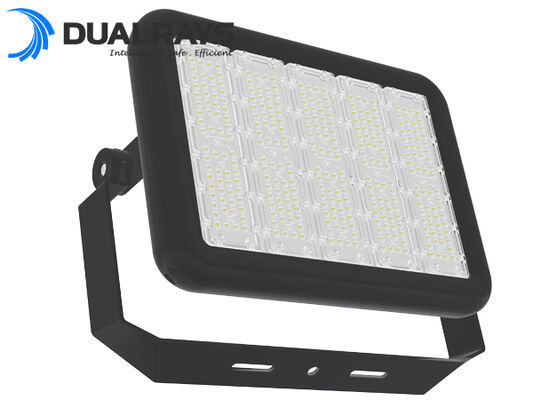

High-performance 250W LED sport light designed to replace 500W metal halide fixtures, featuring versatile sport lighting optics and smart Zigbee wireless control capabilities.

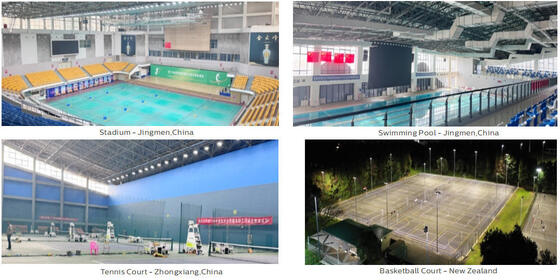

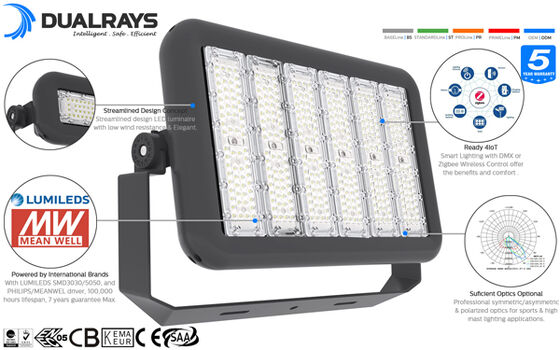

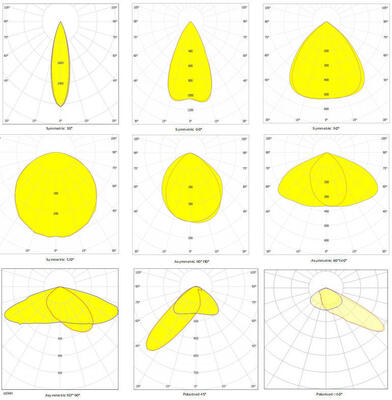

The SPL4 LED Sport Light combines modern streamline design with professional symmetric/asymmetric and polarized optics, making it ideal for sports facilities, high mast lighting, airports, ports, sports centers, and skyscraper facade lighting applications. Engineered for robustness and long outdoor service life, this luminaire delivers excellent energy-saving performance with high consistency and high-CRI white light output up to 84,000 lumens.
Equipped with detachable glare control visors and ready for smart functions including DMX512 and wireless Zigbee control, the SPL4 offers intelligent lighting solutions for demanding environments.
Sealing Gaskets: Silicone foam

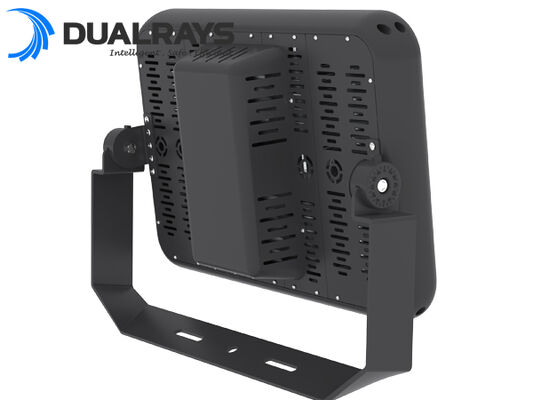

Thermal Dissipation: Finless ADC12 AL body with passive convection

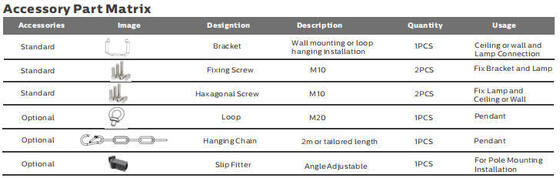

Brackets: U Shape Bracket with 360° rotation
Mounting Height: 5 - 20 meters
IP Rating: IP66
IK Rating: IK10
Surge Protection: CM: 10kV, DM: 6kV

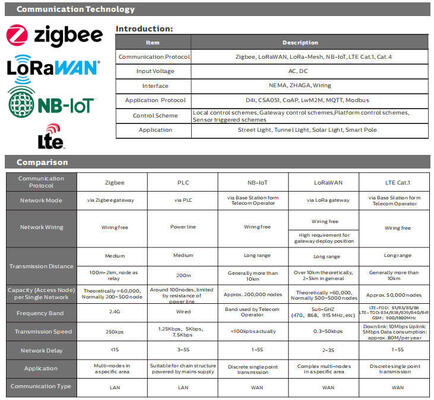

Smart Functions: 0-10V, PWM, Time control, DMX, Zigbee, DALI
Electrical System
Main Voltage: 100~277VAC/50~60Hz | 277~480VAC/50~60Hz
Power Factor: ≥0.95
THD: ＜10%
Driver Efficacy: >90%
Energy Class: A++ IPEA>1.15
Photometry System
LEDs: SMD3030 / SMD5050 Optional
CCT: 3000K | 4000K | 5000K | 5700K | 6500K
CRI: >70Ra standard (>80Ra available)
Luminous Efficacy: 130LPW (PROLine) | 160LPW (PRIMELine)
Lifetime: 100,000 hours (L80B10)
Operation Conditions
Operating Temperature: -40°C to +50°C
Vibration Resistance: 10~500Hz, 5G 12min/cycle
Warranty: 5 Years (Extensible to 7 years)
Certifications
ENEC | CE | RoHS | D-mark | KEMA-KEUR | SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium
Important Notes: Luminous flux, power, and color temperature tolerance ±5%. All parameters based on Ta=25°C, 5000K/70Ra. Visit www.DUALRAYS.com for latest product information and warranty terms.

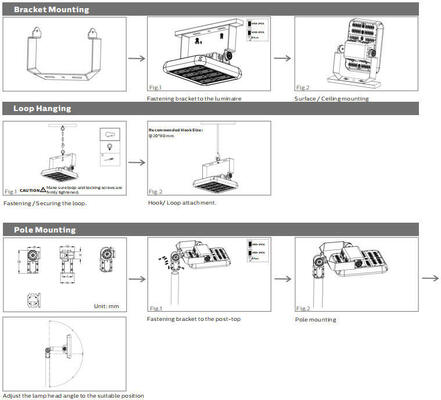

Installation & Wiring
Always turn off power before installation. Connect AC wires according to diagram. For dimming functions, compatible with 0-10V systems.

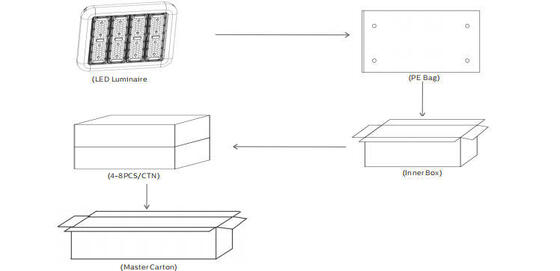

Packaging Specifications
| Power (W) | Inner Box | Outer Carton | QTY/CTN | Unit N.W (Kg) | G.W/Carton (Kg) |
|---|
| 50 | 260x150x425mm | 635x540x445mm | 8PCS | 3.6 | 32.8 |
| 100 | 300x150x425mm | 635x620x445mm | 8PCS | 5.8 | 51.6 |
| 150 | 405x150x425mm | 635x420x445mm | 4PCS | 7.4 | 33.5 |
| 200 | 415x150x410mm | 635x430x430mm | 4PCS | 9.3 | 42.7 |
| 250 | 415x150x485mm | 415x150x485mm | 1PCS | 13.9 | 16.3 |
| 300 | 415x150x560mm | 415x150x560mm | 1PCS | 16.3 | 19.5 |
| 400 | 415x150x560mm | 415x150x560mm | 1PCS | 19.5 | 22.8 |
| 500 | 415x150x635mm | 415x150x635mm | 1PCS | 22.8 | 25.5 |
Frequently Asked Questions
Q1: What is the warranty for the SPL4 LED Sport Light?
5 years warranty, extendable to 7 years. We cover shipping costs and replacement for any quality issues on our side.
Q2: What payment methods do you accept?
Western Union, PayPal, T/T, L/C. Standard bulk order payment is 30% T/T advance, 70% before shipment.
Q3: What is CRI?
CRI (Color Rendering Index) measures how accurately colors appear under the light. Higher CRI provides better color rendering.
Q4: Can I buy only the housing separately?
We supply complete luminaire fixtures only, but SKD/CKD options are available.
Q5: What are the shipping options?
Express for small orders, sea or train for bulk orders to Europe. Air freight available for urgent requirements.
Q6: Do you provide market support?
Yes, we provide comprehensive market support and customized solutions based on your specific requirements.
Q7: What dimming functions are available?
DALI, PIR, 1-10V dimming available, with built-in daylight sensor option for intelligent control.
Contact Information
Visit our official website: www.DUALRAYS.com
Email: info@DUALRAYS.com
For the latest product information, technical support, and customized solutions.
Quality Commitment: All DUALRAYS LED luminaires undergo professional testing and adhere to strict quality standards. Our dedicated after-sales service team ensures customer satisfaction throughout the product lifecycle.
