Name: 5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-TB40-NN8XX04WH-MGEUPM01
Availability: InStock

Home Products LED Tubular Light

5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Model Number:	DR-TB40-NN8XX04WH-MGEUPM01

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM/ODM/OBM Package Available
Delivery Time:	50000PCS/Month
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Driver:	PHILIPS/TRIDONIC	CCT:	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
CRI:	>80Ra/>90Ra Optioanl	Beam Angle:	120°/280°/360° Optional
Package:	Netural Package/OEM/ODM/OBM Package Available	Applications:	Underground Parking Lot/Facotory/Warehouse...
Housing:	PC/PMMA Optional	Operation Temperature:	-40℃--50℃

5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE

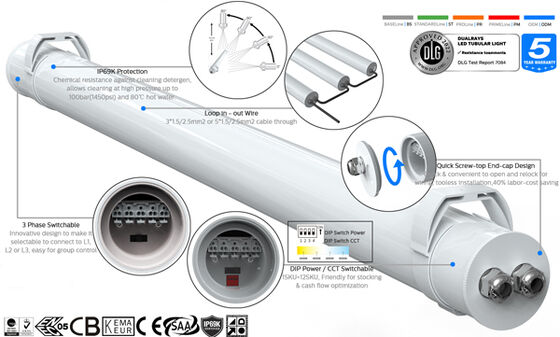

Features:

> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;

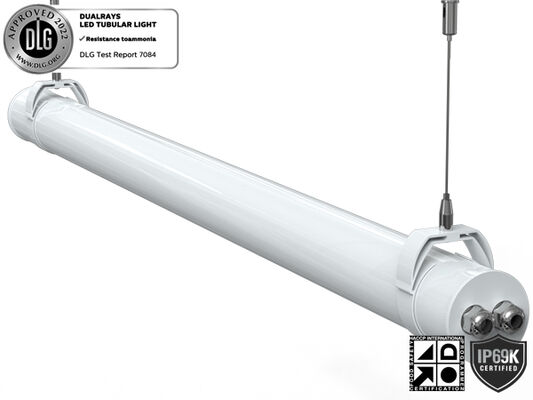

> Multiple Installations: Suspension, Wall Mounting;

> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor;

> 304/316 Stainless Steel End Cap & Bracket, corrosion-proof;

> No UV or IR and completely mercury free;

> L70/B20 @ 54.000h;

> High Brightness SAN‘AN SMD2835 LEDs, BOKE High PF Flicker-free Driver,DIP Switch Power Adjustment

Optional;

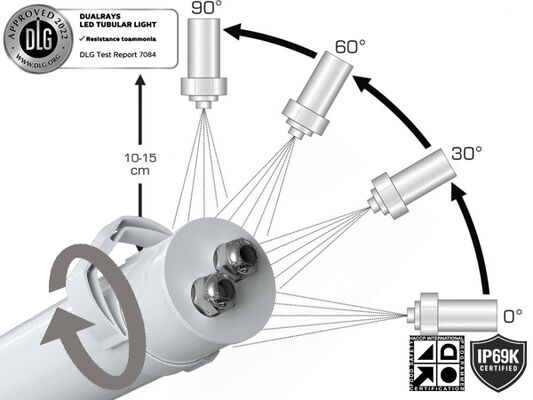

> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;

> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;

> 120°beam angle;

Efficiency:
BSELine:

PROLine: 130LPW

PRIMELine: 160LPW

Options:

> Installation : Suspension, Wall Mounting;

> Wiring: Single or double wiring;

> Driver: BOKE fixed power driver,DIP switch power adjustable driver;

> Controls and Dimming: 1-10V Dimming / DALI / Motion Sensor,Daylight Sensor;

> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;

> Replacement for fluorescent NCF;

> Cattle farm;

> Pig farm;

> Industrial and Agricultural applications;

Character/Length	2ft	4ft	5ft
A	525.9mm	1125.9mm	1425.9mm
B	590m	1190mm	1490mm
C	78.2mm	78.2mm	78.2mm

5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE 6

DALI Device

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE 15

5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE 16

5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE 17

5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE 18
Packaging Information

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-TPL020-FG2XP	12.5	67044020	13.2	9PCS/CTN
DR-TPL030-FG4XP	15.8	1270360200	17.5	9PCS/CTN
DR-TPL030-FG4XP	16.1	1270360200	18.3	9PCS/CTN
DR-TPL040-FG5XP	19.1	1570360200	20.6	9PCS/CTN
DR-TPL050-FG5XP	19.5	1570360200	21.4	9PCS/CTN

Shipment
5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE 19
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE 20
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
5ft D6 Tri Proof Light High Brightness LED 50W 8000LM IP69K IK10 160lm/w with CE 21

Marketing Department

Tel: 0086-755-2306 6948

Fax: 0086-755-6164 1072

Email: sales06@dualrays.com

Add: 3rd Floor,Building A3 | Tianrui Industrial Park| #35,Fuyuan 1st Road,Fuyong Town,Bao'an Dist | Shenzhen 518103
