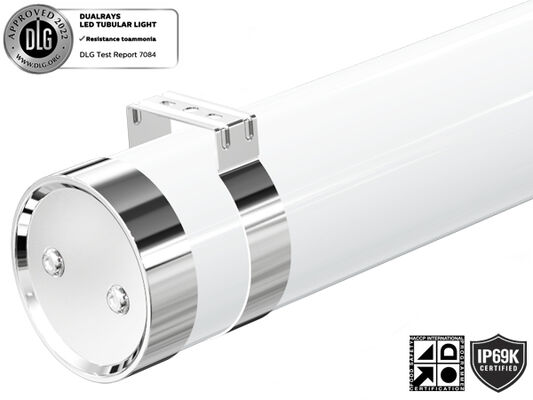

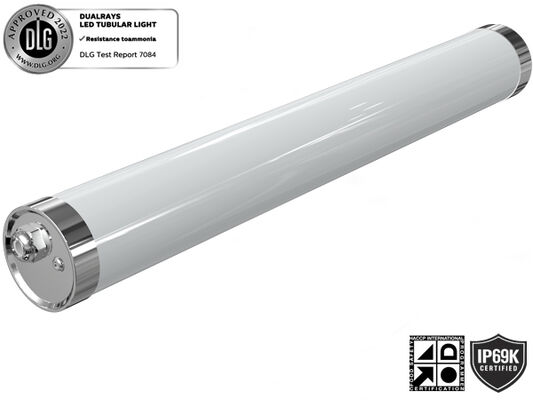

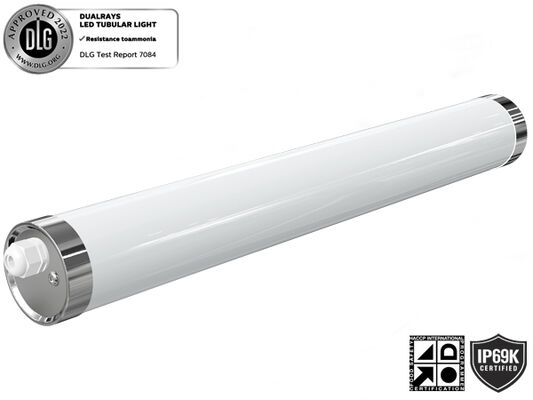

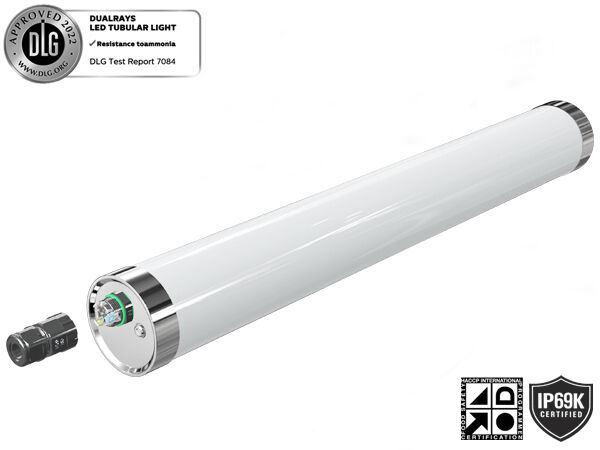

TB6 LED Tubular Light - Industrial Grade IP69K IK10 Protection
The TB6 LED Tubular Light is engineered to withstand extreme environmental conditions and perform reliably in harsh, chemically demanding environments. Constructed with premium materials and robust design, this luminaire offers exceptional resistance to ammonia, sulfur pollution, and various chemicals while withstanding most disinfectants and cleaning agents.
Featuring IP69K certification for complete dust protection and high-pressure cleaning capability, along with DLG certification for ammonia environment durability, this light is ideal for agricultural applications. It also provides safe illumination in demanding industrial settings including electroplating plants, tire manufacturing facilities, storage areas, and locations with elevated chemical concentrations. The UV-resistant material ensures reliable outdoor performance.
Key Features & Specifications
- High Brightness SAN'AN SMD2835 LEDs with LIFUD/BOKE/AGT High PF Flicker-free Driver
- DIP Switch Power Adjustment Optional
- Withstands water pressure of 100bar (1450psi) and temperatures up to 80°C
- IP69K PMMA IK06 Anti-ammonia/UV and PC IK10 Anti-UV Protection
- Multiple beam angles: 120°/200°/280°/360° optional
- Single or Double Wiring Linkable Optional

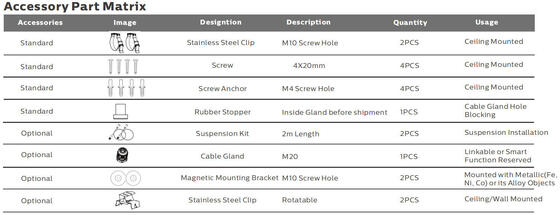

- Versatile installation: Suspension, Wall Mounting, Magnetic Holder
- Intelligent control options: 1-10V, DALI, Motion sensor, Daylight sensor, Zigbee and Emergency
- No UV or IR emissions, completely mercury-free
- L80/B10 @ 61,000 hours lifespan
- Customization available for special projects
Available Options
- Driver: TRIDONIC / BOKE Non-SELV driver
- Controls and Dimming: 1-10V, DALI, Motion sensor, Daylight sensor, Zigbee and Emergency
- Beam angles: 120°/200°/280°/360° optional
- Installation: Suspension, Wall Mounting, Magnetic Holder
- Material: PC/PMMA optional
Recommended Applications
- Replacement for fluorescent NCF lighting
- Food Processing Plants
- Chemical Facilities
- Animal Stable Warehouses
- Car Washing Facilities
- Outdoor & Indoor Locations
Technical Specifications
General System
| Housing Material |
Extruded PC/PMMA according to UNE-EN ISO 21305-1:2020 standard, UV filter conditional (IK10) |
| Diffuser Material |
Extruded PC/PMMA according to UNE-EN ISO 21305-1:2020 standard, UV filter conditional (IK10) |
| Housing Color |
White (RAL9016), Other colors optional |
| Sealing Gaskets |
Silicone foam |
| LEDs Thermal Dissipation |
Through finless 6063 AL luminaire body, without conductive fluids. Passive convection dissipation ensuring thermal contact with LED modules through high-conductivity Lead-free solder paste |
| Anti-condensation |
Pressure-balancing valve to ensure moisture release, avoid condensation and maintain IP tightness |
| Finish |
Electrostatically sprayed and sublimated in oven. Resistant to corrosion |
| Recommended Mounted Height |
2 - 8 meters |
| Maintenance |
End-cap with screw for installation |
| Driver |
Constant current, embedded in luminaire, pre-wired |
| Dimming Control |
ON-OFF | 1-10V dimming | DALI-2 | Mesh | Zigbee | Casambi |
| IP Rating |
IP67 / IP69K |
| IK Rating |
IK10 |
| Protective Class |
Class I |
| Glow Wire |
850°C (Under 30s) |
| Cable Gland |
M20 cable gland (Nylon or SS304/316 Cable Gland Optional) |
| Installation |
Ceiling mounted | Suspension | Magnetic Mounted | Rotatable Wall Mounted |

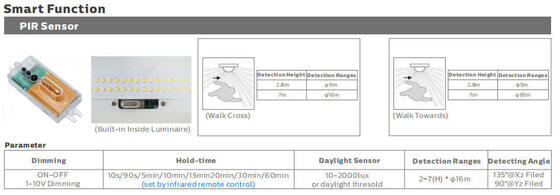

| Smart Function |
PIR Sensor | Microwave Sensor | Emergency |
Electrical System
| Through-wiring |
3*1.5mm² | 5*1.5mm² | 3*2.5mm² | 5*2.5mm² wires through for option |
| Main Voltage |
220~240VAC/ 50/60Hz, 180-264VDC |
| Power Factor (PF) |
≥0.96 |
| Total Harmonic Distortion (THD) |
＜10% |
| Output Type |
Non-SELV (non-isolated) |
| Flicker Factor |
＜1% |
| Stroboscopic Visibility Measure (SVM) |
＜0.4 |
| Perceptibility of Stroboscopic Effects (Pst) |
＜1 |
| Terminal Connection |
Quick screw-top end-cap for easy wiring |
| Luminaires Power |
B10A |
B16A |
C10A |
C16A |
| 20W |
70 |
110 |
98 |
158 |
| 30W |
46 |
74 |
66 |
104 |
| 40W |
35 |
55 |
49 |
78 |
| 50W |
28 |
44 |
39 |
62 |
| 60W |
23 |
37 |
34 |
52 |
Photometry System
| LEDs |
SMD2835 (1W) |
| CCT (Correlated Color Temperature) |
Single CCT (3000K | 4000K | 5000K | 5700K | 6500K) |
| CRI (Color Rendering Index) |
>80Ra for standard (>90Ra for higher CRI available) |
| Photobiological Safety |
RG0 (exempt of risk) |
| EEC (Energy Efficiency Class) |
A++ |
| SDCM (Standard Deviation of Color Matching) |
＜5 (SDCM<3 Optional) |
| UGR (4H, 8H) |
24.9 (Cross) 23.4 (Longitudinal) |
| Beam Angle |
120° | 280° | 360° Optional |
| Average Luminaire Useful Lifetime |
61,000 hours (L80B10) |
| Lumen Maintenance at e.o.l. |
>70% |
| Luminous Efficacy |
130LPW (PROLine) | 160LPW (PRIMELine) Optional |

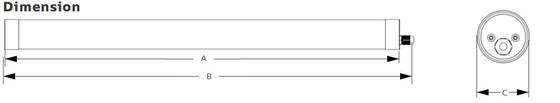

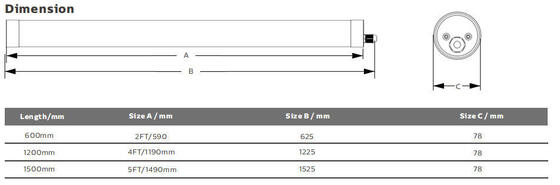

| Length |
2FT/600mm |
4FT/1200mm |
5FT/1500mm |
| Rated Power |
20W |
30W |
30W |
| Lumens Delivered @ 5000K, CRI>80 (PRO) |
2,600lm |
3,900lm |
3,900lm |
| Lumens Delivered @ 5000K, CRI>80 (PRIME) |
3,200lm |
4,800lm |
4,800lm |
Operation Conditions
| Operation Temperature / Humidity |
-20~ +60℃ (-4°F ~ 140°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity |
-40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed |
| Average LED Useful Time L90B10 |
≥0.96 |
| Rated Nominal Lifetime (Tp <70℃) |
Up to 100,000H |
| Driver MTBF |
500,000H, MIL-HDBK-217F(25℃) |
| Vibration Resistant |
10~500Hz, 5G 12min / 1cycle, period for 72min. Each along X,Y,Z axes |
| Acoustic Noise |
＜25dB (30cm distance, Normal operation) |
| Guarantee |
5 Years |
Certifications
| Global Certificate |
ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives |
EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives |
EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives |
IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRI>80.
* Lighting beam, light intensity distribution and light efficiency examined in accordance with EN ISO 17025:2005 norm for EN13032 norm series and LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes indicated on product data sheet.
* Values may be subject to change due to LED binning.
* Parameters in data sheet given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra
Installation Methods

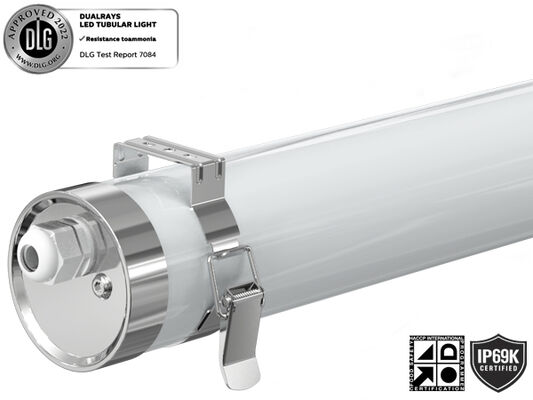

Ceiling Mounted
Drill screw hole on the ceiling. Fix the clip into ceiling with screw. Click into the luminaire by hand tightly.

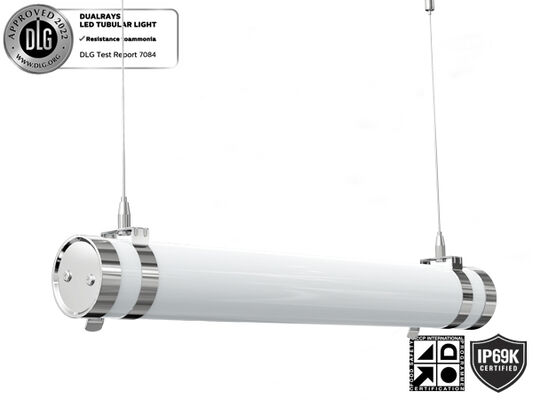

Suspension
Drill screw hole on the ceiling. Click into the luminaire by hand tightly. Install and fix the mounting hook into ceiling and the clip, then adjust the length of suspension kits.
Rotatable Ceiling Mounting
Drill screw hole on the ceiling. Click into the luminaire with clips. Rotate the angle on demand.

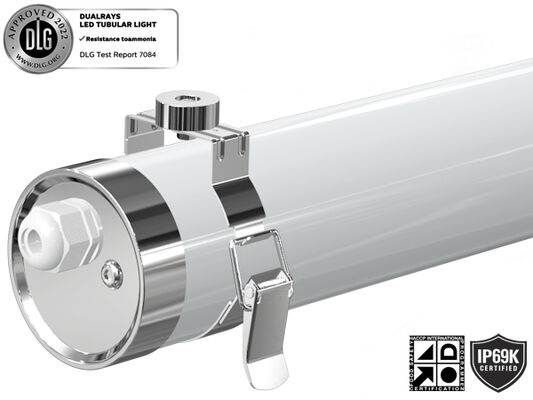

Magnetic Mounting
Take out the 2PCS clips with magnetic rings from the component package. Click into the luminaire with magnetic clips with hand tightly. Fix the luminaire on metallic (Fe, Ni, Co) or its alloy objects surface as required.

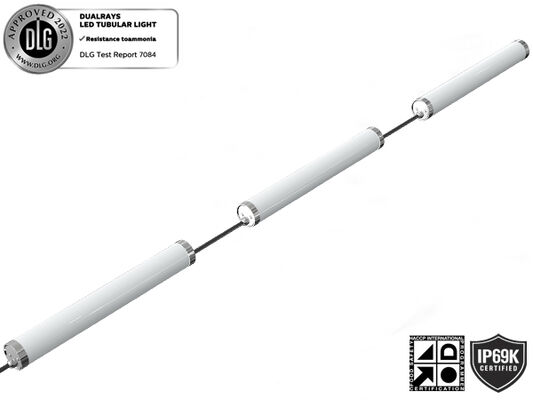

Linkable Connection
Packaging Specifications
| Length/mm |
Inner Box |
Outer Carton |
QTY /CTN |
Unit N.W |
G.W/Carton |
| 600 |
733x93x93mm |
748x294x304mm |
9PCS |
1.4Kg |
13.2Kg |
| 1200 |
1333x93x93mm |
1348x294x304mm |
9PCS |
2.1Kg |
19.8Kg |
| 1500 |
1633x93x93mm |
1648x294x304mm |
9PCS |
2.8Kg |
26.4Kg |
Installation & Safety Instructions
- To avoid electric shock, ensure power supply is turned off before installation
- Lamp should be installed and operated by qualified electrician or technician in accordance with National Electrical Code and corresponding local codes
- Unpack and examine lamp carefully, report any damage and save all packing materials if any portion was damaged during transportation
- If the lamp is damaged, do not use it!
Manufacturer Statement
According to International Standard of LED luminaire, DUALRAYS formally claims that DUALRAYS LED Highbay Light (UFO Highbay) series products are only allowed to be applied to indoor or semi-outdoor neutral environment. DUALRAYS promises full warranty for the products. Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without official confirmation from the manufacturer. If any misapplication occurs, the warranty policy is no longer guaranteed.
Company Capabilities
- Professional Team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system
- Reliable Brand: Established stable long-term cooperation with Europe customers, warehouse in Netherlands for better service
- DIALux Simulation: Our engineering team provides simulation services based on your application parameters
- Quality Standards: All LED luminaries comply with CE, RoHS standards with TUV, ENEC, VDE, SAA, C-Tick, LM79, LM80 certifications
Shipping Information
For small orders, express shipping is recommended. For bulk orders, sea or train shipping (Europe destination) is most cost-effective but takes longer. For urgent orders, we suggest air freight to airport plus our shipping partner delivery to your door.
Frequently Asked Questions
Q1: What is the warranty for the TB7 LED Tubular light?
RE: 5 years warranty. If any quality problems on our side occur during this period, we will cover shipping costs and replacement.
Q2: What payment methods do you accept?
RE: We accept multiple payment methods including Western Union, PayPal, T/T, L/C. Standard payment for bulk orders is T/T: 30% in advance, 70% balance before shipment. Bank information provided in PI.
Q3: What is CRI?
RE: CRI (Color Rendering Index) indicates how accurately colors appear under the light. Higher CRI provides better color accuracy at higher cost. Standard CRI is >80Ra, with 90Ra available at higher cost.
Q4: Can I only buy the housing separately?
RE: We only supply complete luminaire fixtures, but SKD/CKD (Semi-Knocked Down/Completely Knocked Down) options are available.
Q5: Is there cheap shipping cost to import to our country?
RE: For small orders, express shipping is recommended. For bulk orders, sea or train shipping (Europe destination) is most cost-effective. For urgent orders, air freight to airport plus delivery service is suggested.
Q6: Can we get support if we have our own market position?
RE: Please inform us of your detailed market requirements. We will discuss and propose helpful suggestions to find the best solution for you.
Q7: What dimming functions are available?
RE: DALI, PIR, 1-10V dimming available. Built-in daylight sensor available for intelligent control options.
Q8: What are the applications of your TB7 LED Tubular light?
RE: Applications include: Replacement for fluorescent NCF; Food Processing Plants; Chemical Facilities; Animal Stable Warehouses; Car Washing Places; Outdoor & Indoor Locations.
