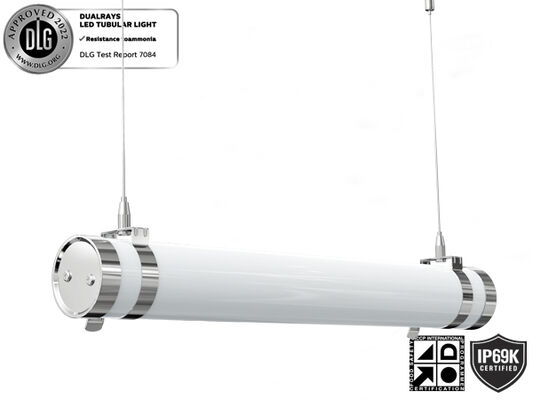

Name: 5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-TB60-NN8XX05WH-MFEUPM01
Availability: InStock

Home Products LED Tubular Light

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE, ROHS, TUV/GS, LM79, LM80
Model Number:	DR-TB60-NN8XX05WH-MFEUPM01

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM/ODM/OBM Package Available
Delivery Time:	5-15 bussiness days
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Driver:	PHILIPS/TRIDONIC/BOKE	LED Source:	SMD2835
CCT:	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K	CRI:	>80Ra For Standard (>90Ra For Higher CRI Available)
Beam Angle:	120°/280°/360° Optional	Installation:	Suspension, Wall Mounting, Magnetic Holder
Housing:	PC/PMMA Optional	Operation Temperature:	-40℃--50℃

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report

Features:

> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;

> Multiple Installations: Suspension, Wall Mounting;

> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor;

> 304/316 Stainless Steel End Cap & Bracket, corrosion-proof;

> High Brightness SAN‘AN SMD2835 LEDs, BOKE High PF Flicker-free Driver,DIP Switch Power Adjustment

Optional;

> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;

> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;

> No UV or IR and completely mercury free;

> 120°beam angle;

> L70/B20 @ 54.000h;

Efficiency:
BSELine:

PROLine: 130LPW

PRIMELine: 160LPW

Options:

> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;

> Installation : Suspension, Wall Mounting;

> Wiring: Single or double wiring;

> Driver: BOKE fixed power driver,DIP switch power adjustable driver;

> Controls and Dimming: 1-10V Dimming / DALI / Motion Sensor,Daylight Sensor;

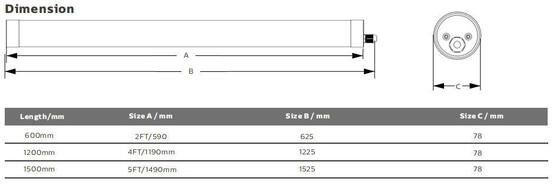

Character/Length	2ft	4ft	5ft
A	525.9mm	1125.9mm	1425.9mm
B	590m	1190mm	1490mm
C	78.2mm	78.2mm	78.2mm

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report 5

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report 9

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report 10

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report 11

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report 12
Packaging Information

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-TPL020-FG2XP	12.5	67044020	13.2	9PCS/CTN
DR-TPL030-FG4XP	15.8	1270360200	17.5	9PCS/CTN
DR-TPL030-FG4XP	16.1	1270360200	18.3	9PCS/CTN
DR-TPL040-FG5XP	19.1	1570360200	20.6	9PCS/CTN
DR-TPL050-FG5XP	19.5	1570360200	21.4	9PCS/CTN

Shipment
5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report 13
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report 14

Q1: What are the applications of your D1 tri-proof light?

RE:Our tri-proof light can be applied in Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations etc.

Q2: Can I start from 1pcs sample?

RE: Yes, 1pcs sample order for testing welcomed.

Q3: What is the production time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website or inquire us to send.

Q5: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q6: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Welcome to contact us for more information.

Let's meet DUALRAYS from below pictures!

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report 15

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report 16

Why DUALRAYS?

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

5FT D6 Tri Proof Light 40W 50W High Brightness 8000LM IP69K IK10 with CE report 17

ISO9001:2008 ISO14001:2004

The best quality innovation award Shenzhen Hi-tech Enterprise

Marketing Department

Tel: 0086-755-2306 6948

Fax: 0086-755-6164 1072

Contact person: Vera Fu

Email: sales06@dualrays.com

Mobile/ Whatsapp:0086-13018674100

Add: 3rd Floor,Building A3 | Tianrui Industrial Park| #35,Fuyuan 1st Road,Fuyong Town,Bao'an Dist | Shenzhen 518103
