| Place of Origin: | China,shenzhen |
| Brand Name: | DUALRAYS |
| Certification: | CE |
| Model Number: | D5 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1 |
| Packaging Details: | Cartons |
| Delivery Time: | 7 |
| Payment Terms: | T/T |
| Supply Ability: | 99999 |
| Item Type: | LED Tri Proof Light | Warranty(years): | 5 |
|---|---|---|---|
| Color Temperature(cct): | 2700K-6500K | Beam Angle: | 120 Degree |
| High Light: | SMD2835 LED Tri Proof Light,120 Degree Triproof Led Tube Light,Triproof Led Tube Light 5ft |
||

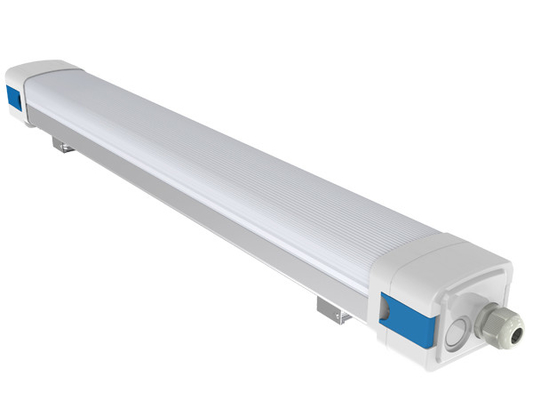

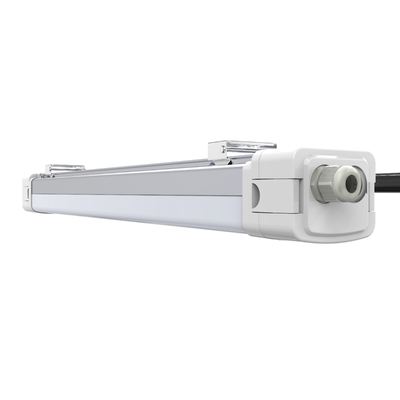

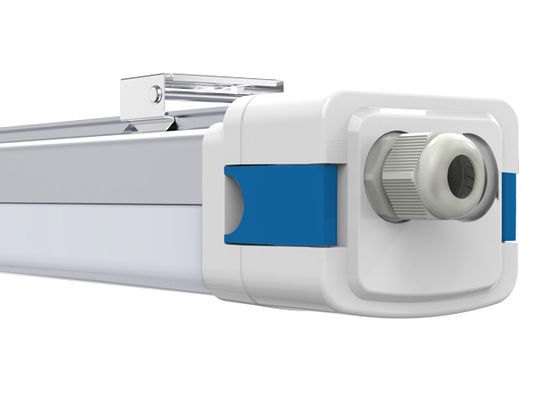

DUALRAYS Tri Proof Light For Warehouse Gymnasiums Education Healthcare Parking Lot Auto Dealership
General Characteristics:
|
Character/Length
|
2ft
|
4ft
|
5ft
|
 |
|
A
|
605mm
|
1205mm
|
1505mm
|
|
|
B
|
630mm
|
1230mm
|
1530mm
|
|
|
C
|
84mm
|
84mm
|
84mm
|
|
|
D
|
69mm
|
69mm
|
69mm
|
Features:
Input Voltage: AC200~240V 50/60Hz(AC100~277V 50/60Hz Optional)
Material: PC
CCT: WW: 3000±200K NW:4000±200K DW: 5000±200K CW: 5700±200K CW: 6500±200K
CRI: >80Ra (>70Ra Optional)
Beam Angle: 120°
Features: IP65 / IK08 Protection
Lifespan: L70/B20 @ 50.000h
Driver: DUALRAYS High PF Flicker-free Driver
Operation Temp: -40°C to + 50°C(-40°F to 122°F)

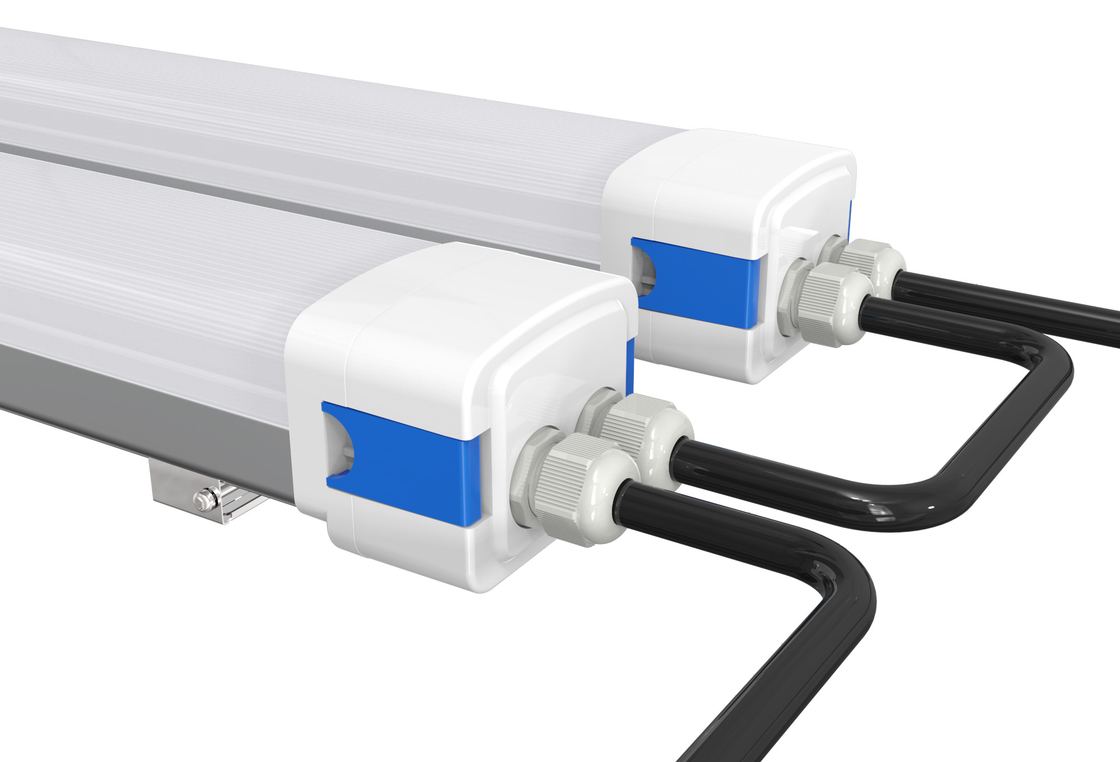

Installation:Suspension/Ceiling Mounting, Single/ Double Wiring
Optional: 1-10V Dimming/Sensor/Emergency/Plug
Report: LM80/TM-21/LM79/TM21/ISTMT/LCP/IES/LDT/CE(EMC+LVD),RoHS,ENEC ,SAA,RCM
Application:
Specification:
DUALRAYS D5 LED Triproof Light Spe.pdf
| Model No. | DR-TP020-EG2XPX | DR-TP040-EG4XPX | DR-TP050-EG4XPX | DR-TP060-EG5XPX | DR-TP080-EG5XPX |
| System Watts/W | 20W | 40W | 50W | 60W |
80W
|
| System Efficiency/LPW | 130LPW / 160LPW Optioanl | ||||
| Lumen Output/lm | 2.600/3.200±5% | 5.200/6.400±5% | 6.500/8.000±5% | 7.800/9.600±5% | 10.400/12.800±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
| LEDs Light Source | SMD2835 | ||||
| SDCM | <6 | ||||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
| CRI/Ra | >80Ra (>70Ra for Option) | ||||
| Power Factor | >0.91 | ||||
| THD | <10% | ||||
| Beam Angle(Optional) | 120° | ||||
| UGR | <22 | ||||
| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional | ||||
| IP Rating | IP65 | ||||
| IK Level | IK08 | ||||
| Dimming(Optional) | 1-10V, DALI,Zigbee | ||||
| Sensor(Optional) | Daylight sensor/Microwave Sensor | ||||
| Emergency(Optional) | 5W@3 Hours or Customized | ||||
| Protection Class | ClassⅠ | ||||
| Finishing Color(Optional) | White RAL9016 Optional | ||||
| Material | AL+PC | ||||
| Lifespan/hrs | 62.000 Hrs (Ta=30℃@L70) | ||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
| Installation(Optional) | Suspension / Ceiling Mounting Optional | ||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
