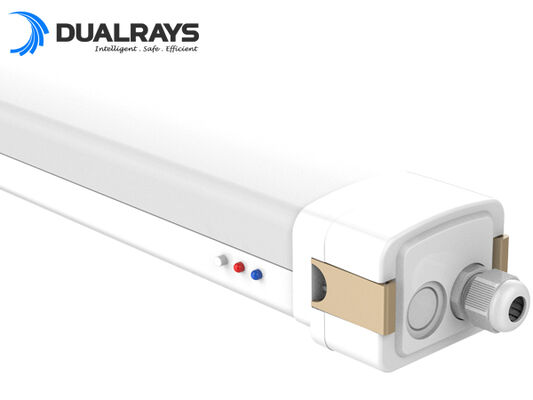

Name: Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: D5
Availability: InStock

Home Products LED Moisture-proof Lamp

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	D5

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS/1CTN
Price:	Negotiated
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	40W	Main Voltage:	220~240VAC/ 50/60Hz, 180-264VDC
Total Harmonic Distortion (THD):	＜10%	CCT:	3 CCT Optional (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K)
CRI:	>80Ra As Standard(>90Ra Optional)	Beam Angle:	120°
IP Rating:	IP65	Lifespan:	L80/B10 @ 61.000 Hrs;
Protective Class:	Class Ⅰ	Cable Gland:	M20 Cable Gland (Nylon Or SS304/316 Cable Gland Optional)
Lumen Maintenance At E.o.l.:	>70%	Global Certificate:	ENEC \| CE \| RoHS \| D-mark \| KEMA-KEUR Listed, SAA \| C-Tick \| RCM \| CB \| ETL/CETL \| DLC Premium
Highlight:	explosion proof led lights , dust proof light fixture

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 0

Dualrays D5 Series 2ft 30W LED Tri Proof Light--Detailed Product Description

Model No.:	D5 Series	Warranty:	5 Years
Power:	30W	Protection:	IP66,IK10
Energy efficient:	160 lm/w	Beam Angle:	120°
Lumin Output/lm	4,800±5%	Material:	Al+PC

Dualrays D5 Series 2ft 30W LED Tri Proof Light--Features

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs, up to 160 lm/w energy efficient;

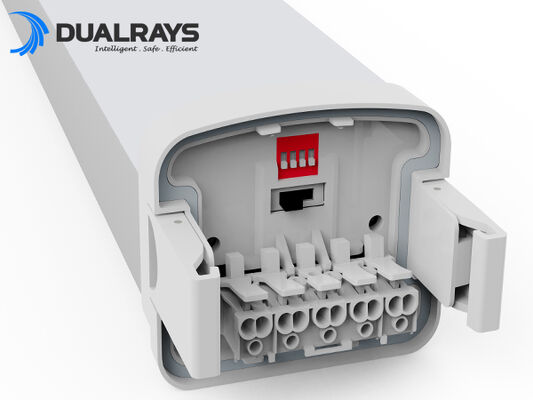

> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;

> Single or Double wiring;

> IP65/IP66 and IK10 for all industrial areas of application;

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;

> Multiple Link with double wiring;

> Completely mercury free and no UV or IR;

> L80/B10 @ 50.000h;

> 5 years warranty;

Dualrays D5 Series 2ft 30W LED Tri Proof Light--Options

> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

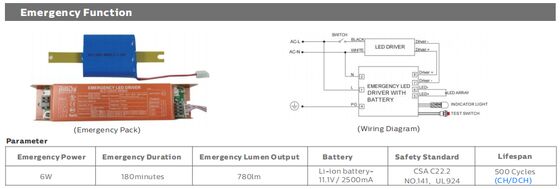

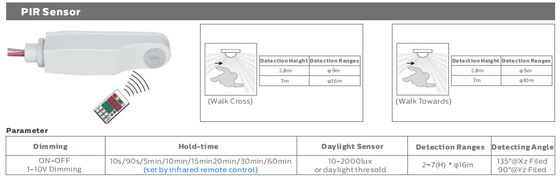

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.

> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

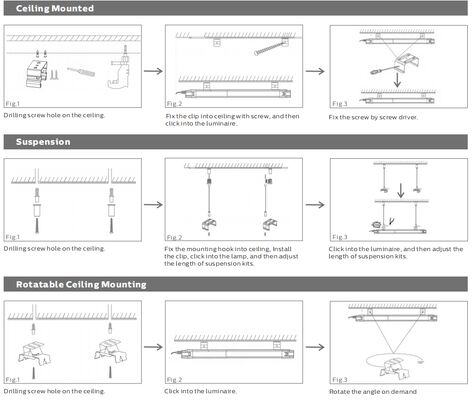

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.

> Customized supported for special projects.

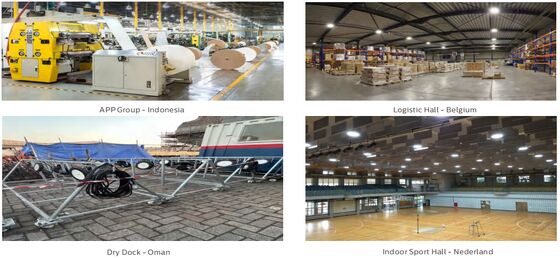

* Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

DALI Device
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 12

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 25

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 26

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 27

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 28

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 29

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 30

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 31

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 32

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 33

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 34

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 35

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 36

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output 37
