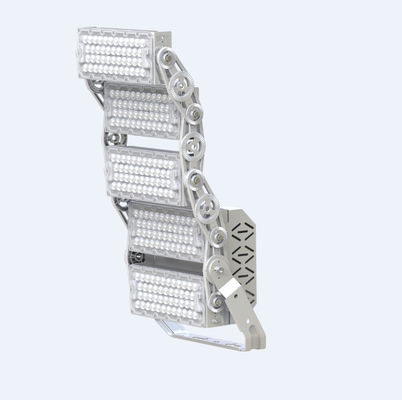

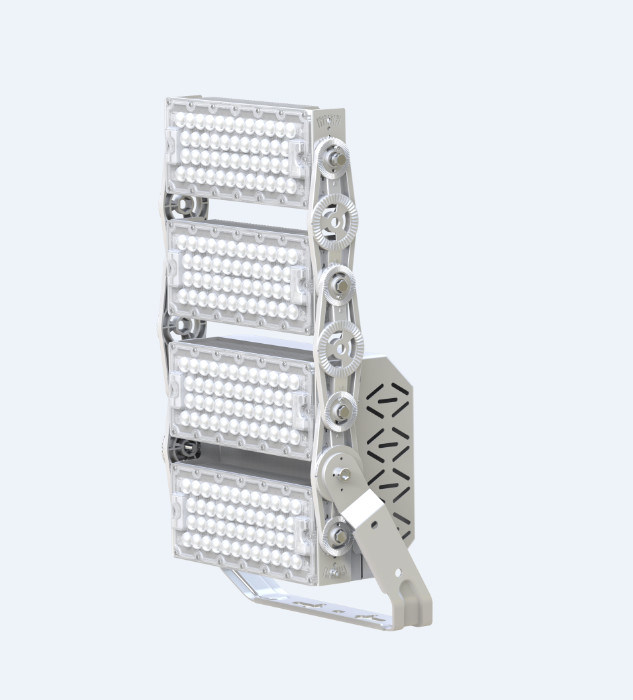

150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection

150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection

  • 150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection
  • 150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection
  • 150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection
  • 150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection
  • 150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection
150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL400-DG1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiated After Inquiry
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Material: Aluminium Alloy +PC Warranty: 5 Years
System Efficiency: 150LPW IP Rating: IP66
IK Level: IK 08 Driver: Meanwell XLG/ELG/HLG(Retangle),Sosen
Controls And Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming For Option Health: No UV Or IR And Completely Mercury Free
Lifespan: L70/B20 @ 70.000h
High Light:

400W led stadium flood lights

,

PC Reflector led stadium flood lights

,

PC Reflector led stadium lighting

150LPW 400W LED Floodlight Stadium Lights Superior PC Reflector-Optic For Low Glare Protection



Model No. DR-FL400-DGXP
System Watts/W 400W
System Efficiency/LPW 150LPW
Lumen Output/lm 60.000±5%
Dimming(Optional) 0/1-10V/PWM/DALI/Zigbee
Installation(Optional) Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting
Certificate CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available
Finishing Color(Optional) Black RAL9017 / White RAL9016
Protection Class ClassⅠ
LED Driver Meanwell XLG/ELG/HLG,Sosen
Surge Protection 6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Rated Input Voltage/V AC100~277V 50/60Hz
LEDs Light Source SMD3030
SDCM <6
CCT/K 3000K/4000K/5000K/5700K/6500K



Efficiency:
STANDARDLine:
PROLine: 150LPW
PRIMELine:

Features:
* LUMILEDS LUXEON High Brightness SMD3030 LEDs,SOSEN/Meanwell Driver;
* IP65 Protection;
* 15°/30°/45°/60°/90°/30*70°/80*140°/60*130°beam angle optional;
* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations:Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting;
* Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;;
* ±90° adjustable European bracket;
* Customized supported for special projects;

150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection 0

150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection 1
150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection 2
> Advertising, Billboard lighting
> Building exterior lighting
> Warehouse, Factory, stair corridors lighting
> Large and small parking, Square, Stadium lighting etc
> Bridges and public places, as well as other industrial and commercial lighting
> Gardens lighting
> Football court,tennis court ect sport lighting area
> Suitable for wet locations

150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection 3
150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection 4
150LPW 400W LED Stadium Flood Lights PC Reflector For Low Glare Protection 5
