IK08 Tri Proof LED Light 40W IP66 5ft Waterproof Al PC For Workshops Warehouse

Dualrays D3Triproof Industry Lighting 20w 30w 40w 50w 150lpw Triproof Light Led Fixture Used For Parking Lot Ce Rohs Saa

> PROLine Version: 120(Milky Cover)~130LPW(Transparent Cover)

> PRIMELine Version: 150(Milky Cover)~160LPW(Transparent Cover)

> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;

> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;

> 120°beam angle;

> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;

> Multiple Installations: Suspension, Wall Mounting;

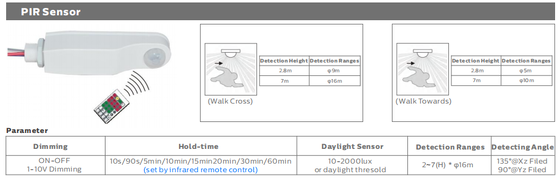

> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,

> 304/316 Stainless Steel End Cap & Bracket,corrosion-proof;

> No UV or IR and completely mercury free;

> L70/B20 @ 54.000h;

> Customized supported for special projects;

> SAN'AN SMD2835 LEDs: LM80/TM-21 Available;

> LM79/TM21/ISTMT/LCP and IES/LDT files available;

(D6 LED Triproof Light)

> Europe Market:CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;

> North American Market: ETL/CETL,DLC Premium Pending;

> Oceania Market: SAA,C-Tick,RCM

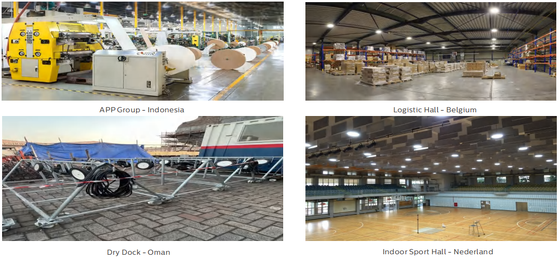

> Replacement for fluorescent NCF;

> Workshops and warehouse;

> Garage and car parks;

> Sport facility;

> Corridor/Gallery/Corridor;

> Outdoor & Indoor Locations;



l No.	DR-TP020-CG2XPX	DR-TP030-CG4XPX	DR-TP040-CG4XPX	DR-TP040-CG5XPX	DR-TP050-CG5XPX
System Watts/W	20W	30W	40W	40W	50W
System Efficiency/LPW	130LPW / 160LPW Optioanl
Lumen Output/lm	2.600/3.200±5%	3.900/4.800±5%	5.200/6.400±5%	5.200/6.400±5%	6.500/8.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.91
THD	<10%
Beam Angle(Optional)	120°
UGR	<22

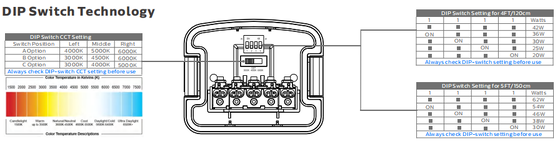

LED Driver	BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating	IP65
IK Level	IK08
Dimming(Optional)	1-10V, DALI,Zigbee
Sensor(Optional)	Daylight sensor/Microwave Sensor

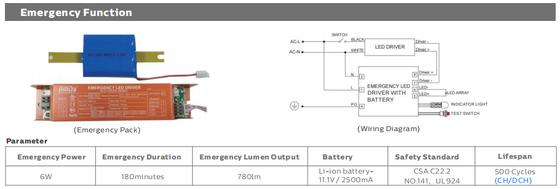

Emergency(Optional)	5W@3 Hours or Customized
Protection Class	ClassⅠ
Finishing Color(Optional)	White RAL9016 Optional
Material	PC+PC
Lifespan/hrs	54.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　
