Place of Origin: | China |
Brand Name: | Dualrays |
Certification: | CE ROHS SAA |
Model Number: | DR-TP050-BG5XPX |
Minimum Order Quantity: | 30pcs |
---|---|
Price: | negotiate |
Delivery Time: | 5-8work days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50000 per month |
Material: | PC+PC | Brand: | Dualrays |
---|---|---|---|
Input Voltage(v): | AC200-240V,50-60HZ | Lamp Luminous Efficiency(lm/w): | 130 160 |
Cri (ra>): | >80Ra | Warranty(years): | 5 YEARS |
Application: | Replacement For Fluorescent NCF;Cattle Farm; Pig Farm; Industrial And Agricultural Applications | Beam Angle: | 120° |
High Light: | IP69k 20W Tri Proof Light LED,130LPW Triproof LED Tube Light,IP69k Triproof LED Tube Light |

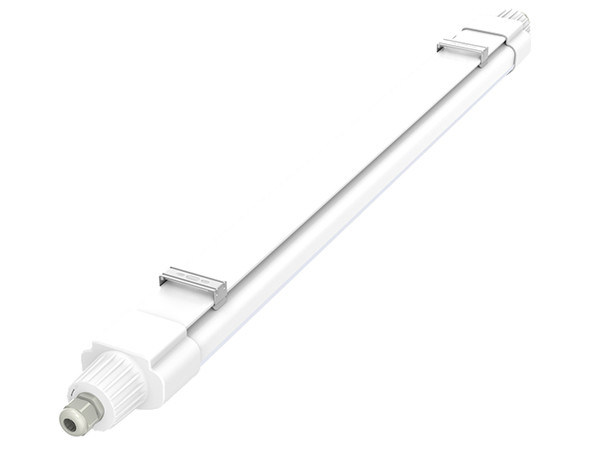

Full Plastic IP69k 20W Tri Proof Light LED 120 Degree Beam Angle
Full plastic Tri Proof Led Light Ip69k 20W 130LPW Triproof light For Wholesale
Tri Proof Led Light Ip69k 40W 160LPW Triproof Lighting ,Especially Designed For Animal Farm
> Europe Market:CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;
> North American Market: ETL/CETL,DLC Premium Pending;
> Oceania Market: SAA,C-Tick,RCM
LED triproof light is our leading items,we have 4 types optional.Here I share as below:
D2 type:
Material: Full plastic
Linkable available
Features: pretty high performance cost, compact structure and slim design
Recommended sales channel: distribution, wholesale
Guarantee: 3 years
Model No. | DR-TP020-BG2XPX | DR-TP030-BG4XPX | DR-TP040-BG4XPX | DR-TP040-BG5XPX | DR-TP050-BG5XPX |
System Watts/W | 20W | 30W | 40W | 40W | 50W |
System Efficiency/LPW | 120LPW / 140LPW Optioanl | ||||
Lumen Output/lm | 2.400/2.800±5% | 3.600/4.200±5% | 4.800/5.600±5% | 4.800/5.600±5% | 6.000/7.000±5% |
Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
LEDs Light Source | SMD2835 | ||||
SDCM | <6 | ||||
CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
CRI/Ra | >80Ra (>70Ra for Option) | ||||
Power Factor | >0.94 | ||||
THD | <10% | ||||
Beam Angle(Optional) | 120° | ||||
UGR | <22 | ||||
LED Driver | DUALRAYS Own Developed High PF Interior Driver | ||||
IP Rating | IP65 | ||||
IK Level | IK08 | ||||
Dimming(Optional) | 1-10V | ||||
Sensor(Optional) | No | ||||
Emergency(Optional) | No | ||||
Protection Class | ClassⅠ | ||||
Finishing Color(Optional) | White RAL9016 Optional | ||||
Material | PC+PC | ||||
Lifespan/hrs | 50.000 Hrs (Ta=30℃@L70) | ||||
Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
Installation(Optional) | Suspension / Ceiling Mounting Optional | ||||
Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
> High Brightness SAN'AN SMD2835 LEDs, BOKE High PF Flicker-free Driver,DIP Switch Power Adjustment Optional;
> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;
> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;
> 120°beam angle;
> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor;
> No UV or IR and completely mercury free;
> L70/B20 @ 54.000h;
Options:
> Driver: BOKE fixed power driver,DIP switch power adjustable driver;
> Controls and Dimming: 1-10V Dimming / DALI / Motion Sensor,Daylight Sensor;
> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable; > Installation : Suspension, Wall Mounting;
> Wiring: Single or double wiring;
Application
> Replacement for fluorescent NCF;
> Industrial and Agricultural applications
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
