| Place of Origin: | China |
| Brand Name: | Dualrays |
| Certification: | CE ROHS SAA |
| Model Number: | DR-TP040- FG5XP |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 per month |
| Material: | PC+PC | Brand: | Dualrays |
|---|---|---|---|
| Input Voltage(v): | AC200-240V,50-60HZ | Lamp Luminous Efficiency(lm/w): | 130 160 |
| Cri (ra>): | >80Ra | Warranty(years): | 5 YEARS |
| Application: | Replacement For Fluorescent NCF;Cattle Farm; Pig Farm; Industrial And Agricultural Applications | Beam Angle: | 120° |
| High Light: | 160LPW LED Tri Proof Light,IP69k LED Tri Proof Light,SMD2835 Tri Proof LED Light |
||

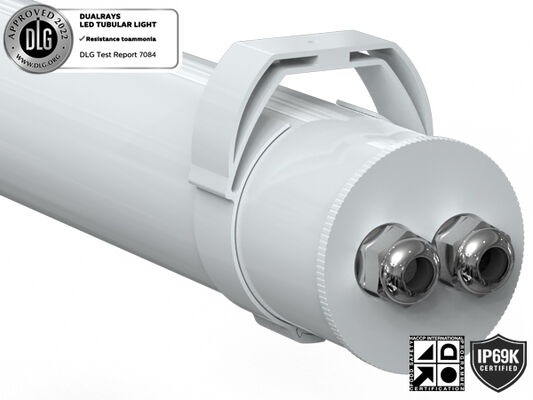

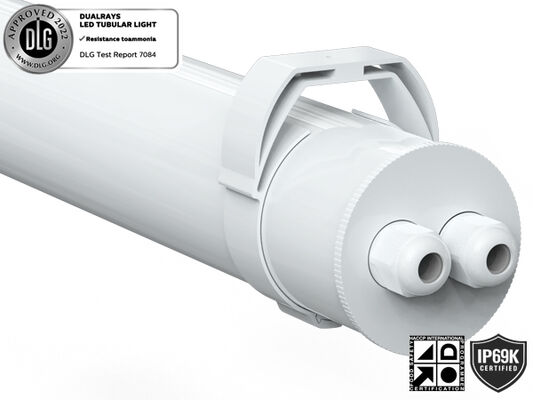

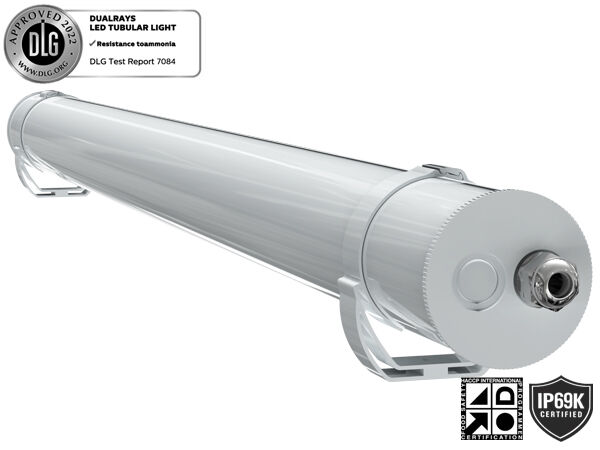

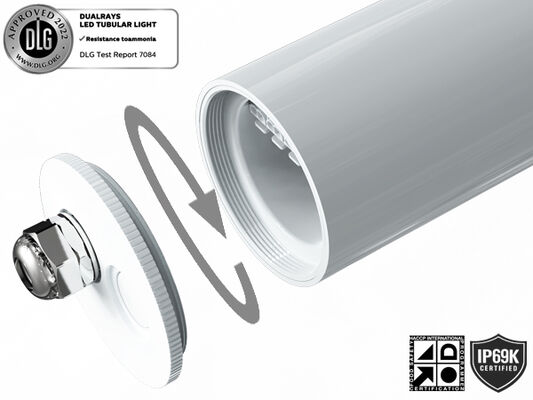

SMD2835 IP69k 40W 160LPW LED Tri Proof Light For Animal Farm
Tri Proof Led Light Ip69k 40W 160LPW Triproof Lighting ,Especially Designed For Animal Farm
> Europe Market:CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;
> North American Market: ETL/CETL,DLC Premium Pending;
> Oceania Market: SAA,C-Tick,RCM
D6 type:
Material: 304/316 stainless steel + PC/PMMA/ Toughened glass
Linkable available
Features: IP69K,anti-ammonia/UV protection,especially designed for animal farm.
Recommended sales channel: wholesale,project
Guarantee: 5 years
The efficiency for the above 3 types is 130LPW and 160LPW optional,1-10V,DALI.motion sensor,daylight sensor,zigbee and emergeny function optional.
130/160LPW
SMD2835
CCT/K:5000K for standard;
CRI/Ra:>80Ra
|
Model No.
|
DR-TP020-FG2XP
|
DR-TPL030-FG4XP
|
DR-TPL040-FG5XP
|
DR-TPL050-FG5XP
|
|
System Watts/W
|
20W
|
30W
|
40W
|
50W
|
|
System Efficiency/LPW
|
130LPW / 160LPW Optioanl
|
|||
|
Lumen Output/lm
|
2.600/3.200±5%
|
3.900/4.800±5%
|
5.200/6.400±5%
|
6.500/8.000±5%
|
|
Rated Input Voltage/V
|
AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional)
|
|||
|
LEDs Light Source
|
SMD2835
|
|||
|
SDCM
|
<6
|
|||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional)
|
|||
|
CRI/Ra
|
>80Ra (>70Ra for Option)
|
|||
|
Power Factor
|
>0.91
|
|||
|
THD
|
<10%
|
|||
|
Beam Angle(Optional)
|
120°
|
|||
|
UGR
|
<22
|
|||
|
LED Driver
|
BOKE Fixed Power/ DIP Switch Power Adjustable Optional
|
|||
|
IP Rating
|
IP65
|
|||
|
IK Level
|
IK08
|
|||
|
Dimming(Optional)
|
1-10V, DALI
|
|||
|
Protection
|
IP69K
|
|||
|
Sensor(Optional)
|
Daylight sensor/Microwave Sensor
|
|||
|
Protection Class
|
ClassⅠ
|
|||
|
Finishing Color(Optional)
|
RAL9016 Matt White
|
|||
|
Material
|
PC+PC (PMMA / Tempered Glass Optional)
|
|||
|
Lifespan/hrs
|
54.000 Hrs (Ta=30℃@L70)
|
|||
|
Operation Temp/℃
|
-40°C to + 50°C(-40°F to 122°F)
|
|||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F)
|
|||
|
Installation(Optional)
|

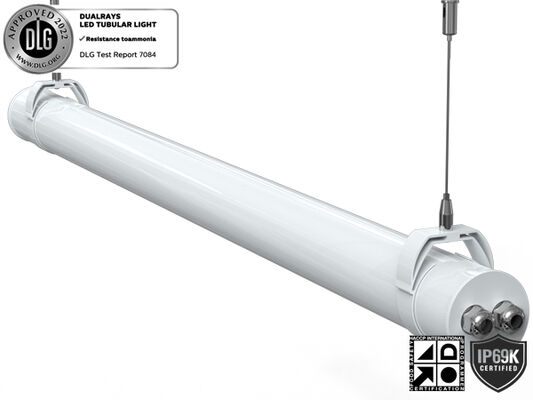

Suspension / Ceiling Mounting Optional
|
|||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
|
|||
> High Brightness SAN'AN SMD2835 LEDs, BOKE High PF Flicker-free Driver,DIP Switch Power Adjustment Optional;

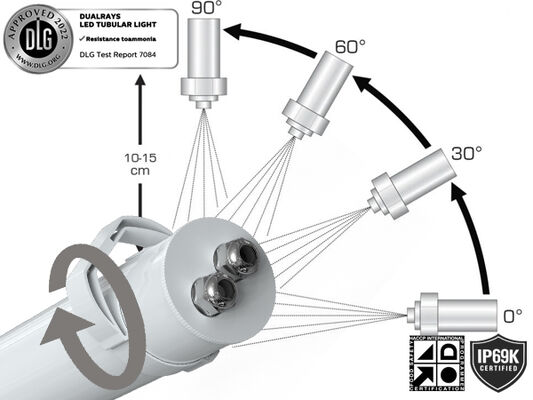

> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;
> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;
> 120°beam angle;

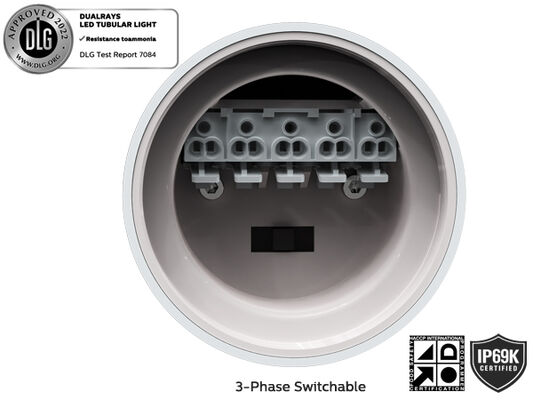

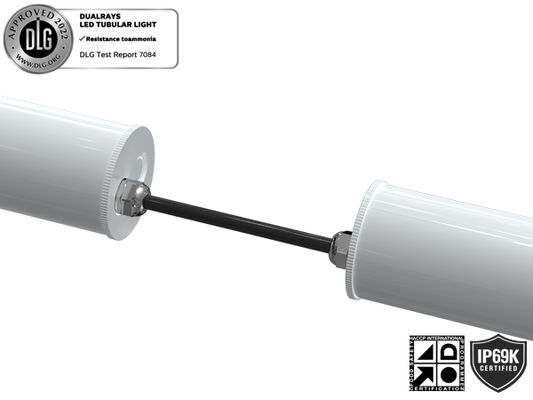

> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor;
> 304/316 Stainless Steel End Cap & Bracket, corrosion-proof;
> No UV or IR and completely mercury free;
> L70/B20 @ 54.000h;
Options:

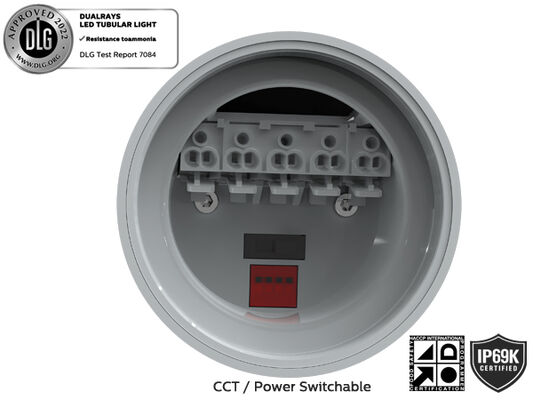

> Driver: BOKE fixed power driver,DIP switch power adjustable driver;
> Controls and Dimming: 1-10V Dimming / DALI / Motion Sensor,Daylight Sensor;
> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable; > Installation : Suspension, Wall Mounting;
> Wiring: Single or double wiring;
Application
> Replacement for fluorescent NCF;
> Cattle farm;
> Pig farm;
> Industrial and Agricultural applications
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
