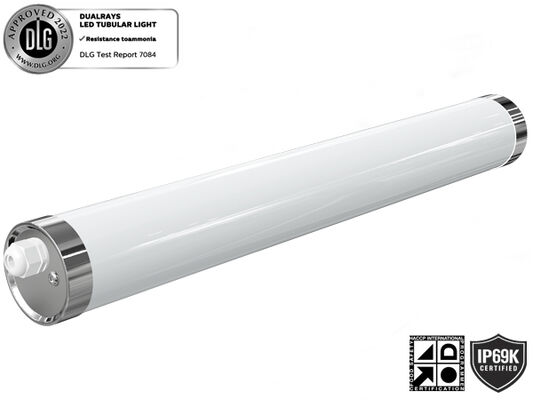

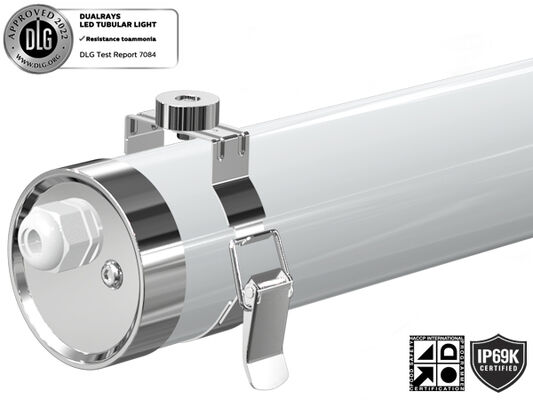

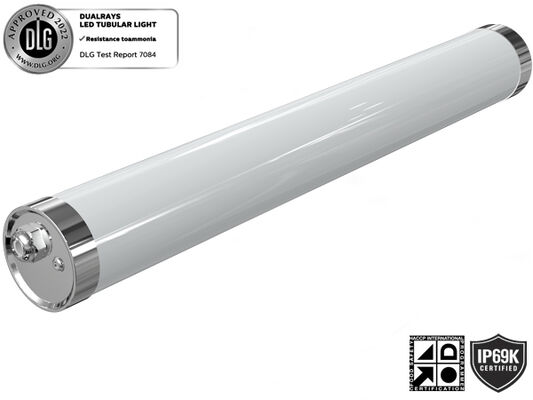

5ft 50W IP69K IK10 LED Tri Proof Light For Warehousing Illumination

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE ROHS SAA IP67 IK08 IK10
Model Number:	TB6

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS/1CTN
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Business Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000pcs/month

Contact Now

Detailed Product Description

Material:	PC/PMMA Optional	Input Voltage:	AC200～240V 50/60Hz(AC100～277V 50/60Hz Optional)
Finishing Color(Optional):	White RAL9016	IP Rating:	IP67/IP69K
Various Intelligent Control:	1-10V, DALI, Motion Sensor,Daylight Sensor,Zigbee And Emergency	Driver:	PHILIPS / TRIDONIC /BOKE Non-SELV Driver
Lifespan:	L80/B10 @ 61.000 Hrs;	Protective Class:	Class Ⅰ
Installation:	Ceiling Mounted \| Suspension \| Magnetic Mounted \| Rotatable Wall Mounted	Cable Gland:	M20 Cable Gland (Nylon Or SS304/316 Cable Gland Optional)
Highlight:	IK10 LED Tri Proof Light , IP69K LED Tri Proof Light , 50W 5ft LED Tube Light

IP69K IK10 TB6 LED Tubular Light Anto-UV Ammonia For Food Processing Plant

The TB6 LED Tubular Light can withstand a wide range of environmental influences and can be used in harsh, chemically demanding environments, due to the choice of materials and design.It is resistant to ammonia and sulphur pollution, and can be resistant to many chemicals and resists most disinfectants and cleaning agents. In addition, the luminaire is dust-proof thanks to IP69K and can be easily cleaned with high-pressure cleaners. It has been certified by the DLG for its durability in difficult ammonia environments, making it ideal for agriculture. What is
more,it also provides a safe solution in demanding industrial environments, such as electroplating plants, tire manufacturing and storage, or in areas with increased chemical concentrations. Due to the UV-resistant material, outdoor use is also possible without hesitation.

* High Brightness SAN'AN SMD2835 LEDs, LIFUD/BOKE/AGT High PF Flicker-free Driver DIP Switch Power Adjustment Optional;

* Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;

* IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;;
* 120°/ 200°/ 280°/ 360° beam angle optional;

* Single or Double Wiring Linkable Optional;
* Multiple Installations: Suspension, Wall Mounting, Magnetic Holder;

* Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency ;

* No UV or IR and completely mercury free;

* L80/B10 @ 61.000h;
* Customized supported for special projects;

Options:

> Driver: PHILIPS / TRIDONIC /BOKE Non-SELV driver.

> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

> 120°/ 200°/ 280°/ 360°beam angle optional;

> Installation: Suspension, Wall Mounting, Magnetic Holder;

> Material: PC/PMMA optional;

> Replacement for fluorescent NCF;

> Food Processing Plant;

> Chemical Facilities;

> Animal Stable Warehouse;

> Car Washing Place;

> Outdoor & Indoor Locations;

General System

Housing Material: Extruted PC/PMMA according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10)

Diffuser Material: Extruted PC/PMMA according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10)

Housing Color: White (RAL9016), Other colors optional

Sealing Gaskets: Silicone foam

LEDs Thermal Dissipation: Through finless 6063 AL luminaire body, without conductive fluids. Passive convection dissipation
ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste

Anti-condensation: Pressure-balancing valve to ensure moisture release, avoid condensation and maintain the luminaire

IP tightness

Finish: Electrostatically sprayed and sublimated in the oven. Resistant to corrosion

Recommended Mounted Height: 2 - 8 meters

Maintenance: End-cap with screw for installation

Driver: Constant current, embedded in luminaire, pre-wired

IP (Ingress Protection Rating): IP67 / IP69K

IK (Impact Resistance): IK10

Protective Class: Class Ⅰ

Glow Wire: 850°C (Under 30s)

Cable Gland: M20 cable gland (Nylon or SS304/316 Cable Gland Optional)

Installation: Ceiling mounted | Suspension | Magnetic Mounted | Rotatable Wall Mounted

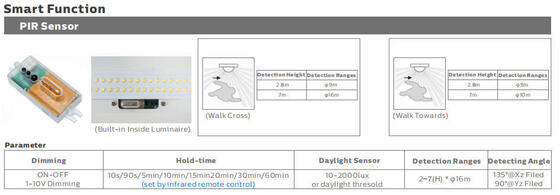

Smart Function: PIR Sensor | Microwave Sensor | Emergency

Electrical System

Through-wiring: 3*1.5mm2 | 5*1.5mm2 | 3*2.5mm2 | 5*2.5mm2 wires through for option

Main Voltage: 220~240VAC/ 50/60Hz, 180-264VDC

Power Factor (PF): ≥0.96

Total Harmonic Distortion (THD): ＜10%

Output Type: Non-SELV(non-isolated)

Flicker Factor: ＜1%

Stroboscopic Visibility Measure (SVM): ＜0.4

Perceptibility of Stroboscopic Effects (Pst): ＜1

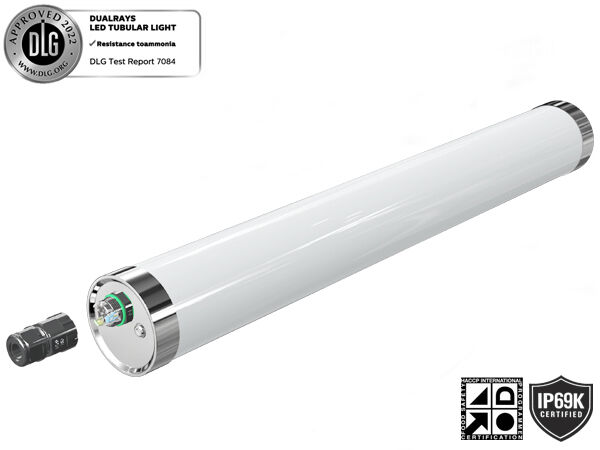

Terminal Connection: Quick screw-top end-cap for easy wiring

Luminaires Power B10A B16A C10A C16A

20W 70 110 98 158

30W 46 74 66 104

Module via LSS Circuit Breakers 40W 35 55 49 78

50W 28 44 39 62

60W 23 37 34 52

Photometry System

LEDs: SMD2835 (1W)

CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K)

CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available)

Photobiological Safety: RG0 (exempt of risk)

EEC (Energy Effciency Class): A++

SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional)

UGR (4H, 8H) : 24.9 (Cross)

23.4 (Longitudinal)

Beam Angle: 120° | 280° | 360° Optional

Average Luminaire Useful Lifetime: 61.000 hours (L80B10)

Lumen Maintenance at e.o.l. >70%

Luminous Efficacy: 130LPW (PROLine) | 160LPW (PRIMELine) Optional

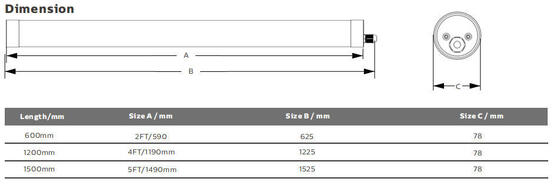

Length 2FT/600mm 4FT/1200mm 5FT/1500mm

Rated Power: 20W 30W 30W 40W 40W 60W

(PRO) 2.600lm 3.900lm 3.900lm 5.200lm 5.200lm 7.800lm

Lumens Delivered
@ 5000K, CRl>80 (PRIME) 3.200lm 4.800lm 4.800lm 6.400lm 6.400lm 9.600lm

Operation Condition

Operation Temperature / Humidity: -20~ +60℃ (-4°F ~ 140°F) / 5~85% RH, not condensed

Storage Temperature / Humidity: -40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed

Average LED Useful Time L90B10: ≥0.96

Rated Nominal Lifetime (Tp <70℃): Up to 100,000H

Driver MTBF: 500.000H,MIL-HDBK-217F(25℃)

Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes

Acoustic Noise: ＜25dB (30cm disstance, Normal operation)

Guarantee: 5 Years

Certifications

Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471

EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384

Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11

* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRl>80.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra

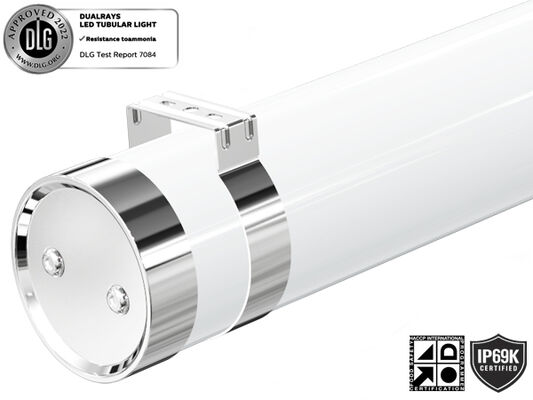

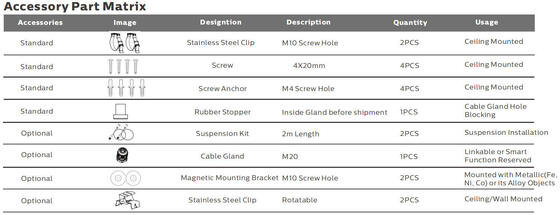

Ceiling Mounted:

Drilling screw hole on the ceiling. Fix the clip into ceiling with screw. Click into the luminaire by hand tightly.

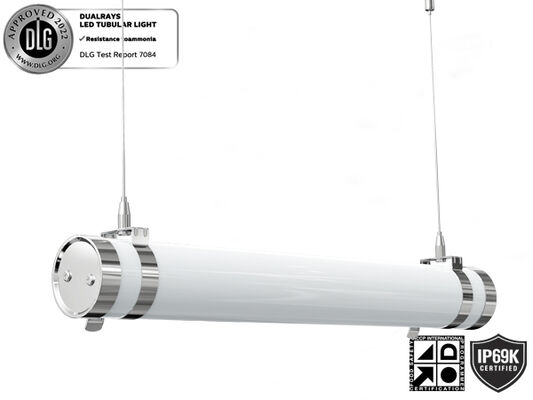

Suspension:

Drilling screw hole on the ceiling. Click into the luminaire by hand tightly, Install Fix the mounting hook into ceiling, and
the clip. then adjust the length of suspension kits.

Rotatable Ceiling Mounting:

Drilling screw hole on the ceiling. Click into the luminaire with clips. Rotate the angle on demand.

Magnetic Mounting:

Take out the 2PCS clips with magnetic rings Click into the luminaire with magnetic clips Fix the luminaire on metallic(Fe, Ni, Co) or
from the component package. with hand tightly. its alloy objects surface as required.

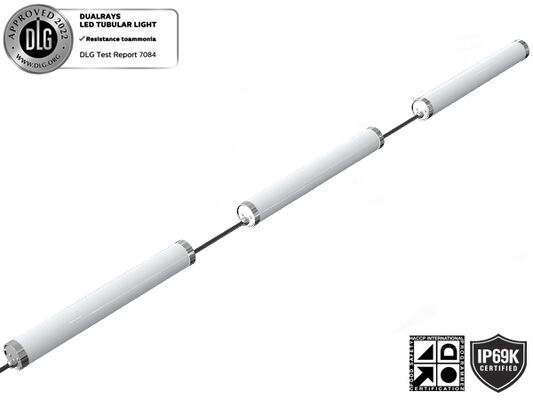

Linkable Connection:

Length/mm Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton

600 733x93x93mm 748x294x304mm 9PCS 1.4Kg 13.2Kg

1200 1333x93x93mm 1348x294x304mm 9PCS 2.1Kg 19.8Kg

1500 1633x93x93mm 1648x294x304mm 9PCS 2.8Kg 26.4Kg

Please read all the instructions below before installation:
* To avoid electric shock, please ensure that the power supply is turned off before installation.
* The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
* Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
* If the lamp is damaged, do not use it!

Statement:
According to the International Standard of LED luminaire, here DUALRAYS formally claims that DUALRAYS LED Highbay Light (UFO Highbay) series products is only allowed to be applied to indoor or semi-outdoor neutral environment. Meanwhile DUALRAYS promises full warranty for the products.

Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without the official confirmation from the manufacturer. If any misapplication happens, the warranty policy is no longer guaranteed.

5ft 50W IP69K IK10 LED Tri Proof Light For Warehousing Illumination 30

* Professional team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

5ft 50W IP69K IK10 LED Tri Proof Light For Warehousing Illumination 31

5ft 50W IP69K IK10 LED Tri Proof Light For Warehousing Illumination 32

5ft 50W IP69K IK10 LED Tri Proof Light For Warehousing Illumination 33

Shipment:

5ft 50W IP69K IK10 LED Tri Proof Light For Warehousing Illumination 37
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

5ft 50W IP69K IK10 LED Tri Proof Light For Warehousing Illumination 38 Q1: What is the warranty for the TB7 LED Tubular light?

RE: 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

Q3: What is CRI?

RE: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly >80Ra,and 90Ra with higher cost.

Q4: Can I only buy the housing separately?

RE:Sorry,we only supply the whole luminaire fixture,but SKD/CKD can be accepted.

Q5:Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q6:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market, demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q7: Dimming functions?

RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Q8:What are the applications of your TB7 LED Tubular light?
RE:Our higbay light can be applied in the following occassions:

> Replacement for fluorescent NCF;

> Food Processing Plant;

> Chemical Facilities;

> Animal Stable Warehouse;

> Car Washing Place;

> Outdoor & Indoor Locations;

Welcome to contact us for more information, visit our official website www.DUALRAYS.com or send us email to info@DUALRAYS.com to get the latest information and support.
