| Place of Origin: | China |
| Brand Name: | Dualrays |
| Certification: | CE ROHS SAA |
| Model Number: | DR-TP020- CG2XP |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 per month |
| Material: | PC PMMA Are Optional | Brand: | Dualrays |
|---|---|---|---|
| Input Voltage(v): | AC200-240V,50-60HZ | Lamp Luminous Efficiency(lm/w): | 120 130 150 160 |
| Cri (ra>): | >80Ra | Warranty(years): | 5 YEARS |

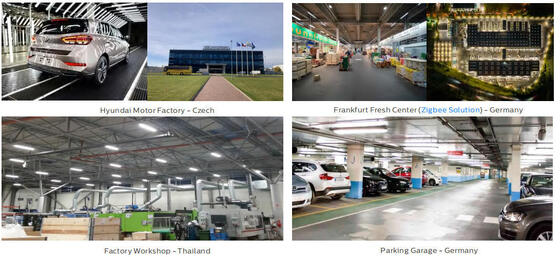

| Application: | Supermarket, Office, Factory, Parking Lot, School | Beam Angle: | 120° |
| High Light: | 150lpw LED Tri Proof Light,40w 50w LED Tri Proof Light,150lpw LED Tube Light 40 Watt |
||

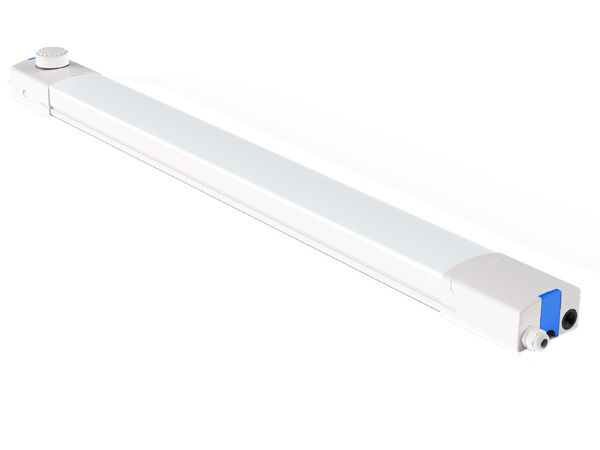

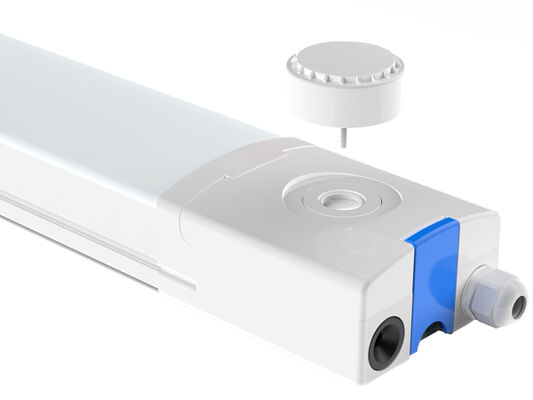

Waterproof 20w 30w 40w 50w 150lpw LED Tri Proof Light Fixture Panel
Dualrays D2 Waterproof Lighting 20w 30w 40w 50w 150lpw Triproof Light Led Fixture Panel Lighting Ce Rohs Saa
> BASELine Version:
> PROLine Version: 120(Milky Cover)~130LPW(Transparent Cover)
> PRIMELine Version: 150(Milky Cover)~160LPW(Transparent Cover)
>High Brightness SAN'AN SMD2835 LEDs,BOKE High PF Flicker-free Driver DIP Switch Power Adjustment Optional;
> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;
> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;

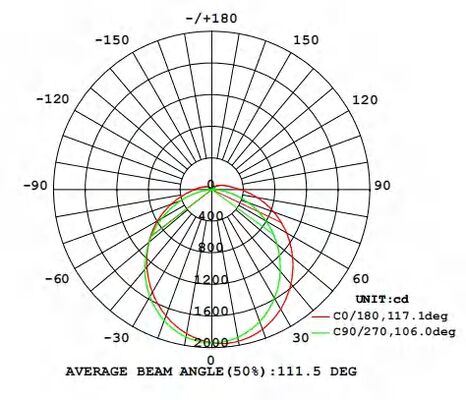

> 120°beam angle;

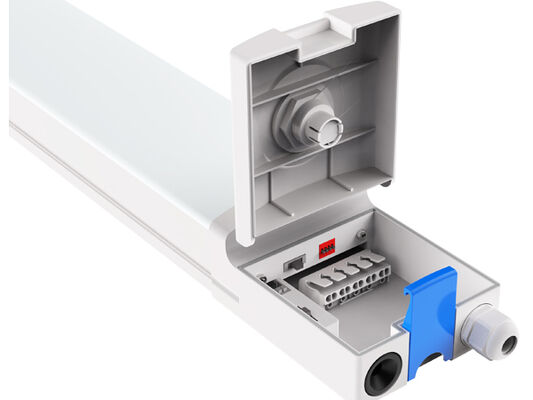

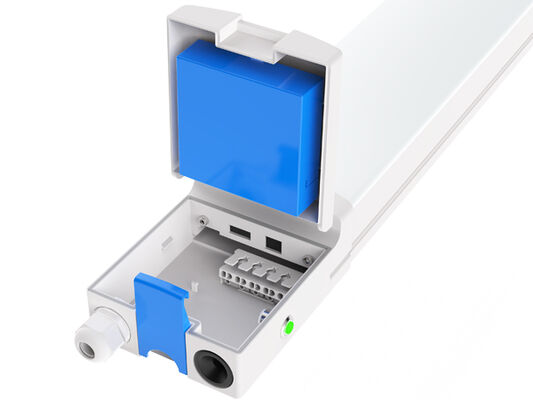

> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting;

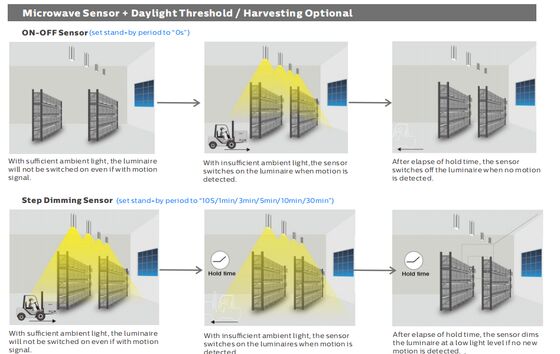

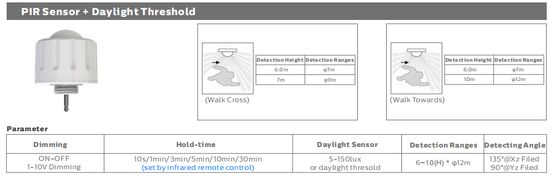

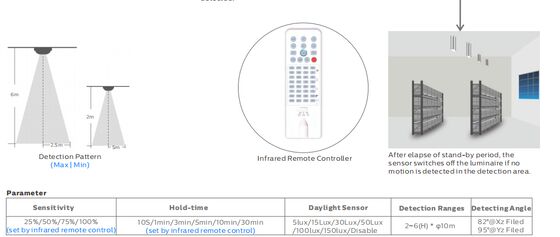

> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,
> 304/316 Stainless Steel End Cap & Bracket,corrosion-proof;
> No UV or IR and completely mercury free;
> L70/B20 @ 54.000h;
> Customized supported for special projects;
> SAN'AN SMD2835 LEDs: LM80/TM-21 Available;
> LM79/TM21/ISTMT/LCP and IES/LDT files available;
(D6 LED Triproof Light)
> Europe Market: CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;
> North American Market: ETL/CETL,DLC Premium Pending;
> Oceania Market: SAA,C-Tick,RCM
#Led Top 10 Brand,A leading led light supplier

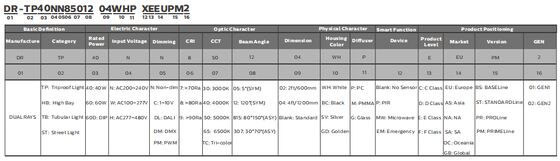

| Model No. | DR-TP020-BG2XPX | DR-TP030-BG4XPX | DR-TP040-BG4XPX | DR-TP040-BG5XPX | DR-TP050-BG5XPX |
| System Watts/W | 20W | 30W | 40W | 40W | 50W |
| System Efficiency/LPW | 120LPW / 140LPW Optioanl | ||||
| Lumen Output/lm | 2.400/2.800±5% | 3.600/4.200±5% | 4.800/5.600±5% | 4.800/5.600±5% | 6.000/7.000±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
| LEDs Light Source | SMD2835 | ||||
| SDCM | <6 | ||||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
| CRI/Ra | >80Ra (>70Ra for Option) | ||||
| Power Factor | >0.94 | ||||
| THD | <10% | ||||
| Beam Angle(Optional) | 120° | ||||
| UGR | <22 | ||||
| LED Driver | DUALRAYS Own Developed High PF Interior Driver | ||||
| IP Rating | IP65 | ||||
| IK Level | IK08 | ||||
| Dimming(Optional) | 1-10V | ||||
| Sensor(Optional) | No | ||||

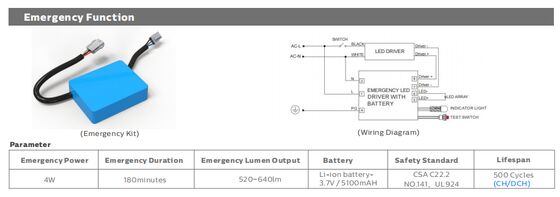

| Emergency(Optional) | No | ||||
| Protection Class | ClassⅠ | ||||
| Finishing Color(Optional) | White RAL9016 Optional | ||||
| Material | PC+PC | ||||
| Lifespan/hrs | 50.000 Hrs (Ta=30℃@L70) | ||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
| Installation(Optional) | Suspension / Ceiling Mounting Optional | ||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
