| Place of Origin: | China |
| Brand Name: | Dualrays |
| Certification: | CE ROHS SAA |
| Model Number: | DR-TP020- BG2XB |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD10.84 to USD21.87 |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 per month |
| Material: | PC PMMA Are Optional | Brand: | Dualrays |
|---|---|---|---|
| Input Voltage(v): | AC200-240V,50-60HZ | Lamp Luminous Efficiency(lm/w): | 120 130 150 160 |
| Cri (ra>): | >80Ra | Warranty(years): | 5 YEARS |
| Application: | Supermarket, Office, Factory, Parking Lot, School | Beam Angle: | 120° |
| High Light: | 150lpw Waterproof LED Tube Lights,150lpw Industrial Led Lighting,PMMA Waterproof LED Tube Lights |
||

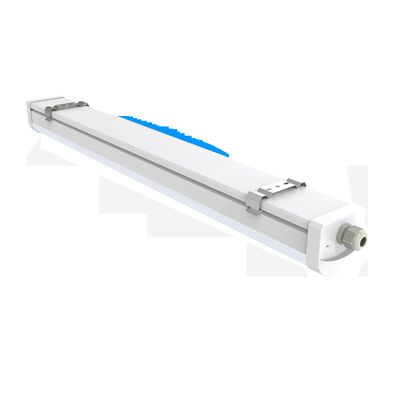

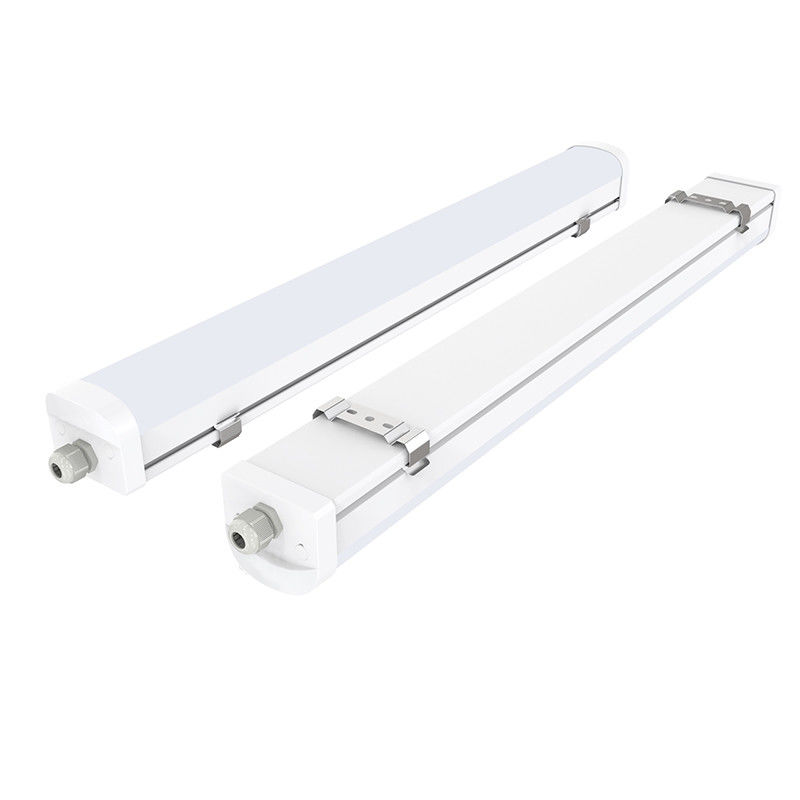

20w 30w 40w 50w 150lpw Waterproof LED Tube Lights For Parking Lot
Dualrays D3Triproof Industry Lighting 20w 30w 40w 50w 150lpw Triproof Light Led Fixture Used For Parking Lot Ce Rohs Saa
> BASELine Version:
> PROLine Version: 120(Milky Cover)~130LPW(Transparent Cover)
> PRIMELine Version: 150(Milky Cover)~160LPW(Transparent Cover)
>High Brightness SAN'AN SMD2835 LEDs,BOKE High PF Flicker-free Driver DIP Switch Power Adjustment Optional;
> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;
> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;
> 120°beam angle;

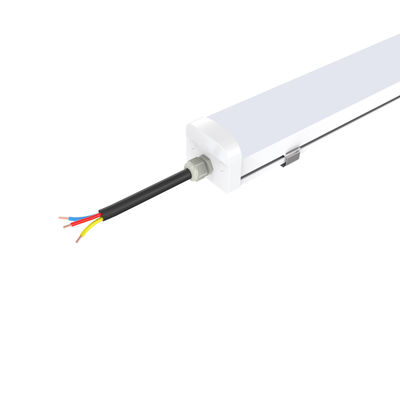

> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,
> 304/316 Stainless Steel End Cap & Bracket,corrosion-proof;
> No UV or IR and completely mercury free;
> L70/B20 @ 54.000h;
> Customized supported for special projects;
> SAN'AN SMD2835 LEDs: LM80/TM-21 Available;
> LM79/TM21/ISTMT/LCP and IES/LDT files available;
(D6 LED Triproof Light)
> Europe Market: CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;
> North American Market: ETL/CETL,DLC Premium Pending;
> Oceania Market: SAA,C-Tick,RCM
|
Model No.
|
DR-TP020-CG2XPX | DR-TP030-CG4XPX | DR-TP040-CG4XPX | DR-TP040-CG5XPX | DR-TP050-CG5XPX |
|
System Watts/W
|
20W | 30W | 40W | 40W |
50W
|
|
System Efficiency/LPW
|
130LPW / 160LPW Optioanl | ||||
|
Lumen Output/lm
|
2.600/3.200±5% | 3.900/4.800±5% | 5.200/6.400±5% | 5.200/6.400±5% | 6.500/8.000±5% |
|
Rated Input Voltage/V
|
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
|
LEDs Light Source
|
SMD2835 | ||||
|
SDCM
|
<6 | ||||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
|
CRI/Ra
|
>80Ra (>70Ra for Option) | ||||
|
Power Factor
|
>0.91 | ||||
|
THD
|
<10% | ||||
|
Beam Angle(Optional)
|
120° | ||||
|
UGR
|
<22 | ||||
| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional | ||||
| IP Rating | IP65 | ||||
|
IK Level
|
IK08 | ||||
|
Dimming(Optional)
|
1-10V, DALI,Zigbee | ||||
|
Sensor(Optional)
|
Daylight sensor/Microwave Sensor | ||||
|
Emergency(Optional)
|
5W@3 Hours or Customized | ||||
|
Protection Class
|
ClassⅠ | ||||
|
Finishing Color(Optional)
|
White RAL9016 Optional | ||||
|
Material
|
PC+PC | ||||
|
Lifespan/hrs
|
54.000 Hrs (Ta=30℃@L70) | ||||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | ||||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | ||||
|
Installation(Optional)
|
Suspension / Ceiling Mounting Optional | ||||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
(Partnership)
Contact Person: Mr. David Lau
Tel: 86-18620309436
Fax: 86-755-61641072
