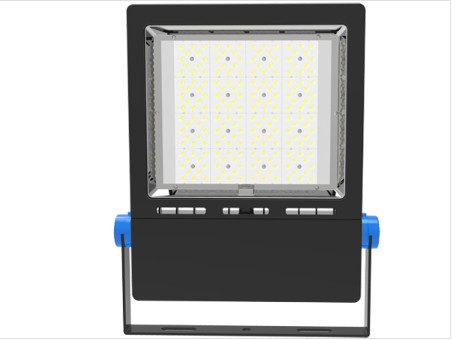

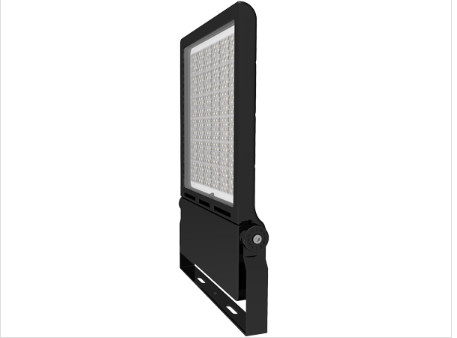

IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights

IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights

  • IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights
  • IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights
  • IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights
  • IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights
IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL050-CGXX
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Efficiency: 135lm/w Material: Aluminium And Glass
CCT: 3000/4000/5700/6500K±200K Power Factor: 0.95
IP Rating: IP65 Dimming(Optional): 1-10V, DALI,PWM,Zigbee For Option
LED Driver: Sosen,Meanwell ELG / HLG Optional Power: 10W 20W 30W 50W 100W 150W 200W 300W 400W
Highlight:

IK10 Outdoor LED Flood Lights

,

IP65 Outdoor LED Flood Lights

,

IK10 Waterproof LED Flood Lights

IP65 LED Flood Lights high performance cost effective Sport Field Floodlights



High Lumen IP65 Waterproof Outdoor Led Floodlight 10W 20W 30W 50W 100W 150W 200W 300W 400W Led Flood

IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights 0



IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights 1



IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights 2

Model No.
 DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
 50W 100W 150W 200W
300W
System Efficiency/LPW
 120~125LPW
Lumen Output/lm
 6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
 AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
 SMD3030
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
 <25
Surge Protection
 6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Sosen,Meanwell ELG / HLG Optional
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+Toughened Glass
Lifespan/hrs
 62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available



> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;

> High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell ELG/HLG Driver;

> Built-in Plug and Play Motion Sensor with Compact Structure;

> IP65 / IK10 Protection;

> L70/B20 @ 62.000h;



Application

> Airports & Harbors

> Billboard illumination

> Large recreational sports facilities

> Industrial areas & Landscape buildings

> Roundabouts and motorway junctions



IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights 3
IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights 4





IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights 5

IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights 6

IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights 7IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights 8

IP65 LED Flood Lights high performance cost effective Modular Sport Field Floodlights 9
