IP66 150lm/W LED Flood Light for Stadium Gymnasium Light with 5 years warranty CE RoHS

IP66 150lm/W LED Flood Light for Stadium Gymnasium Light with 5 years warranty CE RoHS

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;

> Aiming Device: Laser Pointer;

> Logistics areas (Ports)

> Stadiums and Racing tracks

> Public squares

> Apron lighting (Airports), Parking and Industrial areas

> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Model No.	DR-SPL300-EGXP	DR-SPL400-EGXP	DR-SPL500-EGXP	DR-SPL600-EGXP	DR-SPL800-EGXP	DR-SPL1000-EGXP
System Watts/W	300W	400W	500W	600W	800W	1000W
System Efficiency/LPW	150~160LPW
Lumen Output/lm	48.000±5%	64.000±5%	80.000±5%	96.000±5%	128.000±5%	160.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	20°/30°/60°/90°/140*60° Optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

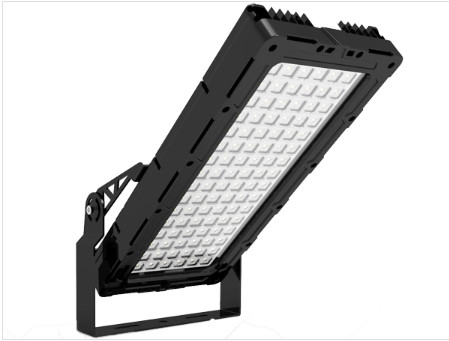

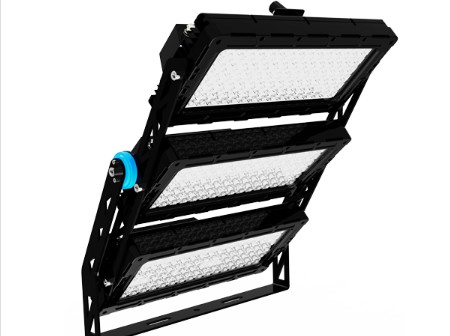

(300W) (400W) (500W)

(600W) (800W) (1000W)

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-EGXP	13.1	590*505*250	14.2	1PCS/CTN
DR-SPL400-EGXP	16.9	680*505*250	18.2	1PCS/CTN
DR-SPL500-EGXP	4.8	790*505*250	23.5	1PCS/CTN
DR-SPL600-EGXP	22.1	830*590*250	28.4	1PCS/CTN
DR-SPL800-EGXP	30.8	830*690*250	32.5	1PCS/CTN
DR-SPL1000-EGXP	36.5	830*790*250	39.8	1PCS/CTN

FAQ

Q1:How to choose the best LED flood light for the stadium?
RE:In order to achieve high-quality lighting conditions, we need to understand what kind of LED floodlights are most needed in stadiums. As an industry-leading professional manufacturer of LED industry, sports and road lighting, Jinghong Lighting reminds users to consider the following factors:

1. The lamp has an efficient heat dissipation system

When the LED chip converts electrical energy into light energy to emit light, part of the electrical energy is converted into heat. The high temperature will cause damage to the electronic components, so the lamp must have good heat dissipation performance to avoid excessive temperature.

Efficient heat dissipation can not only ensure the high-quality lighting performance of the high pole lamp, but also significantly increase the service life of the lamp. Efficient heat dissipation is generally achieved through structural design, heat sinks, and thermally conductive materials.

Jinghong Lighting has developed Hi-G material as an advanced heat conduction material, and uses aluminum with excellent heat dissipation and special processing as a heat sink. With excellent structural design, it not only guarantees super high quality and excellent heat dissipation performance, but also Provides a simple and beautiful aesthetic feeling. Combining quality and technology, Jinghong Lighting will always lead the LED flood light and sports industries.

2. Professional light distribution

Precise light control is essential for sports lighting. The excellent lens design will guide the light to accurately illuminate the corresponding area, so that all sports participants can enjoy the joy of sports without causing unnecessary light pollution to surrounding neighbors.

Jinghong Lighting provides a variety of professional lens designs for its LED flood lights, which can better adapt to different installation heights and stadiums with different requirements. Precise light control will help achieve excellent uniformity and best visual effects, and minimize light pollution.

Light up the place you need, without affecting the surrounding neighbors!

3. Convenient on-site maintenance

Maintenance is a very important task during the entire life cycle of the floodlight. Compared with traditional metal halide lamps, LED floodlights have a very long service life (up to 10 years), so maintenance and replacement costs can be greatly saved.

However, when the LED floodlight is installed in a high place, it often takes a lot of time and effort to maintain. Therefore, more convenient and low-cost maintenance solutions are highly anticipated. Jinghong Lighting has developed a variety of new designs to meet these needs.

The simple and practical aiming device can accurately aim the lamp at its target, the tool-free adjustable bracket can quickly adjust the installation angle, and most importantly, the detachable electrical box can centrally manage the electrical components on the ground.

4. Intelligent lighting control
