| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-SPL400-FGXP |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, D/A, T/T, Paypal |
| Supply Ability: | 1000000PCS/Month |
| Luminaire Efficiency: | 150lm/W | Power Factor: | PF>0.9 |
|---|---|---|---|
| Power Supply: | Meanwell ELG/Meanwell HLG | Life Span: | >50,000 |
| IP Rating: | IP66 | Warranty: | 5-7 Years |
| IK Rating: | IK10 | Installations: | Ground/Wall/Ceiling/Pipe |
| High Light: | 400W LED Sports Ground Floodlights,150lm/W LED Sports Ground Floodlights,IK10 Gymnasium LED Floodlights |
||

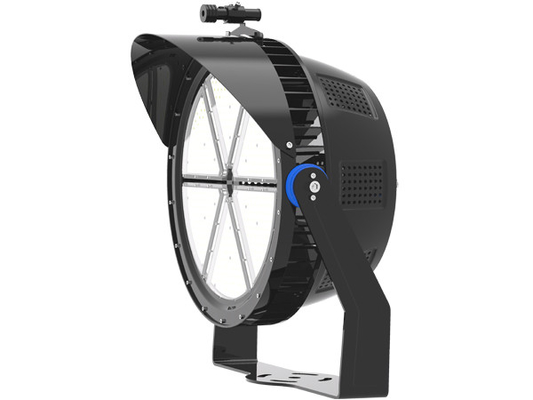

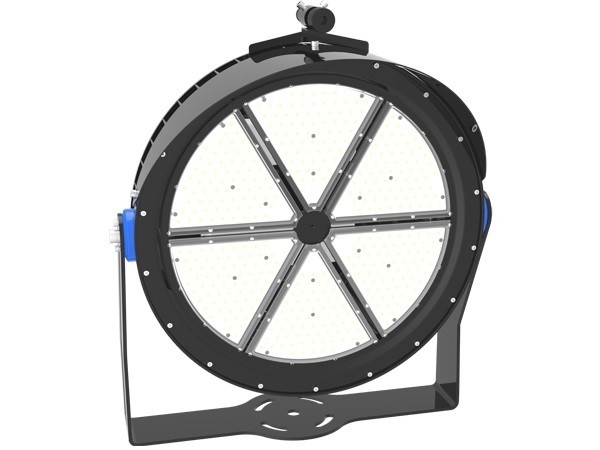

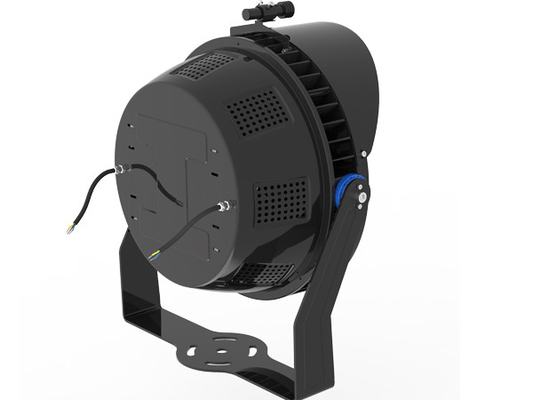

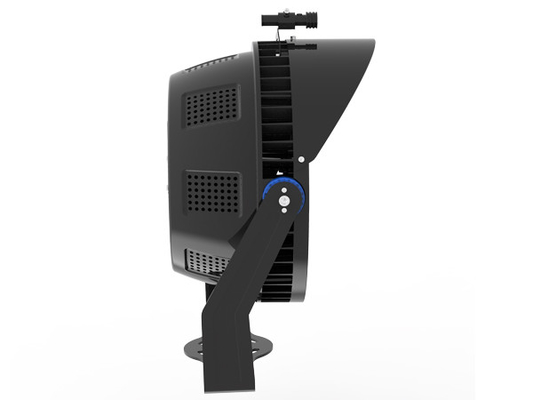

400W Dualrays LED Sports Ground Floodlights for Large Gymnasium
> Precision Integrated Die-casting Process,Excellent Thermal Conductivity?
> High Brightness LUMILEDS LUXEON SMD5050 LEDs, Meanwell HLG / ELG Driver;
> Built-in Plug and Play Motion Sensor with Compact Structure;
> IP65 / IK08 Protection;
> Symmetrical 30°/60°/90° beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;
> 360°Adjustable Supporting Fixture;
> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;
> No UV or IR and completely mercury free;
> L70/B20 @ 70.000h;
> Customized supported for special projects;
|
Model No.
|
DR-SPL300-FGXP | DR-SPL400-FGXP | DR-SPL600-FGXP | DR-SPL800-FGXP |
|
System Watts/W
|
300W | 400W | 600W | 800W |
|
System Efficiency/LPW
|
150LPW | |||
|
Lumen Output/lm
|
45.000±5% | 60.000±5% | 90.000±5% | 120.000±5% |
|
Rated Input Voltage/V
|
AC100~277V, 50/60Hz | |||
|
LEDs Light Source
|
SMD5050 | |||
|
SDCM
|
<5 | |||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | |||
|
Power Factor
|
>0.95 | |||
|
THD
|
<10% | |||
|
Beam Angle(Optional)
|
30°/60°/90° | |||
|
UGR
|
<25 | |||
|
Surge Protection
|
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
|
LED Driver
|
Meanwell ELG / HLG Optional | |||
|
IP Rating
|
IP65 | |||
|
Dimming(Optional)
|
1-10V, DALI,PWM,Zigbee for Option | |||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||
| Start Time | 0.5s | |||
|
Protection Class
|
ClassⅠ | |||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||
|
Material
|
Aluminum+PC | |||
|
Lifespan/hrs
|
70.000 Hrs (Ta=30℃@L70) | |||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||
| Switching Cycles | 100,000 Times | |||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||
|
Character/Power
|
300W
|
400W
|
600W
|
800W
|
|
|
A / mm
|
Ø445
|
Ø445
|
Ø537
|
Ø537
|
|
|
B / mm
|
321
|
321
|
373
|
373
|
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-SPL300-FGXP
|
12.4
|
610*510*250
|
13.8
|
1PCS/CTN
|
|
DR-SPL400-FGXP
|
12.9
|
610*510*250
|
14.7
|
1PCS/CTN
|
|
DR-SPL600-FGXP
|
25.3
|
890*710*275
|
27.6
|
1PCS/CTN |
| DR-SPL800-FGXP | 25.9 | 890*710*275 | 28.8 |
1PCS/CTN
|
