Name: 800W 6KV 160LPW LED Sports Ground Floodlights Best Lamp For Show Jumping Sink
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SPL800-FGXP
Availability: InStock

Home Products LED Moisture-proof Lamp

800W 6KV 160LPW LED Sports Ground Floodlights Best Lamp For Show Jumping Sink

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPL800-FGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiated
Packaging Details:	Netural Package,OEM/ODM Package Available,1PCS/CTN
Delivery Time:	5-15 Bussiness Day
Payment Terms:	T/T, L/C, Western Union,Paypal
Supply Ability:	30,000pcs/month

Contact Now

Detailed Product Description

Operation Temp/℃:	40°C To + 50°C(-40°F To 122°F)	Storage Temp/℃:	- 40°C To + 65°C(-40°F To 149°F)
Lifespan/hrs:	70.000 Hrs (Ta=30℃@L70)	Rated Input Voltage/V:	AC100~277V, 50/60Hz
Surge Protection:	4~6KV SPD Built In Driver,Exterior SPD 20KV Meanwell Optional	Dimming(Optional):	1-10V, DALI,PWM,Zigbee
Highlight:	160LPW LED Sports Ground Floodlights , 6KV LED Sports Ground Floodlights , 800W Led Sports Field Lighting

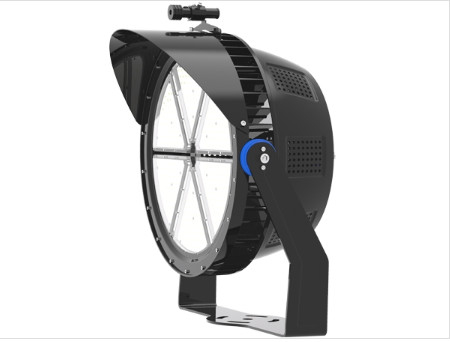

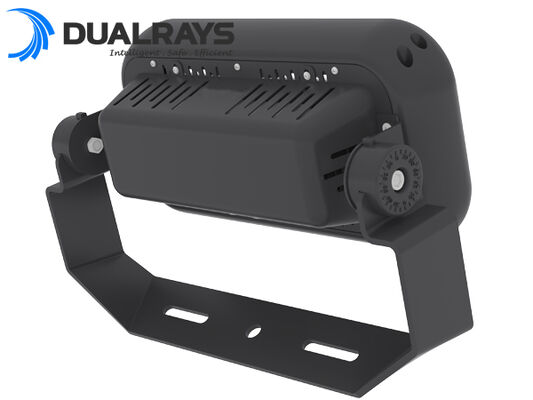

800W LED Sport Flood Light Laser Pointer to Assistant Installation 160LPW

> Surface Spray-paint Finish,Oxidation/Corrosion/Acid Resistant；

> Multi-scale lens to create well-balanced distribution and reduce glare;

> Shield to Reduce the Light Glare;

> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;

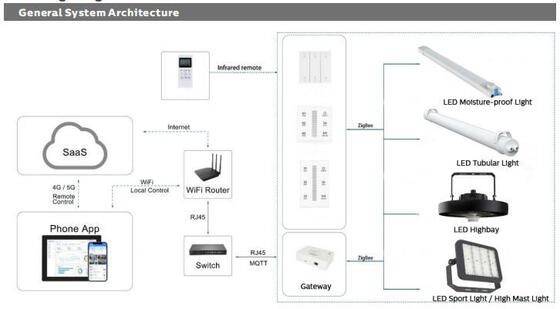

> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;

800W 6KV 160LPW LED Sports Ground Floodlights Best Lamp For Show Jumping Sink 1

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

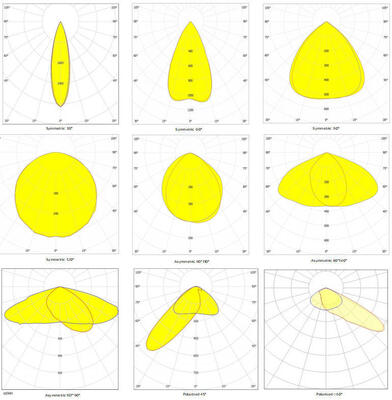

> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;

> Aiming Device: Laser Pointer;

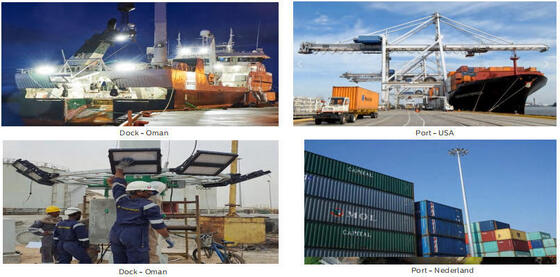

> Logistics areas (Ports)

> Stadiums and Racing tracks

> Public squares

> Apron lighting (Airports), Parking and Industrial areas

> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

(300W) (400W) (500W)
800W 6KV 160LPW LED Sports Ground Floodlights Best Lamp For Show Jumping Sink 8

(600W) (800W) (1000W)

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-EGXP	13.1	590505250	14.2	1PCS/CTN
DR-SPL400-EGXP	16.9	680505250	18.2	1PCS/CTN
DR-SPL500-EGXP	4.8	790505250	23.5	1PCS/CTN
DR-SPL600-EGXP	22.1	830590250	28.4	1PCS/CTN
DR-SPL800-EGXP	30.8	830690250	32.5	1PCS/CTN
DR-SPL1000-EGXP	36.5	830790250	39.8	1PCS/CTN

800W 6KV 160LPW LED Sports Ground Floodlights Best Lamp For Show Jumping Sink 24

Q1: Is there a MOQ?

RE: No MOQ, Sample order for testing is welcome.
Q2: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q3: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

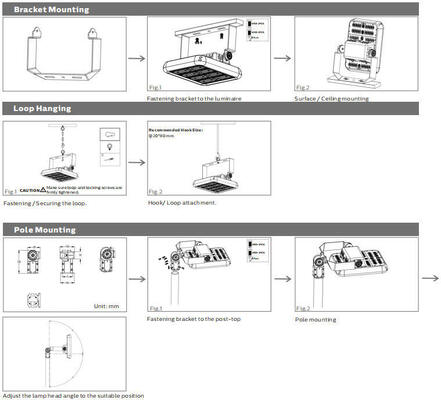

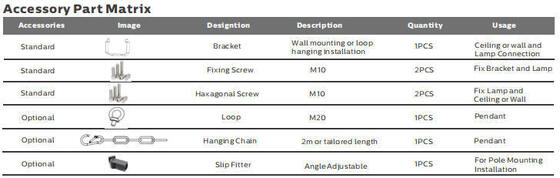

Q4: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q5: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

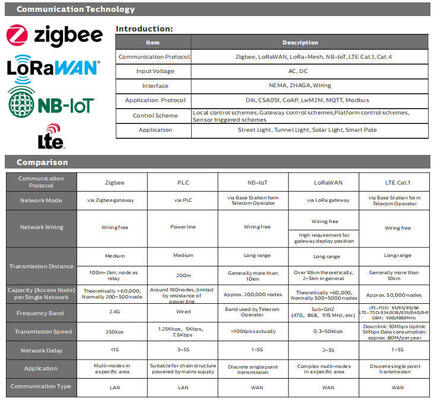

Q6:How to explain “ZigBee“ ?

RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.

Q7:How to explain “lumen output “ ?

RE: The total lumens emitted of a light source, system, or solution.

800W 6KV 160LPW LED Sports Ground Floodlights Best Lamp For Show Jumping Sink 25
