SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting

  • SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting
  • SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting
  • SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting
SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-SPL800-FGXP
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiated
Packaging Details: Netural Package,OEM/ODM Package Available,1PCS/CTN
Delivery Time: 5-15 Bussiness Day
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 30,000pcs/month
Contact Now
Detailed Product Description
Operation Temp/℃: 40°C To + 50°C(-40°F To 122°F) Storage Temp/℃: - 40°C To + 65°C(-40°F To 149°F)
Lifespan/hrs: 70.000 Hrs (Ta=30℃@L70) Rated Input Voltage/V: AC100~277V, 50/60Hz
Surge Protection: 4~6KV SPD Built In Driver,Exterior SPD 20KV Meanwell Optional Dimming(Optional): 1-10V, DALI,PWM,Zigbee
Highlight:

800W Waterproof Led Flood Lights

,

SMD3030 Waterproof Led Flood Lights

,

Symmetrical 20° Led Stadium Floodlights

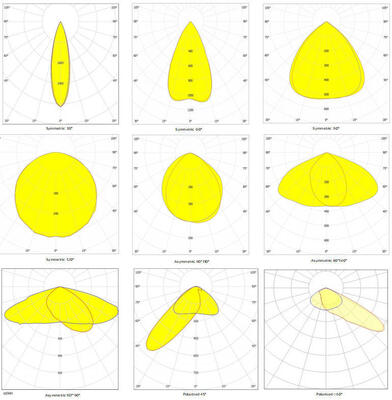

800W LED Sport Flood Light Symmetrical 20°/30°/60°/90° Asymmetrical 140*60° optics



> High Brightness LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs,Meanwell HLG / ELG Driver Optional;
> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity；
> IP65 / IK08 Protection;
> Symmetrical 25°/40°/50°/90° beam angle optional;

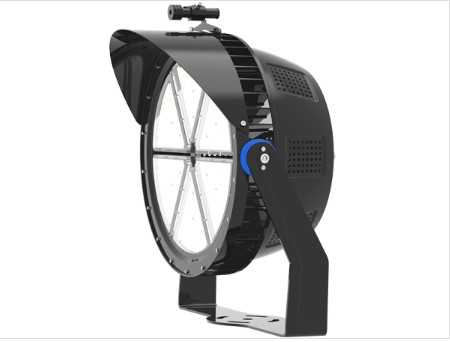

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 0

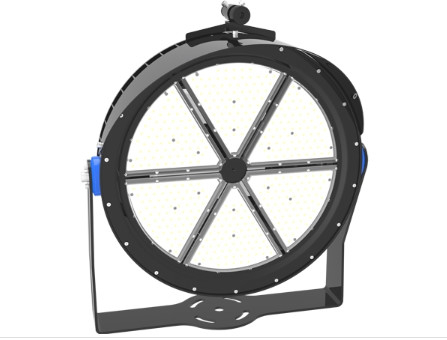

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 1

Options:
> Driver: Meanwell ELG/HLG driver;

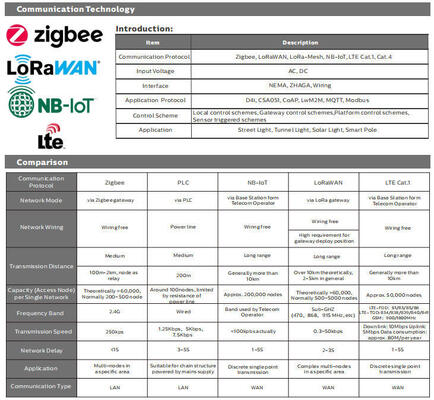

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;
> Aiming Device: Laser Pointer;

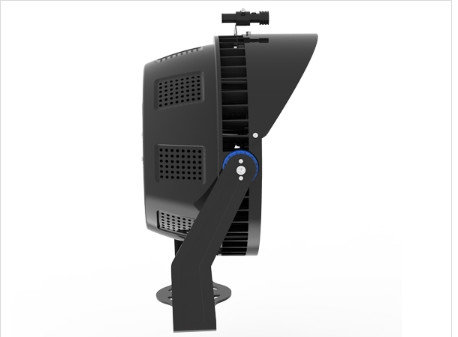

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 2

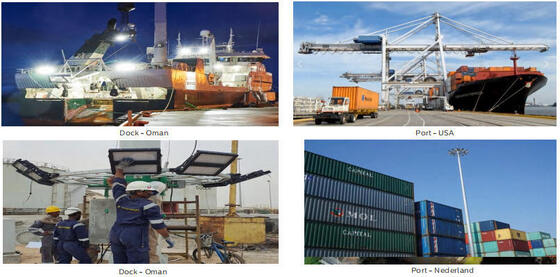

> Logistics areas (Ports)
> Stadiums and Racing tracks
> Public squares
> Apron lighting (Airports), Parking and Industrial areas
> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)


SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 3

Model No.
 DR-SPL300-FGXP DR-SPL400-FGXP DR-SPL600-FGXP DR-SPL800-FGXP
System Watts/W
 300W 400W 600W 800W
System Efficiency/LPW
 150LPW
Lumen Output/lm
 45.000±5% 60.000±5% 90.000±5% 120.000±5%
Rated Input Voltage/V
 AC100~277V, 50/60Hz
LEDs Light Source
 SMD5050
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 30°/60°/90°
UGR
 <25
Surge Protection
 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Meanwell ELG / HLG Optional
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+PC
Lifespan/hrs
 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available


SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 4

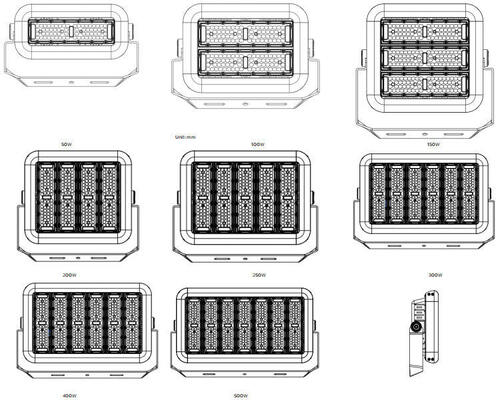

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 5 SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 6 SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 7
(300W) (400W) (500W)
SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 8 SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 9 SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 10
(600W) (800W) (1000W)

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 11
SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 12
SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 13
SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 14
SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 15

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 16
SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 17

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 18

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 19

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 20

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-SPL300-EGXP
13.1
590*505*250
14.2
1PCS/CTN
DR-SPL400-EGXP
16.9
680*505*250
18.2
1PCS/CTN
DR-SPL500-EGXP
4.8
790*505*250
23.5
1PCS/CTN
DR-SPL600-EGXP
22.1
830*590*250
28.4
1PCS/CTN
DR-SPL800-EGXP
30.8
830*690*250
32.5
1PCS/CTN
DR-SPL1000-EGXP
36.5
830*790*250
39.8
1PCS/CTN

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 21
SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 22

SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 23



SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting 24
