| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-FL300-CGXP |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotaited |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Warranty: | 5 Years | Efficiency: | 130LPW |
|---|---|---|---|
| CRI: | >80 | CCT: | 3000K,4000K,5000K,5700K |
| Wattage: | 50W,100W,150W,200W,300W | Input Voltage: | AC100V~277V,50/60Hz |
| High Light: | 300 Watt Stadium LED Floodlights,130LPW Stadium LED Floodlights,Adjustable Flange Plate LED Floodlights |
||

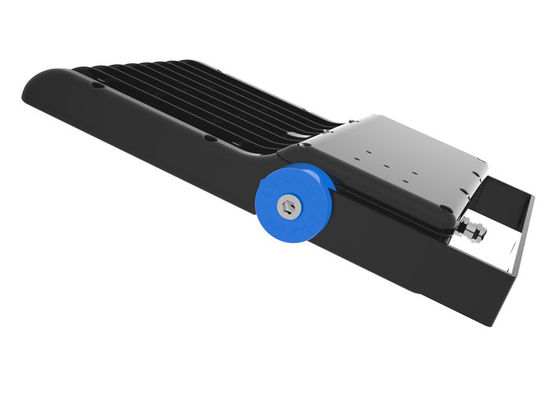

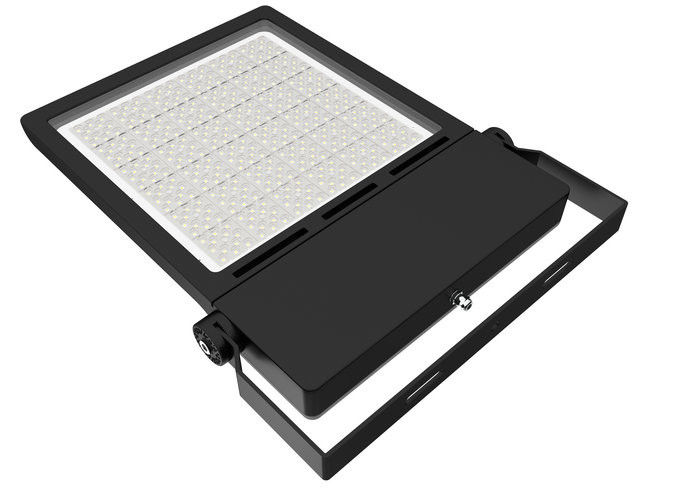

300 Watt Stadium LED Slim Floodlights Adjustable Flange Plate for the Optimal Lighting Position
LED Slim Floodlights Feature:
> Built-in Plug and Play Motion Sensor with Compact Structure;
> IP65 / IK10 Protection;
> 4mm Thickness Toughened Glass for Double Protection and Self-clean;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Breathing Valve Balances Air Presure Between Insdie and Outside to Avoid Water Permeation;
> No UV or IR and completely mercury free;
Advantages:
* Tens of R&D engineers with more than 10 years experience in LED luminaires industry;
* Provide Dialux software for lighting design project for our customers;
* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction.
* All products comply at least 3 years;
> Roundabouts and motorway junctions
|
Model No.
|
DR-FL050-CGXX | DR-FL100-CGXX | DR-FL150-CGXX | DR-FL200-CGXX | DR-FL300-CGXX |
|
System Watts/W
|
50W | 100W | 150W | 200W |
300W
|
|
System Efficiency/LPW
|
120~125LPW | ||||
|
Lumen Output/lm
|
6.500±5% | 12.500±5% | 18.750±5% | 25.000±5% | 37.500±5% |
|
Rated Input Voltage/V
|
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
|
LEDs Light Source
|
SMD3030 | ||||
|
SDCM
|
<5 | ||||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | ||||
|
Power Factor
|
>0.95 | ||||
|
THD
|
<10% | ||||
|
Beam Angle(Optional)
|
Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional | ||||
|
UGR
|
<25 | ||||
|
Surge Protection
|
6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | ||||
|
LED Driver
|
Sosen,Meanwell ELG / HLG Optional | ||||
|
IP Rating
|
IP65 | ||||
|
Dimming(Optional)
|
1-10V, DALI,PWM,Zigbee for Option | ||||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | ||||
| Sensor (Optional) | Motion Sensor | ||||
|
Protection Class
|
ClassⅠ | ||||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | ||||
|
Material
|
Aluminum+Toughened Glass | ||||
|
Lifespan/hrs
|
62.000 Hrs (Ta=30℃@L70) | ||||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | ||||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | ||||
| Switching Cycles | 100,000 Times | ||||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
300W
|
|
|
A / mm
|
389
|
389
|
437
|
493
|
582
|
|
|
B / mm
|
297
|
297
|
346
|
379
|
444
|
|
|
C / mm
|
57
|
57
|
57
|
57
|
60
|
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-FL050-CGXX
|
3.6
|
355*350*165
|
4.5
|
1PCS/CTN
|
|
DR-FL100-CGXX
|
3.8
|
355*350*165
|
4.7
|
1PCS/CTN
|
|
DR-FL150-CGXX
|
4.5
|
415*410*175
|
5.8
|
1PCS/CTN
|
|
DR-FL200-CGXX
|
5.7
|
475*470*195
|
7.3
|
1PCS/CTN
|
|
DR-FL300-CGXX
|
9.3
|
475*470*195
|
11.5
|
1PCS/CTN
|
