Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-FL50-CGXP |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotaited |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50000PCS/Month |
Warranty: | 5 Years | Efficiency: | 130LPW |
---|---|---|---|
CRI: | >80 | CCT: | 3000K,4000K,5000K,5700K |
Wattage: | 50W,100W,150W,200W,300W | Input Voltage: | AC100V~277V,50/60Hz |
High Light: | LED Sports Ground Floodlights 150W,5700K LED Sports Ground Floodlights,ADC12 AL Led Football Floodlights |

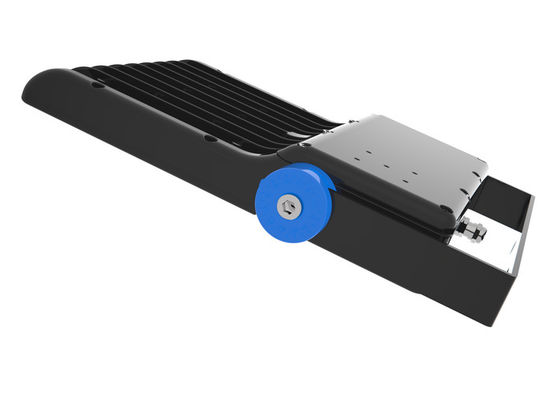

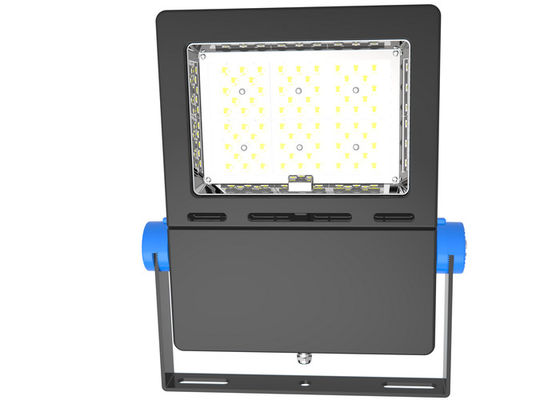

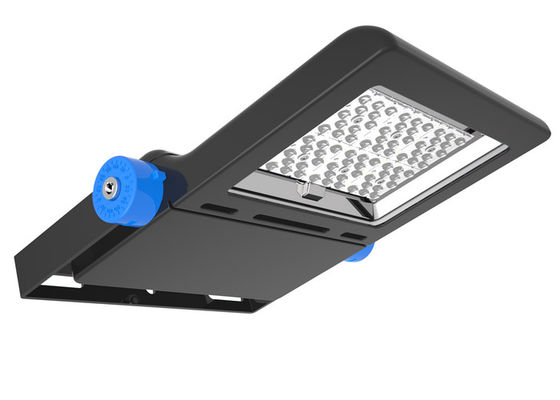

150 Watt Stadium LED Slim Floodlights Precision Integrated Die-casting ADC12 AL
LED Slim Floodlights Feature:
> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;
> High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell ELG/HLG Driver;
> Built-in Plug and Play Motion Sensor with Compact Structure;
> IP65 / IK10 Protection;
> Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional;
> Surface Electrostatic Spraying Finish,Oxidation/Corrosion/Acid Resistant.
Advantages:
* Tens of R&D engineers with more than 10 years experience in LED luminaires industry;
* Provide Dialux software for lighting design project for our customers;
* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction.
* All products comply at least 3 years;
Model No.
|
DR-FL050-CGXX | DR-FL100-CGXX | DR-FL150-CGXX | DR-FL200-CGXX | DR-FL300-CGXX |
System Watts/W
|
50W | 100W | 150W | 200W |
300W
|
System Efficiency/LPW
|
120~125LPW | ||||
Lumen Output/lm
|
6.500±5% | 12.500±5% | 18.750±5% | 25.000±5% | 37.500±5% |
Rated Input Voltage/V
|
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
LEDs Light Source
|
SMD3030 | ||||
SDCM
|
<5 | ||||
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
CRI/Ra
|
>70Ra (>80Ra for Option) | ||||
Power Factor
|
>0.95 | ||||
THD
|
<10% | ||||
Beam Angle(Optional)
|
Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional | ||||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
300W
|
|
A / mm
|
389
|
389
|
437
|
493
|
582
|
|
B / mm
|
297
|
297
|
346
|
379
|
444
|
|
C / mm
|
57
|
57
|
57
|
57
|
60
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
DR-FL050-CGXX
|
3.6
|
355*350*165
|
4.5
|
1PCS/CTN
|
DR-FL100-CGXX
|
3.8
|
355*350*165
|
4.7
|
1PCS/CTN
|
DR-FL150-CGXX
|
4.5
|
415*410*175
|
5.8
|
1PCS/CTN
|
DR-FL200-CGXX
|
5.7
|
475*470*195
|
7.3
|
1PCS/CTN
|
DR-FL300-CGXX
|
9.3
|
475*470*195
|
11.5
|
1PCS/CTN
|
Q1: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.
Q2: Do you offer mounting accessories?
RE: Yes, please contact us for details.
Q3: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.
Q4: Can I have samples to test ?
RE: Yes,sure. Welcome to order samples for evaluation before bulk order.
Q5. What are the certificates you have currently?
RE: All of our LED luminaries comply with CE,RoHS standards,and for the leading products,it is also TUV,ENEC,VDE,SAA,C-Tick,LM79,LM80,CB listed
