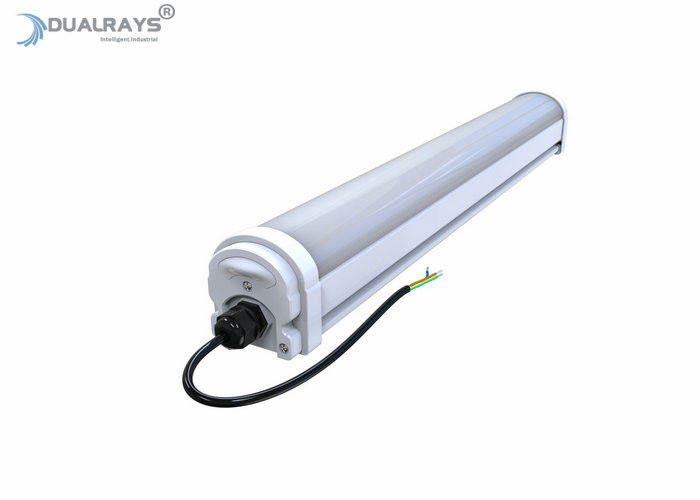

Name: 40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: D2 Series
Availability: InStock

Home Products LED Moisture-proof Lamp

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	D2 Series

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiated
Packaging Details:	Netural Package,color box package,8PCS/CTN,L1570*W360xH200mm
Delivery Time:	5-15 business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

LEDs Light Source:	SMD2835	Power Factor:	>0.96
Junction Temperature:	<80℃	Material:	Aluminium Alloy
IP Rating:	IP66	Life Span:	50,000 Hours
Highlight:	dust proof light fixture , vapor proof led light

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center

Detailed Product Description

LEDs Light Source :	SMD2835	IP Rating:	IP66
Power Factor:	>0.96	AC Input Vol:	AC200~277V 50-60Hz
Beam Angle(Optional):	120°	CCT/K:	3000/4000/5000/5700K
LEDs Typ:	SMD2835	Warranty:	3 Years

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 0

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 1

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 2

1. High strength engineering plastic light body,durable and good heat dissipation efficiency;

2. IK09 and 5VA rated shatter-proof optically enhanced diffuser (Clear/Frosted cover optics for option) and stainless-steel clips;

3. High output lighting efficiency 160LPW upmost；

4. PFC function,0-10V,DALI dimming and PIR sensor；

5. Water-proof; Dust-proof; Damp-proof; Vapor-proof；

6. BOKE flicker-free constant current driver is isolated away from the heat source of the LEDs,keeps the stability and performance of the driver for long life；

1. Workshop
2. School
3. Conference
4. Airport hall

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 4

Character/Length	2ft	4ft	5ft
A	600mm	1200mm	1500mm
B	74mm	74mm	74mm
C	74m	74mm	74mm

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 6

(I) Emergency Function

Model No.	Emergency Time (Hours)	Emergency Power (W)	Battery Parameters
DR-TPL020-BG21	3/2/1 hours for option	10W	7.4V/4400/3000/1500mAh Lithium Battery
DR-TPL040-BG41	3/2/1 hours for option	10W	11.1V/6000/4000/2000mAh Lithium Battery
DR-TPL050-BG51	3/2/1 hours for option	10W	11.1V/8800/6000/3000mAh Lithium Battery

1. Interior circuit with emergency device has been already connected;

2 4 wire output.(EuMarket:Blue-Neutralwire/Black-Livewire/Brown-Switchwire/Yellow&Green-Earthwire)

3 Indicator color(Green–main power, Yellow–malfunction,Red-Charging)

4 Battery can be recharged at least 500 times.In order to maintain the battery,it must be discharged every 3 months.
Remark: MSDS Test Report is available.

(II) 0-10V Dimming

(II) Microwave Sensor 2 Stage Dimming Type

a. With 5.8G Hz microwave technology, stable detection performance and long life time.

b. Detection zone Max. is 16m*8m (D*H) MC003V/D.

Stand-by dimming level in 10% / 20% / 30% / 40% / 50%.

Stand-by period has 5s / 5min / 10min / 30min / 1h / Disable.

c. Water proof sensor with IP65 rating.

d. Built-in adjustable daylight sensor.

e. 2 step dimming function 100% ---> low light (Never turn off)

f. 3 step dimming function

100% ---> low light(10%,20%,30%,40%,50%) ---> off

g. Automatic dimming when used in combination with 1-10V dimmable control gears.

Packaging Information

Size	Net Weight/PCS	Outer Carton Size	G.W	Quantity/CTN
2ft	0.9kg	L670xW440xH200mm	13.2kg	10PCS
4ft	1.8kg	L1270xW360xH200mm	17.5kg	8PCS
5ft	2.1kg	L1570xW360xH200mm	20.6kg	8PCS

Shipment
40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 11

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 12

Q1: What is the warranty for the D2 LED triproof light?

RE: For the D2 Series LED triproof light,Dualrays provide 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: 10PCS

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.

Q9: What is the CRI?

RE: Ra>80 for standard.

Q10: IP Rating?

RE: IP65.

Q11: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?

RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?

RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q14: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q15:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 15

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 16

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 17

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 18

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 19

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 20

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center 22

Marketing Department

Tel: 0086-755-2306 6948

Fax: 0086-755-6164 1072

Zip Code: 518103

Contact person: Vera Fu
Email: sales06@dualrays.com

Add: 3rd Floor,Building A3 | Tianrui Industrial Park| #35,Fuyuan 1st Road,Fuyong Town,Bao'an Dist | Shenzhen 518103
