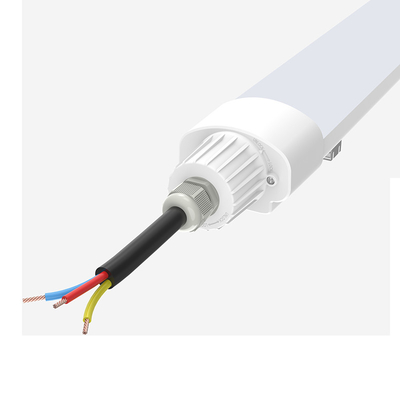

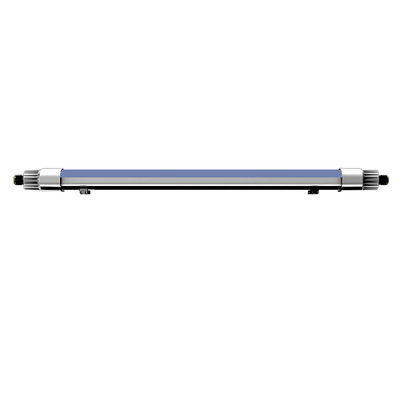

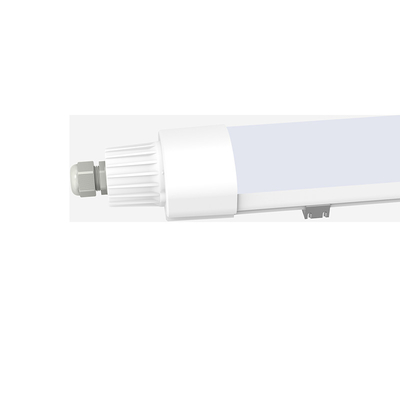

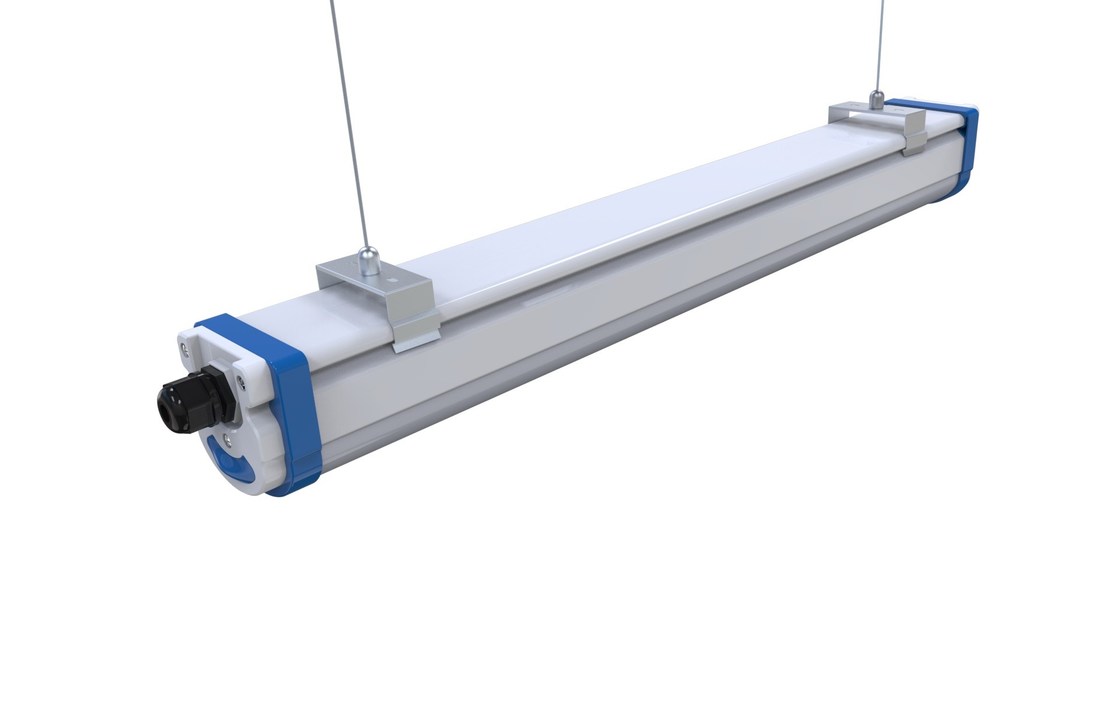

160LPW Efficiency Dust Proof Light Fixtures Full Plastic Housing With PIR Sensor

160LPW Efficiency Dust Proof Light Fixtures Full Plastic Housing With PIR Sensor

    • 160LPW Efficiency Dust Proof Light Fixtures Full Plastic Housing With PIR Sensor
  • 160LPW Efficiency Dust Proof Light Fixtures Full Plastic Housing With PIR Sensor

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: DUALRAYS
    Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Model Number: D2 Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 2PCS
    Price: Negotiated
    Packaging Details: Netural Package,color box package
    Delivery Time: 5-15 business days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Material: Plastic Junction Temperature: <80℃
    Warranty: 3 Years Installation Option: Bracket/Suspending
    IP Rating: IP66 Life Span: 50,000 Hours
    High Light:

    explosion proof led lights

    ,

    dust proof light fixture

    160LPW Efficiency Dust Proof Light Fixtures Full Plastic Housing With PIR Sensor





    Detailed Product Description

    Lamp Body Material: Plastic,PC Installation Option: Bracket/Suspending
    Storage Temperature: -40 ~ +85℃ AC Input Vol: AC200~277V 50-60Hz
    Beam Angle: 120° CCT/K: 3000/4000/5000/5700K
    Application: Train/Bus Station,Supermarket,Airport hall Warranty: 3 Years


    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty



    160LPW Efficiency Dust Proof Light Fixtures Full Plastic Housing With PIR Sensor 1

    1. Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver;

    2. IP66 and IK10 for all industrial areas of application;

    3. 3 years warranty

    4. CE,RoHS Certificates;

    5. Convenient for install;


    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty
    1. Factory
    2. Shopping Mall
    3. Residential
    4. Airport hall





    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty

    Character/Length
    2ft
    4ft
    5ft
    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty
    A
    600mm
    1200mm
    1500mm
    B
    74mm
    74mm
    74mm
    C
    74m
    74mm
    74mm


    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty

    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty


    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty

    (I) Emergency Function
    Model No.
    Emergency Time (Hours)
    Emergency Power (W)
    Battery Parameters
    DR-TPL020-BG21
    3/2/1 hours for option
    10W
    7.4V/4400/3000/1500mAh Lithium Battery
    DR-TPL040-BG41
    3/2/1 hours for option
    10W
    11.1V/6000/4000/2000mAh Lithium Battery
    DR-TPL050-BG51
    3/2/1 hours for option
    10W
    11.1V/8800/6000/3000mAh Lithium Battery

    1. Interior circuit with emergency device has been already connected;
    2 4 wire output.(EuMarket:Blue-Neutralwire/Black-Livewire/Brown-Switchwire/Yellow&Green-Earthwire)
    3 Indicator color(Green–main power, Yellow–malfunction,Red-Charging)
    4 Battery can be recharged at least 500 times.In order to maintain the battery,it must be discharged every 3 months.
    Remark: MSDS Test Report is available.

    (II) 0-10V Dimming
    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty

    (II) Microwave Sensor 2 Stage Dimming Type
    a. With 5.8G Hz microwave technology, stable detection performance and long life time.
    b. Detection zone Max. is 16m*8m (D*H) MC003V/D.
    Stand-by dimming level in 10% / 20% / 30% / 40% / 50%.
    Stand-by period has 5s / 5min / 10min / 30min / 1h / Disable.
    c. Water proof sensor with IP65 rating.
    d. Built-in adjustable daylight sensor.
    e. 2 step dimming function 100% ---> low light (Never turn off)
    f. 3 step dimming function
    100% ---> low light(10%,20%,30%,40%,50%) ---> off
    g. Automatic dimming when used in combination with 1-10V dimmable control gears.




    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty
    Packaging Information
    Size
    Net Weight/PCS
    Outer Carton Size
    G.W
    Quantity/CTN
    2ft
    0.9kg
    L670xW440xH200mm
    13.2kg
    10PCS
    4ft
    1.8kg
    L1270xW360xH200mm
    17.5kg
    8PCS
    5ft
    2.1kg
    L1570xW360xH200mm
    20.6kg
    8PCS

    Shipment
    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty
    Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
    time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.


    Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty
    Q1: What is the warranty for the D2 LED triproof light?
    RE: For the D2 Series LED triproof light,Dualrays provide 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

    Q2: What is colour temperature?
    RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
    the warmer the light given by the LED:
    Warm white = 3000±200K
    Natural white = 4000±200K
    Pure white = 5000±200K
    Cool white = 5700±200K

    Q3: Is there a MOQ?
    RE: 10PCS

    Q4: What is the Lead time?

    RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.



    Q5: Can you do DIAlux Simulation?
    RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

    Q6: Do you offer mounting accessories?

    RE: Yes, please contact us for details.



    Q7: Do you offer OEM or ODM?
    RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
    1. We can provide you with our present products with your own label;
    2. We can modify our products as your request;
    3. We can even develop totally new products based on your design;

    Q8: What‘re the chips and drivers used?
    RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.

    Q9: What is the CRI?

    RE: Ra>80 for standard.



    Q10: IP Rating?
    RE: IP65.

    Q11: Labeling ?
    RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

    Q12: Finish color?
    RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

    Q13: Dimming functions?
    RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

    Q14: Is there cheap shipping cost to import to our country?
    RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
    orders,we suggest via air to airport plus our ship partner send to your door.

    Q15:Can we get support if we have our own market position?
    RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
