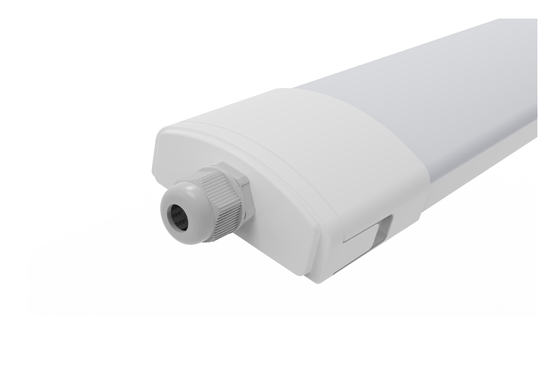

Name: Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-TP020-BHG2XPX
Availability: InStock

Home Products LED Moisture-proof Lamp

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-TP020-BHG2XPX

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiated
Packaging Details:	Netural Package,color box package
Delivery Time:	5-15 business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Model No.:	DR-TP040-AG41	Rated Power/W:	40W
Lumen Maintenance 36000 Hrs:	>95%	CCT/K:	3000/4000/5000/5700/6500K
IP Rating:	IP65	Life Span:	50,000 Hours
Highlight:	explosion proof led lights , dust proof light fixture

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65

Detailed Product Description

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 1

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 2

1. Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency;

2. Single or double wiring and connection;

3. Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional;

4. Installation: Suspension;

5. CE,RoHS Certificates;

6. Convenient for install;

1. Replacement for fluorescent NCF
2. Car parks
3. Indoor Location
4. Airport hall

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 4

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 5

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 7

(I) Emergency Function

1. Interior circuit with emergency device has been already connected;

2. 4 wire output.(EuMarket:Blue-Neutralwire/Black-Livewire/Brown-Switchwire/Yellow&Green-Earthwire)

3. Indicator color(Green–main power, Yellow–malfunction,Red-Charging)

4. Battery can be recharged at least 500 times.In order to maintain the battery,it must be discharged every 3 months.
Remark: MSDS Test Report is available.

(II) 0-10V Dimming

(II) Microwave Sensor 2 Stage Dimming Type

a. With 5.8G Hz microwave technology, stable detection performance and long life time.

b. Detection zone Max. is 16m*8m (D*H) MC003V/D.

Stand-by dimming level in 10% / 20% / 30% / 40% / 50%.

Stand-by period has 5s / 5min / 10min / 30min / 1h / Disable.

c. Water proof sensor with IP65 rating.

d. Built-in adjustable daylight sensor.

e. 2 step dimming function 100% ---> low light (Never turn off)

f. 3 step dimming function

100% ---> low light(10%,20%,30%,40%,50%) ---> off

g. Automatic dimming when used in combination with 1-10V dimmable control gears.

Packaging Information
Shipment
Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 12

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 13

Q1: What is the warranty for the D1 LED triproof light?

RE: For the D1 Series LED triproof light,Dualrays provide 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: 10PCS

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.

Q9: What is the CRI?

RE: Ra>80 for standard.

Q10: IP Rating?

RE: IP65.

Q11: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?

RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?

RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q14: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q15:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 16

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 17

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 18

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 19

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 20

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 21

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Meanwell Driver Vapor Proof LED Light Dualrays Liner 40W 160LPW Efficiency IP65 23

Marketing Department

Tel: 0086-755-2306 6948

Fax: 0086-755-6164 1072

Zip Code: 518103

Contact person: Vera Fu
Email: sales06@dualrays.com

Add: 3rd Floor,Building A3 | Tianrui Industrial Park| #35,Fuyuan 1st Road,Fuyong Town,Bao'an Dist | Shenzhen 518103
