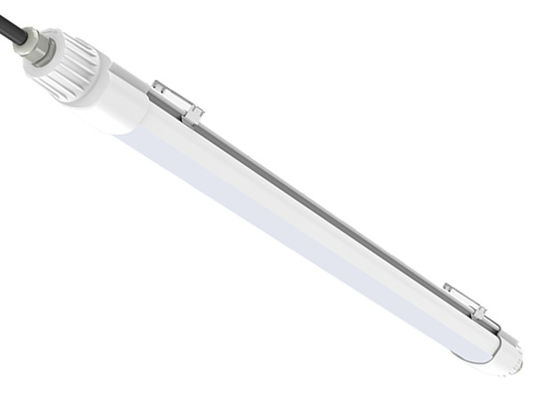

Dualrays D2 Series 20W Industrial IP66 Dust Proof Light Fixtures IK10 Protection Emergency DALI Dimming Optional

Dualrays D2 Series 20W Industrial IP66 Dust Proof Light Fixtures IK10 Protection Emergency DALI Dimming Optional

  • Dualrays D2 Series 20W Industrial IP66 Dust Proof Light Fixtures IK10 Protection Emergency DALI Dimming Optional
  • Dualrays D2 Series 20W Industrial IP66 Dust Proof Light Fixtures IK10 Protection Emergency DALI Dimming Optional
  • Dualrays D2 Series 20W Industrial IP66 Dust Proof Light Fixtures IK10 Protection Emergency DALI Dimming Optional
Dualrays D2 Series 20W Industrial IP66 Dust Proof Light Fixtures IK10 Protection Emergency DALI Dimming Optional
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-TPL020-BG22
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiated
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 50000PCS/Month
Payment Terms: L/C, T/T, Western Union, Paypal
Contact Now
Detailed Product Description
Input Voltage: AC200V-240V Power Effciency: 90%
Power Factor: 0.96 Warranty: 5 Years
LED's Brand: EPISTAR Material: Aluminium Alloy
IP Rating: IP66 Life Span: 50,000 Hours
High Light:

dust proof light fixture

,

vapor proof led light

Dualrays D2 Series 20W Industrial IP66 Dust Proof Light Fixtures IK10 Protection Emergency DALI Dimming Optional

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot





Dualrays D2 Series 20W Industrial IP66 Dust Proof Light Fixtures IK10 Protection Emergency DALI Dimming Optional 1

Dualrays D2 Series 20W LED Tri Proof Light--Detailed Product Description

Model No.: D2 Series Beam Angle: 120°
Power: 20W Protection: IP66, IK10
Dimming Function (Optional): 1-10VDC /DALI / Zigbee LED Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver
Warranty: 5 Years Size: 2ft

Dualrays D2 Series 20W LED Tri Proof Light--Features
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> 1-10V dimming flicker-free driver;
> Single or Double wiring;
> IP66 and IK10 for all industrial areas of application;
> Eco full plastic light design,save your cost and freight;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> Sensor control avaliable;
> No toxic heavy metals, VOC, or mercury were used in the design;
> 5 years warranty;

Dualrays D2 Series 20W LED Tri Proof Light--Options:
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.
> Suspended/Surface mounted/Adjustable installation for option.

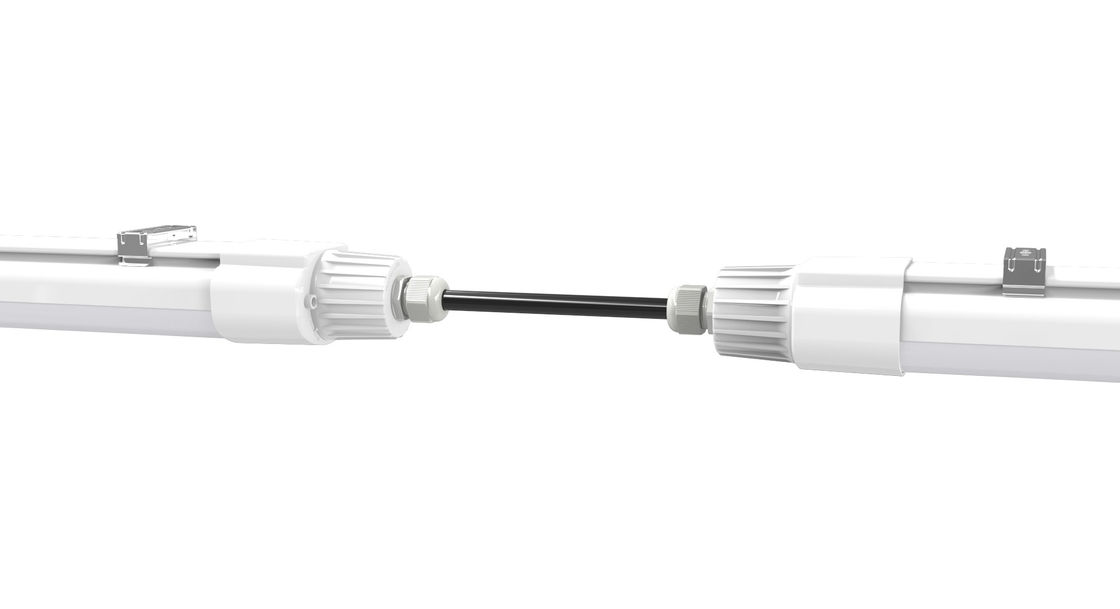

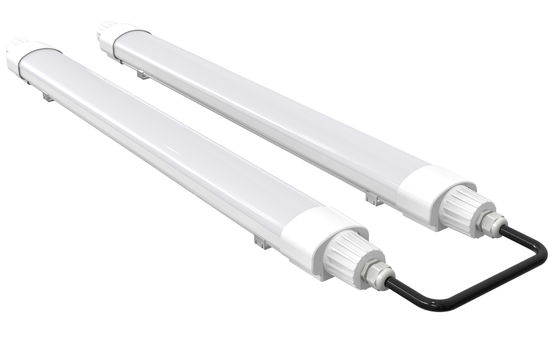

> Single or double wiring and connection.
> Customized supported for special projects.
> Sensor: Daylight Sensor/ Microwave Sensor.
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations


5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

Model No. DR-TP020-BG2XPX DR-TP030-BG4XPX DR-TP040-BG4XPX DR-TP040-BG5XPX DR-TP050-BG5XPX
System Watts/W 20W 30W 40W 40W
50W
System Efficiency/LPW 120LPW / 140LPW Optioanl
Lumen Output/lm 2.400/2.800±5% 3.600/4.200±5% 4.800/5.600±5% 4.800/5.600±5% 6.000/7.000±5%
Rated Input Voltage/V AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source SMD2835
SDCM <6
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >80Ra (>70Ra for Option)
Power Factor >0.94
THD <10%
Beam Angle(Optional) 120°
UGR <22
LED Driver DUALRAYS Own Developed High PF Interior Driver
IP Rating IP65
IK Level IK08
Dimming(Optional) 1-10V
Sensor(Optional) No
Emergency(Optional) No
Protection Class ClassⅠ
Finishing Color(Optional) White RAL9016 Optional
Material PC+PC
Lifespan/hrs 50.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ - 40°C to + 65°C(-40°F to 149°F)
Installation(Optional) Suspension / Ceiling Mounting Optional
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available


5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

Character/Length
2ft
4ft
5ft
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
A
600mm
1200mm
1500mm
B
74mm
74mm
74mm
C
74m
74mm
74mm


5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
(I) Emergency Function


Model No.
Emergency Time (Hours)
Emergency Power (W)
Battery Parameters
DR-TPL020-BG21
3/2/1 hours for option
10W
7.4V/4400/3000/1500mAh Lithium Battery
DR-TPL040-BG41
3/2/1 hours for option
10W
11.1V/6000/4000/2000mAh Lithium Battery
DR-TPL050-BG51
3/2/1 hours for option
10W
11.1V/8800/6000/3000mAh Lithium Battery


5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot


5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
DALI Device
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

DALI Intelligent Control Diagram
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot 5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot


DALI Intelligent Control Operator Interface
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot


5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot



5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot
Packaging Information
