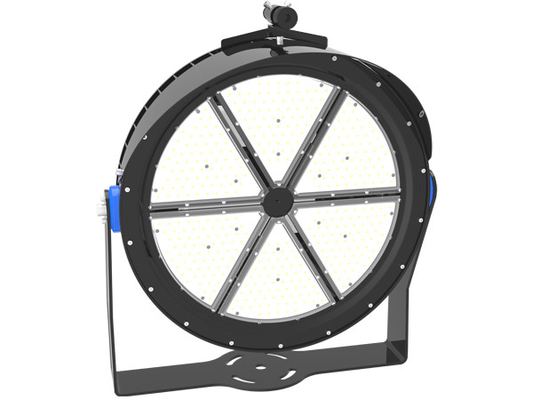

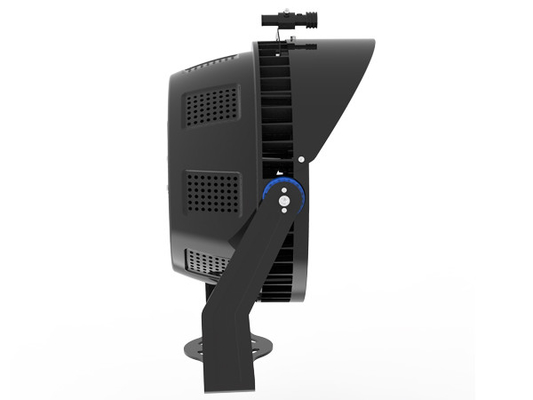

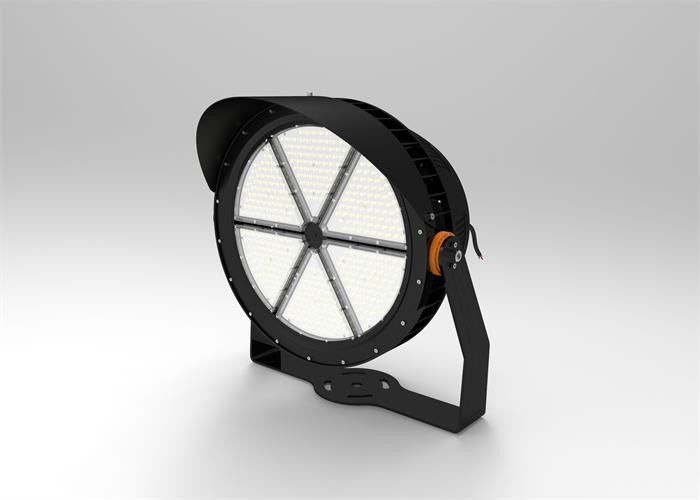

High Power LED Modular Flood lights 50000Hrs Life Span

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-SPL400-FG2

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Wattage:	400W	Flux:	60000lm
Efficiency:	150lm/W	Installation:	Bracket
Life Span:	50000Hrs	Housing:	Die-Casting Al
High Light:	waterproof led flood lights , led yard flood lights

High Power LED Modular Flood lights 50000Hrs Life Span

* Aiming device Laser Pointer;

* 30°/60°/90° beam angle for options;

* 400W 45000lm, for 800W MHL equivalent;
* ±360° adjustable bracket;

* TM21(L80>50000hrs);

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	300W	400W	600W	800W
A / mm	Ø445	Ø445	Ø537	Ø537
B / mm	321	321	373	373

400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
High Power LED Modular Flood lights 50000Hrs Life Span 9

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-FGXP	12.4	610510250	13.8	1PCS/CTN
DR-SPL400-FGXP	12.9	610510250	14.7	1PCS/CTN
DR-SPL600-FGXP	25.3	890710275	27.6	1PCS/CTN
DR-SPL800-FGXP	25.9	890710275	28.8	1PCS/CTN
