| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,TUV/GS,LM79,LM80 |
| Model Number: | DR-TPL050-BG5X |
| Minimum Order Quantity: | 8PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Netural Package/OEM and ODM Package Available,8PCS/CNT |
| Delivery Time: | 5-15 business days |
| Supply Ability: | 100,000PCS/Month |
| LEDs Typ: | SMD 2835 | CCT/K: | 3000K-6500K |
|---|---|---|---|
| Ra: | >82Ra | Warranty: | 5 Years |
| Operation Temperature: | -15 ~ +50℃ | Efficiency: | 160LPW |
| High Light: | dust proof light fixture,vapor proof led light |
||

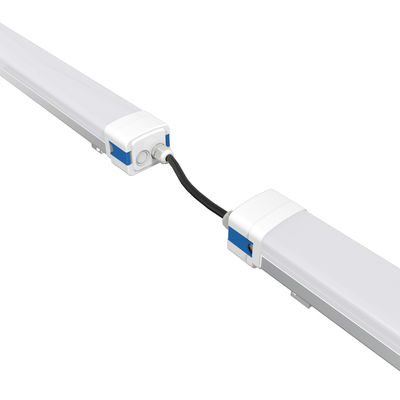

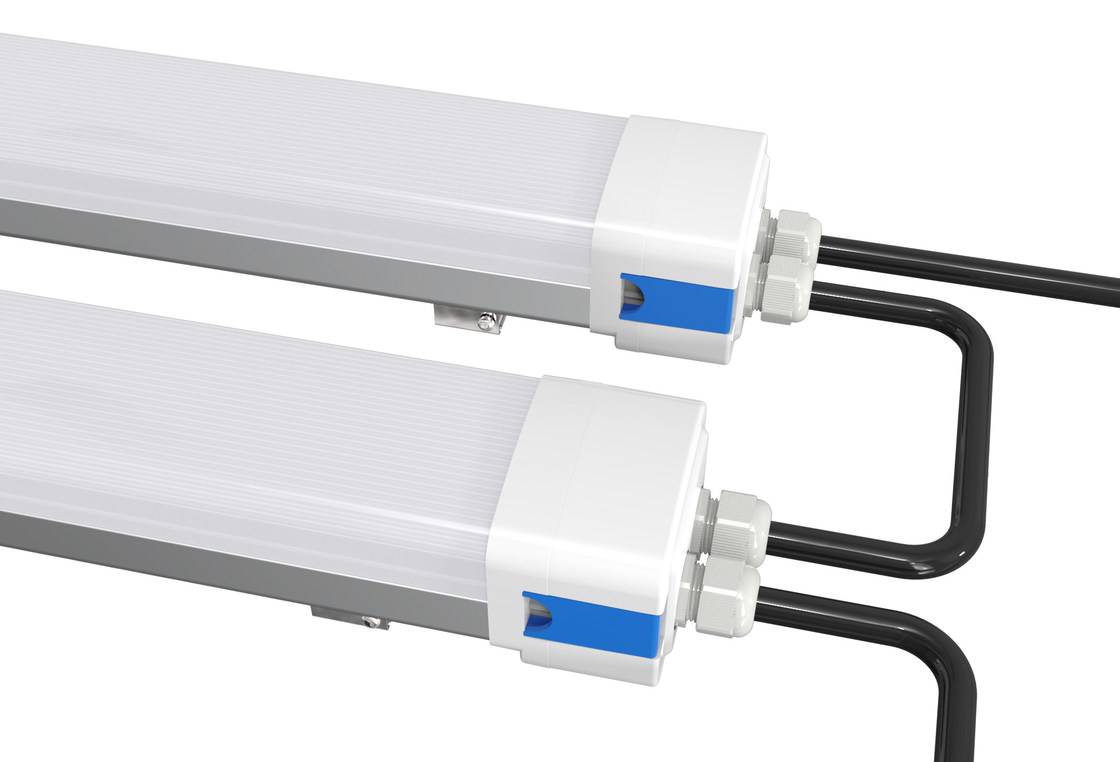

LED Tri Proof Light Feature:
* Luminaire coated in an environmentally friendly polyester powder formulated in a silvery,black and white finish;
* No toxic heavy metals, VOC, or mercury were used in the design;
* 120LPW Proline Version,150LPW Primeline Version for option,CRI>80Ra,more sufficient;
* 270°adjustable European Bracket for actual lighting direction;
* Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
* Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.
| Item | Symbol | 2ft/20W | 4ft/40W | 5ft/50W |
| Model No | / | DR-TPL020-BG21 | DR-TPL040-BG41 | DR-TPL050-BG51 |
| Rated Power | W | 20 | 40 | 50 |
| LEDs Typ/Qty |
SMD 2835 |
144PCS | 273PCS | 312 PCS |
| Luminous Flux |
Clear Frost |
3,200±5% 3,000±5% |
6,400±5% 6,000±5% |
8,000±5% 7,500±5% |
| Efficiency |
Clear Frost |
Typ.160 Typ.150 |
Typ.160 Typ.150 |
Typ.160 Typ.150 |
| Lumen Maintenance @ 6000 hrs | Hours | >80% | ||
| Switching Cycle before Failure | Times | 100,000 | ||
| Life Span | Hours | 50,000 | ||
| Warranty | Years | 3 years | ||
| Operation Temperature | ℃ | -15 ~ +50℃ | ||
| Storage Temperature | ℃ | -25 ~ +55℃ | ||
| Model No. | DR-TP020-EG2XPX | DR-TP040-EG4XPX | DR-TP050-EG4XPX | DR-TP060-EG5XPX | DR-TP080-EG5XPX |
| System Watts/W | 20W | 40W | 50W | 60W |
80W
|
| System Efficiency/LPW | 130LPW / 160LPW Optioanl | ||||
| Lumen Output/lm | 2.600/3.200±5% | 5.200/6.400±5% | 6.500/8.000±5% | 7.800/9.600±5% | 10.400/12.800±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
| LEDs Light Source | SMD2835 | ||||
| SDCM | <6 | ||||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
| CRI/Ra | >80Ra (>70Ra for Option) | ||||
| Power Factor | >0.91 | ||||
| THD | <10% | ||||
| Beam Angle(Optional) | 120° | ||||
| UGR | <22 | ||||
| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional | ||||
| IP Rating | IP65 | ||||
| IK Level | IK08 | ||||
| Dimming(Optional) | 1-10V, DALI,Zigbee | ||||
| Sensor(Optional) | Daylight sensor/Microwave Sensor | ||||
| Emergency(Optional) | 5W@3 Hours or Customized | ||||
| Protection Class | ClassⅠ | ||||
| Finishing Color(Optional) | White RAL9016 Optional | ||||
| Material | AL+PC | ||||
| Lifespan/hrs | 62.000 Hrs (Ta=30℃@L70) | ||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
| Installation(Optional) | Suspension / Ceiling Mounting Optional | ||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
(I) Emergency Function
Q1.How do we explain “CRI” ?
RE: A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.
Q2.Do you know “dali “?
RE: Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.
Q3.Why we use the high power LED ?
RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.
Q4.What’s LED Chips ?
RE: The light producing semiconductor device that may or may not be incorporated into an LED.
Q5.What’s Smart Lighting ?
RE: Automated lighting control using sensors and /or scheduling switches.
Q6. How is your production capacity?
RE: Our output value is 10 million USD
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
