Name: 100W 13000lm Modular LED Flood Light 5000K 130°x60° for ground and crossing
Brand: DUALRAYS
SKU: DR-FL100-CG2
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (158 reviews)

Home Products SMD LED Floodlight

100W 13000lm Modular LED Flood Light 5000K 130°x60° for ground and crossing

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-FL100-CG2

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Wattage:	100W	Input:	AC90~305V
Efficiency:	150lm/W	Chips:	LUXEON 3030
Beam:	15° /45° /60°/90° /30° 70° /130° 60° /140° *80°	CCT:	3000-6500K
High Light:	outdoor led flood lights , led yard flood lights

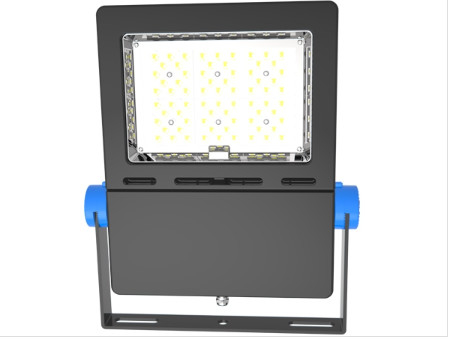

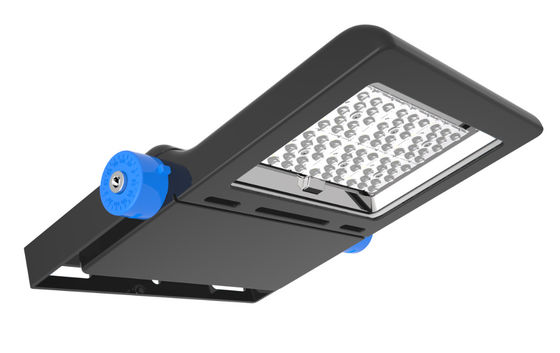

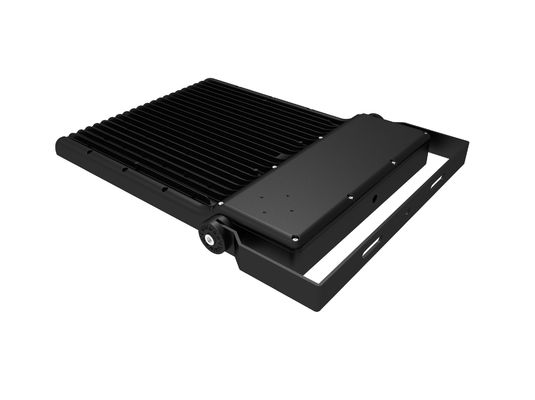

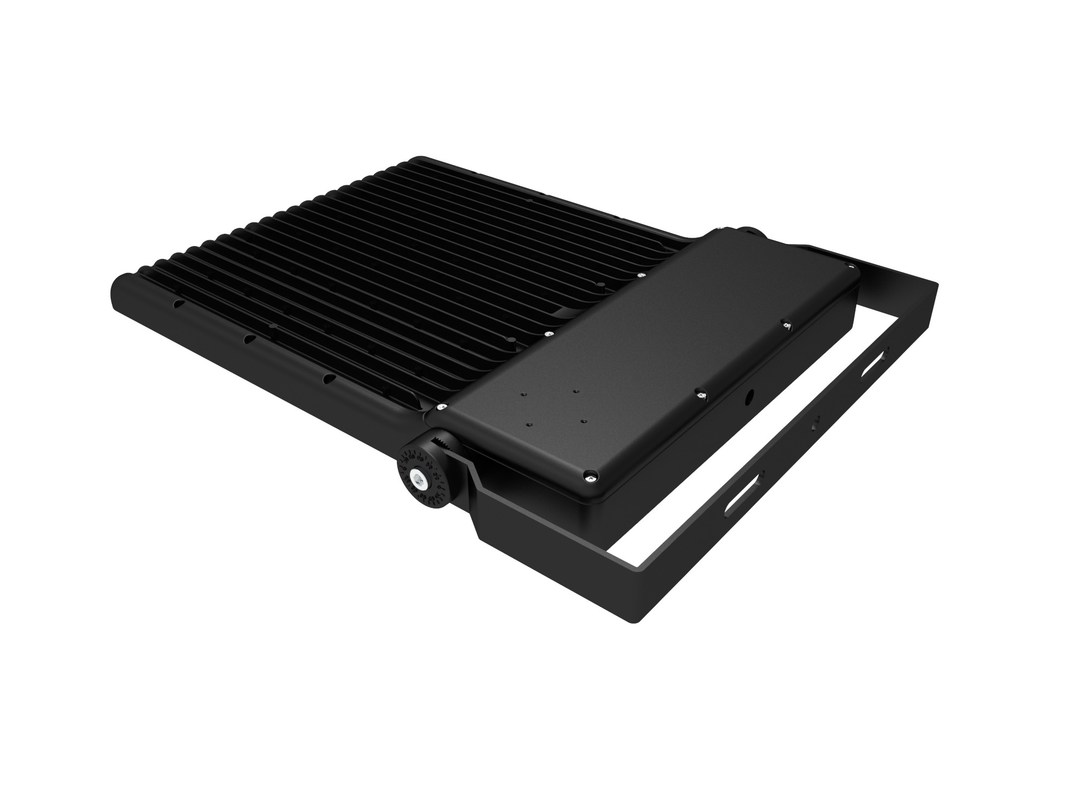

100W 13000lm Modular LED Flood Light 5000K 130°x60° for ground and crossing

100W 13000lm Modular LED Flood Light 5000K 130°x60° for ground and crossing 0

> 100W LED Flood Light Flat 13500LM for Outdoor Security and Decoration

> Built-in Plug and Play Motion Sensor with Compact Structure;

> L70/B20(25℃)65.000h;

100W 13000lm Modular LED Flood Light 5000K 130°x60° for ground and crossing 1

100W 13000lm Modular LED Flood Light 5000K 130°x60° for ground and crossing 2

Model No.	DR-FL050-CGX	DR-FL100-CGX	DR-FL150-CGX	DR-FL200-CGX	DR-FL300-CGX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	6.800±5%	13.500±5%	20.000±5%	27.000±5%	33.200±5%
Efficiency/ lm/w	135LM/W
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	3000K/4000K/5000K/5700K/6500K
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30° / 60° / 90° / 120°
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
LED Driver	Sosen, Meanwell ELG/ HLG
IP Rating	IP65
Dimming(Optional)	0/1-10V/DALI/Zigbee
Emergency(Optional)	Available
Protection Class	ClassⅠ
Material	Aluminum+PC
Lifespan/hrs	>62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	-40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Ceiling Mounting, Wall Mounting, Ground Mounting
Certificate	CE(EMC+LVD), RoHS, TUV/GS, D-Mark, SAA, RCM Available;

100W 13000lm Modular LED Flood Light 5000K 130°x60° for ground and crossing 5

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

200W 30000lm Modular LED Sports Ground Floodlights With Al Heat Sink Structure

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
