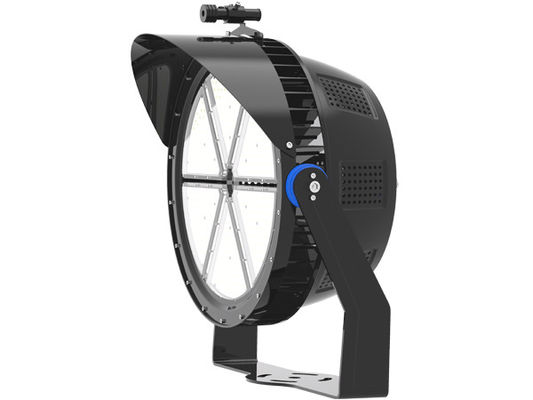

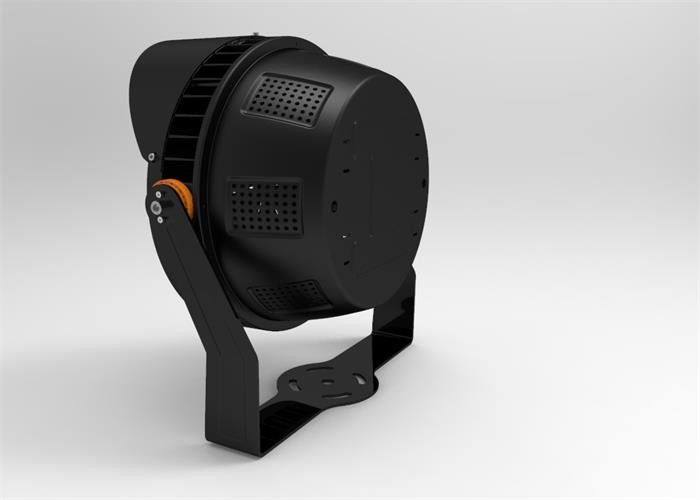

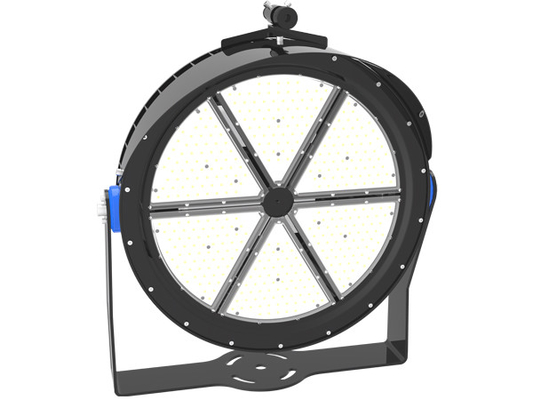

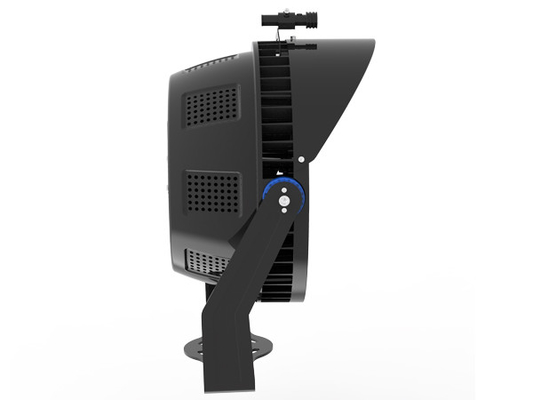

Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection

Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection

  • Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection
  • Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection
  • Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection
  • Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection
Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-SPL800-FG2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Rated Wattage: 800W CE Certificate: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB And D-Mark Available
IP Class: IP66 IK Grade: IK08
Beam: 60°/90° /30° CCT: 3000-6500K
High Light:

outdoor led flood lights

,

led yard flood lights

Modular LED Sports Ground Flood lights 800W CE ROHS Listed​



Outdoor Soccer Field LED Stadium Floodlights Playground Lighting 500W 150LPW Efficiency
Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 1
Features:
* Aiming device Laser Pointer;
* 30°/60°/90° beam angle for options;
* 400W 45000lm, for 800W MHL equivalent;
* ±360° adjustable bracket;
* TM21(L80>50000hrs);

Outdoor Soccer Field LED Stadium Floodlights Playground Lighting 500W 150LPW Efficiency
Model No.
DR-SPL300-FGXP DR-SPL400-FGXP DR-SPL600-FGXP DR-SPL800-FGXP
System Watts/W
300W 400W 600W 800W
System Efficiency/LPW
150LPW
Lumen Output/lm
45.000±5% 60.000±5% 90.000±5% 120.000±5%
Rated Input Voltage/V
AC100~277V, 50/60Hz
LEDs Light Source
SMD5050
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
30°/60°/90°
UGR
<25
Surge Protection
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Meanwell ELG / HLG Optional
IP Rating
IP65
Dimming(Optional)
1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+PC
Lifespan/hrs
70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Outdoor Soccer Field LED Stadium Floodlights Playground Lighting 500W 150LPW Efficiency
Character/Power
300W
400W
600W
800W
Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 4Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 5
A / mm
Ø445
Ø445
Ø537
Ø537
B / mm
321
321
373
373

400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 7


400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 9
400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts

400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 12

Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 13

Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 14

Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 15

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-SPL300-FGXP
12.4
610*510*250
13.8
1PCS/CTN
DR-SPL400-FGXP
12.9
610*510*250
14.7
1PCS/CTN
DR-SPL600-FGXP
25.3
890*710*275
27.6
1PCS/CTN
DR-SPL800-FGXP 25.9 890*710*275 28.8
1PCS/CTN


Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 16
Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 17

Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 18


Modular LED Sports Ground Flood lights 800W CE ROHS Listed IP65 / IK08 Protection 19

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station



200W 30000lm Modular LED Sports Ground Floodlights With Al Heat Sink Structure

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket 5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

(DIALUX Simulation)
  Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
(Partnership)
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
