Name: 800W LED Flood Light For Sports 120000lm In Stadium Field Ground Led Sports Floodlights
Brand: DUALRAYS
SKU: DR-FL750-EGXP
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (147 reviews)

Home Products LED Sports Ground Floodlights

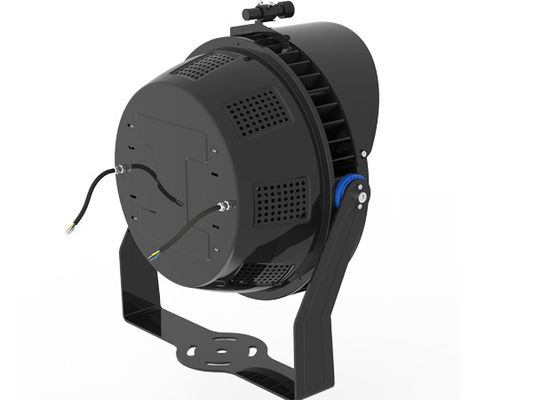

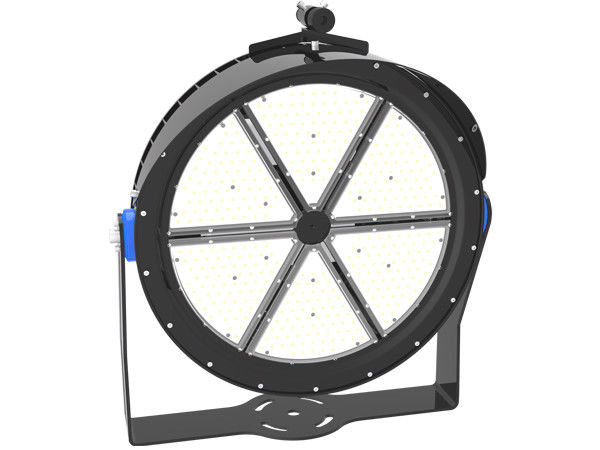

800W LED Flood Light For Sports 120000lm In Stadium Field Ground Led Sports Floodlights

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-FL750-EGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 business days
Payment Terms:	Western Union, Western Union
Supply Ability:	50,0000PCS/Month

Contact Now

Detailed Product Description

Material:	Aluminum+PC	IP Grade:	66
System Wattage/W:	250W/500W/750W/1000W/1250W	CCT/K:	3000K/4000K/5000K/5700K/6500K
Driver:	Meanwell ELG/HLG,SOSEN	LED Chips:	LUXEON SMD3030 LEDs
High Light:	industrial high bay led lighting , led stadium floodlights

800W LED Flood light for Sports 120000lm

> High Brightness LUMILEDS LUXEON SMD5050 LEDs, Meanwell HLG / ELG Driver Optional;

> Precision Integrated Die-casting Process,Excellent Thermal Conductivity；

> IP65 / IK08 Protection;

> Symmetrical 30°/60°/90° beam angle optional;

> Corrosive Resistant Powder Coated Finish；

> Multi-scale lens to create well-balanced distribution and reduce glare;

> Shield to Reduce the Light Glare;

> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;

> 360°Adjustable Supporting Fixture;

> No UV or IR and completely mercury free;

> L70/B20 @ 70.000h;

> Customized supported for special projects;

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	300W	400W	600W	800W
A / mm	Ø445	Ø445	Ø537	Ø537
B / mm	321	321	373	373

400 Watt Led Outdoor Sports Lighting Led Modular Flood lights For Tennis Courts
800W LED Flood Light For Sports 120000lm In Stadium Field Ground Led Sports Floodlights 9

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-FGXP	12.4	610510250	13.8	1PCS/CTN
DR-SPL400-FGXP	12.9	610510250	14.7	1PCS/CTN
DR-SPL600-FGXP	25.3	890710275	27.6	1PCS/CTN
DR-SPL800-FGXP	25.9	890710275	28.8	1PCS/CTN
