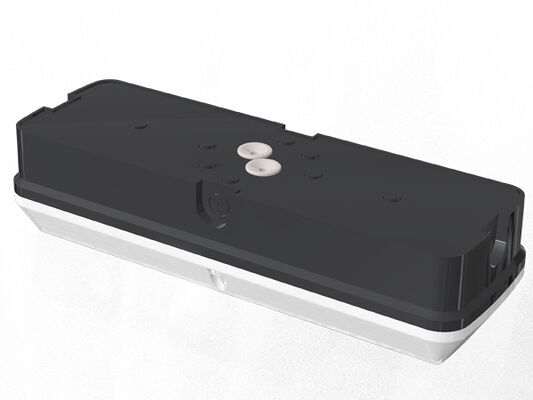

8W Bulk Head LED Porch Light with Emergency Function and Motion Sensor IP65

Product Details:

Place of Origin:	China
Brand Name:	DUALRAYS(OEM/ODM/OBM Available)
Certification:	CE, Rohs,SKG
Model Number:	DR-PL08-EGXX
Document:	DUALRAYS PL5 Bulk Head LED ...pe.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	12PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM/ODM/BOM Package Available
Delivery Time:	5-15 Business Days
Payment Terms:	Western Union,T/T,L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	8W	Luminous Flux:	800±5%
AC Input Vol:	220~240VAC/ 50/60Hz, 180-264VDC AC/DC24~42V Optional	Guarantee:	5 Years (3 Years For Emergency Type)
Luminous Efficacy:	100LPW (BASELine)	SDCM (Standard Deviation Of Color Matching):	＜5 (SDCM<3 Optional)
Through-wiring:	30.75mm2 \| 31.0mm2 \| 3*1.5mm2 Wires Through For Option	Smart Function:	Microwave Sensor \| Emergency \| Microwave Sensor + Emergency
Highlight:	led linear high bay , linear ceiling light

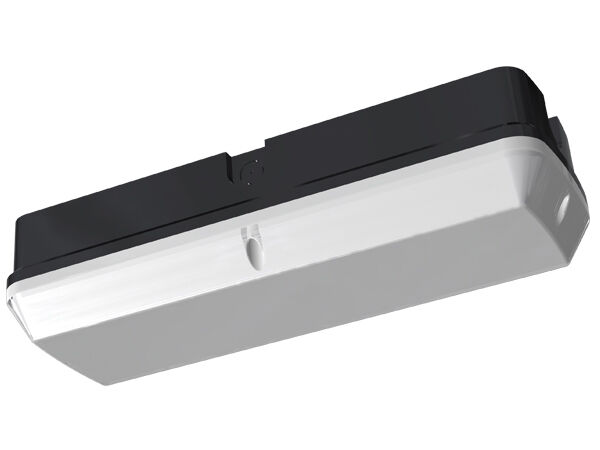

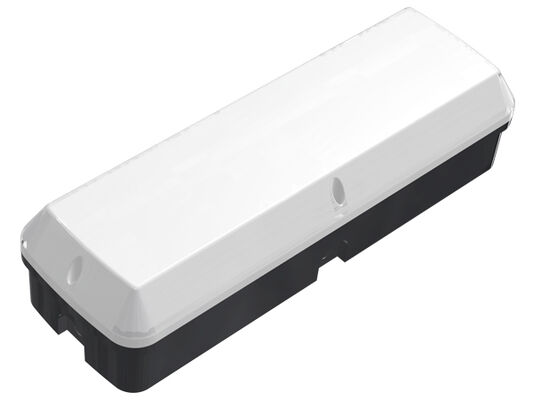

8W Bulk Head LED Porch Light with Emergency Function

The PL5 Bulk Head LED Porch Light is specifically engineered for illuminating walkways, corridors, stairwells, storage rooms, toilets, and similar areas. Featuring emergency functionality, advanced microwave sensor technology, 3-step dimming options (100% - 20% - 0%), and daylight priority control, this versatile luminaire offers comprehensive lighting solutions.

Key Features

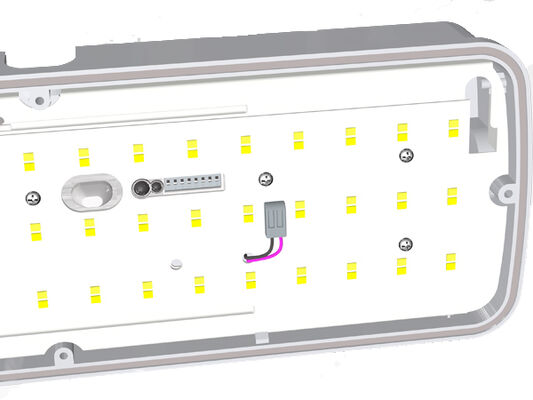

High Brightness SAN'AN SMD2835 LEDs with High PF Flicker-free Driver
Power and 3 CCT Switchable Configuration
IP65 / IK10 Protection Rating
Emergency Function with 3W@1 Hour Operation
Multiple Installation Options: Ceiling and Wall Mounting
Intelligent Control Systems: 1-10V, Motion Sensor, Daylight Sensor, and Emergency
No UV or IR Emissions, Completely Mercury Free
L80/B10 @ 52,000 Hours Lifespan
Customization Support for Special Projects

Available Options

Driver: Power and 3CCT Switchable Driver

Controls and Dimming: 1-10V, Motion Sensor, Daylight Sensor, and Emergency

Emergency: 3W@1 Hour Operation

Installation: Ceiling Mounting, Wall Mounting

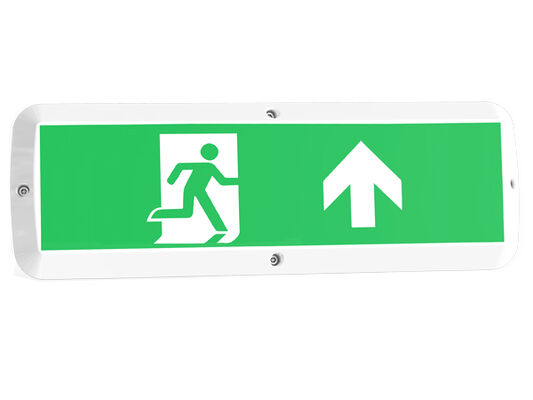

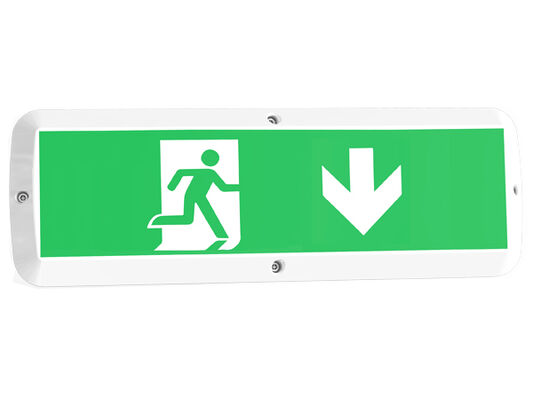

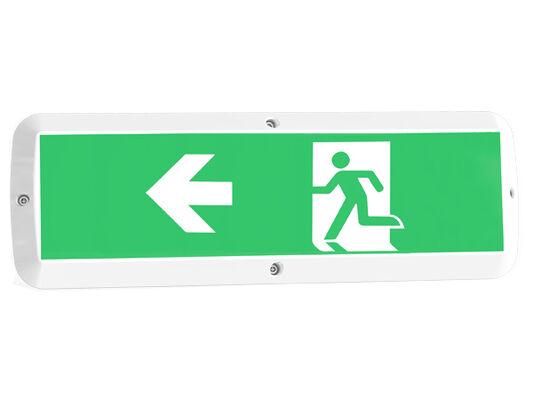

Emergency Exit Signage: 4 Directions Sticker Available

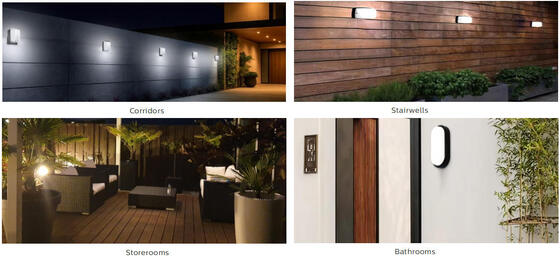

Recommended Applications

Direct replacement for fluorescent lamp luminaires in various settings:

Corridors, stairways, entrance areas, lift lobbies, galleries
Passages and underpasses
Portals, porches, balconies, facades, storerooms
Toilets and bathrooms
Public areas and common spaces

General System Specifications

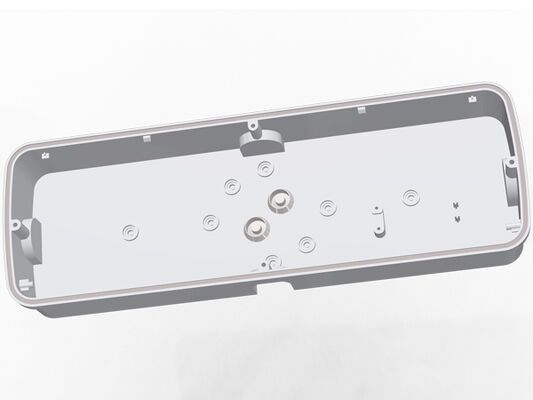

Housing Material	Extruded PC (UNE-EN ISO 21305-1:2020 standard), UV filter conditional (IK10)
Diffuser Material	Extruded PC (UNE-EN ISO 21305-1:2020 standard), UV filter conditional (IK10)
Housing Color	White (RAL9016), Other colors optional
Sealing Gaskets	Silicone foam
LEDs Thermal Dissipation	Through finless 6063 AL luminaire body, passive convection dissipation
Lamp Type	LED Exchangeable
Light Outlet	Direct
Recommended Mounted Height	2 - 4 meters
Maintenance	Diffuser Open/Close with screw
Driver	Constant current with optional power adjustable via DIP switch
Dimming Control	ON-OFF \| 1-10V dimming
IP Rating	IP65
IK Rating	IK10
Protective Class	Class Ⅱ / Class Ⅲ Optional
Glow Wire	850°C (Under 30s)
Cable Gland	PG11 / M16 Max cable gland
Installation	Ceiling mounted \| Wall Mounted Optional
Smart Function	Microwave Sensor \| Emergency \| Microwave Sensor + Emergency

Electrical System Specifications

Through-wiring	30.75mm² \| 31.0mm² \| 3*1.5mm² wires through for option
Main Voltage	220~240VAC/ 50/60Hz, 180-264VDC AC/DC24~42V Optional
Power Factor (PF)	≥0.92
Total Harmonic Distortion (THD)	＜10%
Output Type	Non-SELV (non-isolated)
Flicker Factor	＜1%
Stroboscopic Visibility Measure (SVM)	＜0.4
Perceptibility of Stroboscopic Effects (Pst)	＜1
Terminal Connection	Push-in Clamp

Module via LSS Circuit Breakers

Luminaires Power	B10A	B16A	C10A	C16A
8W	175	275	245	395

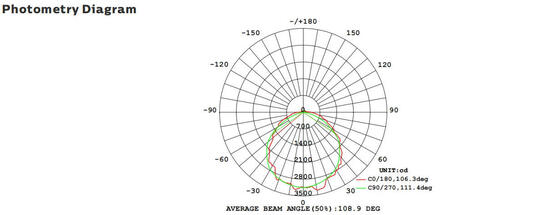

Photometry System Specifications

LEDs	SMD2835 (1W)
CCT (Correlated Color Temperature)	Single CCT (3000K \| 4000K \| 5000K \| 5700K \|6500K) 3CCT optional (3000-4000-5000K \| 3000-4500-6000K \| 4000-5000-6000K)
CRI (Color Rendering Index)	>80Ra for standard (>90Ra for higher CRI available)
Photobiological Safety	RG0 (exempt of risk)
EEC (Energy Efficiency Class)	A++
SDCM (Standard Deviation of Color Matching)	＜5 (SDCM<3 Optional)
UGR (4H, 8H)	24.9 (Cross) 23.4 (Longitudinal)
Beam Angle	120°
Average Luminaire Useful Lifetime	52,000 hours (L80B10)
Lumen Maintenance at e.o.l.	>70%
Luminous Efficacy	100LPW (BASELine)

Rated Power and Lumens

Rated Power	8W	8W DIP(3W~8W)
Lumens Delivered@ 5000K, CRI>80 (BASE)	800lm	Max. 800lm

Operation Conditions

Operation Temperature / Humidity	-20~ +50℃ (-4°F ~ 122°F) / 5~85% RH, not condensed
Storage Temperature / Humidity	-40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed
Average LED Useful Time L90B10	≥0.96
Rated Nominal Lifetime (Tp <70℃)	Up to 100,000H
Driver MTBF	500,000H, MIL-HDBK-217F(25℃)
Vibration Resistant	10~500Hz, 5G 12min / 1cycle, period for 72min. Each along X,Y,Z axes
Acoustic Noise	＜25dB (30cm distance, Normal operation)
Guarantee	5 Years

Certifications

Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471

EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384

Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11

Technical Notes

Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRI>80
Lighting beam, light intensity distribution and light efficiency examined in accordance with EN ISO 17025:2005 norm for EN13032 norm series and LM-79 norm
Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
Detailed information on luminous fluxes and powers for individual indexes indicated on product data sheet
Values may be subject to change due to LED binning
Parameters given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra

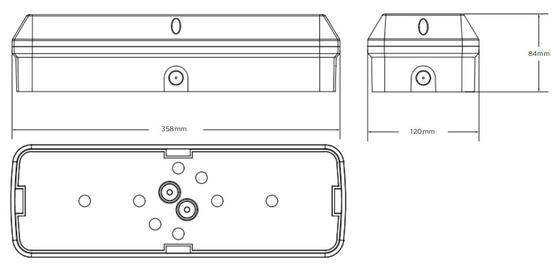

Ceiling Mounted Installation

Packaging Specifications

Length/mm	Inner Box	Outer Carton	QTY /CTN	Unit N.W	G.W/Carton
600	733x93x93mm	748x294x304mm	9PCS	1.4Kg	13.2Kg
1200	1333x93x93mm	1348x294x304mm	9PCS	2.1Kg	19.8Kg
1500	1633x93x93mm	1648x294x304mm	9PCS	2.8Kg	26.4Kg

Installation Safety Instructions

Please read all instructions below before installation:

To avoid electric shock, please ensure that the power supply is turned off before installation
The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes
Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation
If the lamp is damaged, do not use it!

Manufacturer Statement:

According to the International Standard of LED luminaire, DUALRAYS formally claims that DUALRAYS Bulk Head LED Porch Light series products are only allowed to be applied to indoor or semi-outdoor neutral environment. DUALRAYS promises full warranty for the products. Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without official confirmation from the manufacturer. If any misapplication occurs, the warranty policy is no longer guaranteed.

Company Advantages

Professional Team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system
Reliable Brand: Built up stable and long-term cooperation with Europe customers, warehouse in Netherlands for better service
DIALux Simulation: Our engineering team provides simulation services based on your application parameters
Quality Standards: All LED luminaries comply with CE, RoHS standards with TUV, ENEC, VDE, SAA, C-Tick, LM79, LM80 certifications

Shipping Information

Note: For small orders, express shipping is recommended. For bulk orders, sea or train shipping (Europe destination) is most cost-effective but takes longer. For urgent orders, we suggest air freight to airport plus our shipping partner delivery to your door.

Frequently Asked Questions

Q1: What is the warranty for the PL5 LED Porch Light?

RE: 5 years warranty. If any quality problems on our side occur during this period, we will cover shipping costs and provide replacements.

Q2: What payment methods do you accept?

RE: We accept multiple payment methods including Western Union, Paypal, T/T, L/C. Standard payment for bulk orders is T/T: 30% in advance, balance 70% before shipment.

Q3: What is CRI?

RE: CRI (Color Rendering Index) measures how accurately colors appear under the light. Higher CRI values (80Ra standard, 90Ra available) provide better color representation.

Q4: Can I purchase only the housing separately?

RE: We only supply complete luminaire fixtures, but SKD/CKD (Semi-Knocked Down/Completely Knocked Down) options are available.

Q5: What are the shipping costs to my country?

RE: For small orders, express shipping is recommended. For bulk orders, sea or train shipping (Europe) is most cost-effective. Urgent orders can be shipped via air.

Q6: Can we get marketing support?

RE: Please inform us of your market position and requirements. We will discuss and propose helpful suggestions to find the best solution for your needs.

Q7: What dimming functions are available?

RE: DALI, PIR, 1-10V dimming available. Built-in daylight sensor for intelligent control is optional.

Q8: What are the applications of your PL5 LED Porch Light?

RE: Our porch light can be applied in: Replacement for fluorescent lighting, Food Processing Plants, Chemical Facilities, Animal Stable Warehouses, Car Washing Places, and various Outdoor & Indoor Locations.
