| Place of Origin: | Shenzhen |
| Brand Name: | Dualrays |
| Certification: | CE, Rohs,TUV |
| Model Number: | DR-ULM056-DE5C |
| Minimum Order Quantity: | 8pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Netural Packaging,color box packaging,8PCS/CTN,L1545xW220xH240mm |
| Delivery Time: | 15 business days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 100000PCS/Month |
| Rated Power: | 12W~56W | Dimming: | 1-10V/DALI |
|---|---|---|---|
| CRI: | >80Ra | AC Input Vol: | AC200~240V 50/60Hz |
| Power Factor: | PF>0.95 | Switching Cycle Before Failure: | 100,000 |
| High Light: | led linear high bay,linear lighting systems |
||

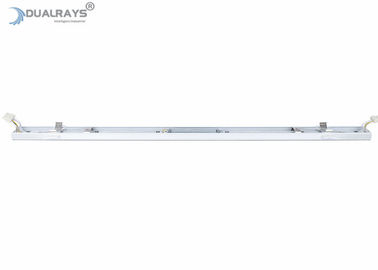

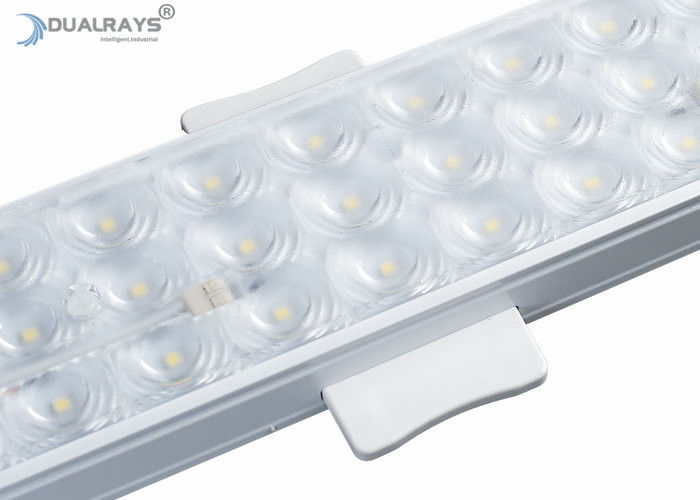

56W LED Linear light Module Power Adjustable Easy Exchanging Solution
| Item | Symbol | Description |
| Power | W | 12W~56W adjustable |
| Color | / | RAL 9003 |
| Efficiency | LPW | 150 |
| Colo Temperature | CCT/K | WW:3000±200K NW: 4000±200K DW:5000±200K CW: 6000±200K |
| Beam Angle | Degree | 30°/60°/90°/120°/Double Asy 25°/Single Asy 25° |
| AC Input Vol | V | AC220-240V/DC180-264V |
| Lumen Maintenance at 36000 hrs | Hours | >90% |
| Switching Cycle before Failure | Times | 100,000 |
| Life Span | Hours | 50,000 |
| Warranty | Years | 5 years |
| Operation Temperature | ℃ | -40 ~ +55℃ |
| Storage Temperature | ℃ | -40 ~ +85℃ |
Feature
a. Easy exchanging universal linear retrofit module was used in Germany replacement;
b. At least 50% labor cost energy saving, save time and save money;
c. Osram adjustable power with switch for more power choice during actual occasions,AC/DC input;
d. BOKE flicker-free driver,with non-dimming,1-10V,DALI dimming, AC/DC input;
Advantage
* Powerful production capacity and QC management system;
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;
* Supply different version with different configurations for our customers.
* Office
* Workshops and warehouse
* Supermarkets
* Underground parking
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
