|Place of Origin:||China|
|Minimum Order Quantity:||8pcs|
|Packaging Details:||Neutral Package,color box package,8PCS/CTN,|
|Delivery Time:||15 business days|
|Payment Terms:||Western Union, T/T, L/C|
|Rated Power:||75W||Luminous Flux:||11000±5%|
led linear high bay,
linear lighting systems

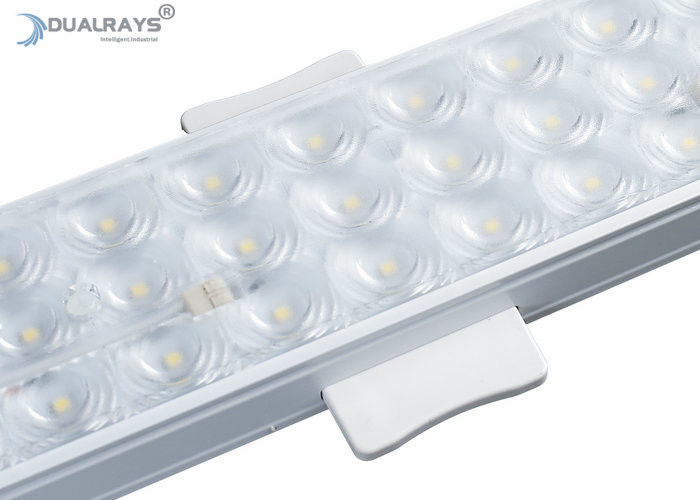

5ft 55W Fixed Power Universal Plug-in Linear light Module
|Color||/||White RAL 9003|
|Colo Temperature||CCT/K||WW:3000±200K NW: 4000±200K DW:5000±200K CW: 6000±200K|
|AC Input Vol||V||AC220-240V/DC180-264V|
|Lumen Maintenance @ 6000 hrs||Hours||>80%|
|Switching Cycle before Failure||Times||100,000|
|Operation Temperature||℃||-40 ~ +55℃|
|Storage Temperature||℃||-40 ~ +85℃|
a. Osram DIP Switch power adjustable power choice during actual occasions,AC/DC input;
b. BOKE flicker-free driver,with non-dimming,1-10V,DALI dimming, AC/DC input;
c. The complete fixtures includes linear module, trunking rail, optional functions and installation accessories, the quotation above only means linear module, extra function or installationkits ,please contact us for quotation;
d. Customized dimming type or emergency function,please contact us for confirmation;
* OEM/ODM is available. We supply customized service for our customers to meet their marketing;
* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;
* Powerful production capacity and QC management system;
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* Supply different version with different configurations for our customers.
* Workshops and warehouse
* Underground parking
(1) For small order,express will be best.
(2) For bulk order,ship by sea or train(Europe destination) is the best,but take much time.
(3) For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: Does Dualrays have the ability to do independence and development ?
RE: Our engineer department have 12 people. We have the research and development capability. We also collect regularly each customer feedback. We have product improvement and new product development.
Q2: LEDs are more expensive than other lighting options,why ?
RE: LEDs can operate as stand alone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.
Q3.How to explain “Flux/luminous Flux “?
RE: Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.
Q4.Why we use the high power LED ?
RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.
Q5.How important is IP ?
RE: Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.
Q6.What’s LED Chips ?
RE: The light producing semiconductor device that may or may not be incorporated into an LED.
