Place of Origin: | China |
Brand Name: | Dualrays Optoelectronics |
Certification: | CE, Rohs,TUV |
Model Number: | DR-ULM035-DE5C |
Minimum Order Quantity: | 8pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Netural Packaging,color box packaging,8PCS/CTN,L1545xW220xH240mm |
Delivery Time: | 15 business days |
Payment Terms: | Western Union, T/T, L/C |
Supply Ability: | 100000PCS/Month |
Rated Power: | 35W | Dimension: | 1430mm |
---|---|---|---|
Switching Cycle Before Failure: | 100,000 | Efficiency: | 150lm/W |
L80: | >50000hrs | Flicker: | No |
High Light: | led linear high bay,linear ceiling light |

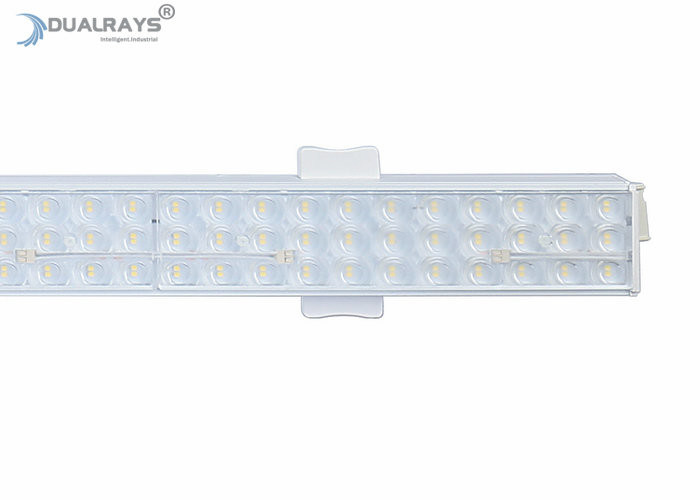

Various of Europe trunking rail system compatible Universal LED Linear Module retrofit
Item | Symbol | Description |
Model No | / | DR-ULM055-DE5C |
Length | mm | 1430 |
Color | / | White RAL 9003 |
LEDs source | / | SMD2835 |
Driver | / | BOKE |
Efficiency | LPW | 150 |
Colo Temperature | CCT/K | WW:3000±200K NW: 4000±200K DW:5000±200K CW: 6000±200K |
Dimming Function | / | DALI |
Protections | / | Short circuit/Over current/Over voltage/Over temperature |
Anti-salty spray | / | Grade A |
Color Index | Ra | >80Ra |
Beam Angle | Degree | 30°/60°/90°/120°/Double Asy 25°/Single Asy 25° |
AC Input Vol | V | AC220-240V/DC180-264V |
Output Vol | V | DC32V |
Power Factor | PF | PF>0.95 |
Lumen Maintenance @ 6000 hrs | Hours | >98% |
Switching Cycle before Failure | Times | 100,000 |
Life Span | Hours | 50,000 |
Warranty | Years | 5 years |
Operation Temperature | ℃ | -40 ~ +55℃ |
Storage Temperature | ℃ | -40 ~ +85℃ |
Feature
a. Suitable for Trunking rails by RIDI, Trilux, , VEKO....
b. Easy solution used for replacement of T8/T5 tubes;
c. Different brand and different types of drivers for options.
d. BOKE flicker-free driver,with non-dimming,1-10V,DALI dimming, AC/DC input;
e. The complete fixtures includes linear module, trunking rail, optional functions and installation accessories, the quotation above only means linear module, extra function or installationkits ,please contact us for quotation;
f. Customized dimming type or emergency function,please contact us for confirmation;
Advantage
* Provide Dialux software for lighting design project for our customers;
* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction.
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.
Application
* Office
* Workshops and warehouse
* Supermarkets
* Underground parking
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
Notes:
(1) For small order,express will be best.
(2) For bulk order,ship by sea or train(Europe destination) is the best,but take much time.
(3) For urgent orders,we suggest via air to airport plus our ship partner send to your door.
FAQ
Q1: Does Dualrays have the ability to do independence and development ?
RE: Our engineer department have 12 people. We have the research and development capability. We also collect regularly each customer feedback. We have product improvement and new product development.
Q2: LEDs are more expensive than other lighting options,why ?
RE: LEDs can operate as stand alone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.
Q3.How to explain “Flux/luminous Flux “?
RE: Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.
Q4.Why we use the high power LED ?
RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.
Q5.How important is IP ?
RE: Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.
Q6.What’s LED Chips ?
RE: The light producing semiconductor device that may or may not be incorporated into an LED.
