| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-ULM075-DE5C |
| Minimum Order Quantity: | 8PCS |
|---|---|
| Price: | Negotaited |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Warranty: | 5 Years | Power Factor: | >0.95 |
|---|---|---|---|
| CRI: | >83 | CCT/K: | 3000K/4000K/5000K/5700K/6500K |
| Wattage: | 75W | Beam Angle: | Asy25°/45°/60°/90° |
| High Light: | led linear high bay,linear lighting systems |
||

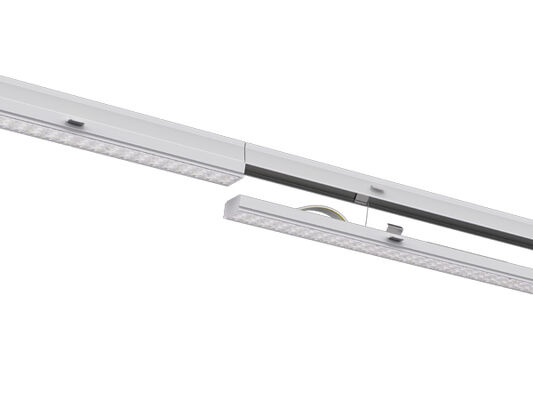

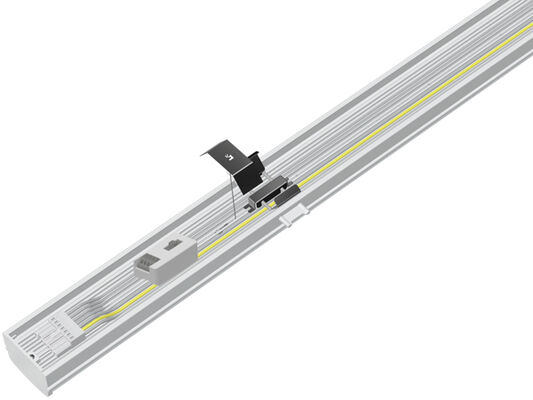

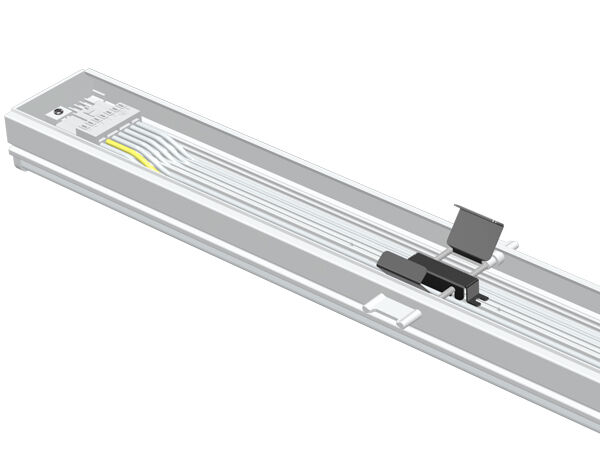

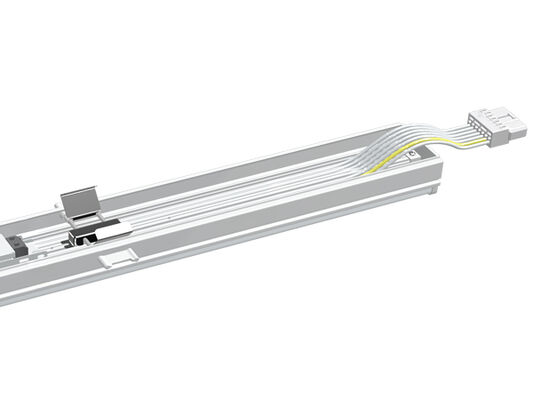

75W Fixed Power Universal Plug in LED Linear light Module
| Item | Symbol | Description |
| Model No | / | DR-ULM075-DE5C |

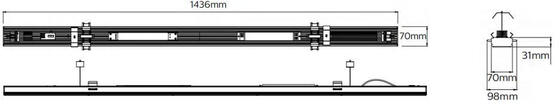

| Length | mm | 1430 |
| Dimming Function | / | DALI/1-10V |
| Protections | / | Short circuit/Over current/Over voltage/Over temperature |

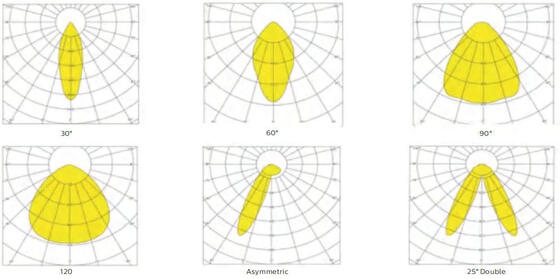

| Beam Angle | Degree | 30°/60°/90°/120°/Double Asy 25°/Single Asy 25° |
| AC Input Vol | V | AC220-240V/DC180-264V |
| Output Vol | V | DC32V |
| Power Factor | PF | PF>0.95 |
| Warranty | Years | 5 years |
| Operation Temperature | ℃ | -40 ~ +55℃ |
| Storage Temperature | ℃ | -40 ~ +85℃ |
Feature

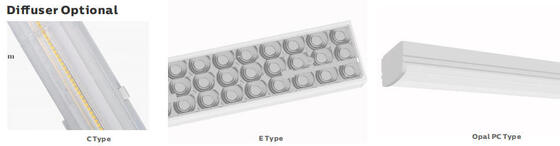

a. Private Mold for PMMA Extrusion lens,much more durable and elegant normal PC Injection lens in the market;

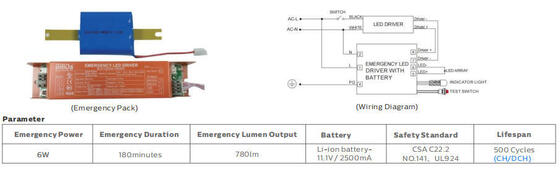

b. Emergency function, and DALI dimming function available;

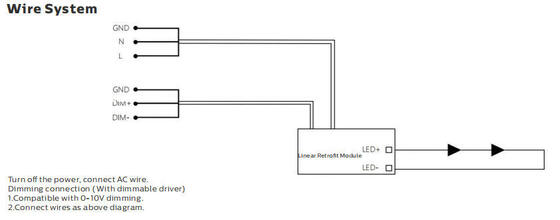

c. BOKE flicker-free driver,with non-dimming,1-10V,DALI dimming, AC/DC input;
d. Customized dimming type or emergency function,please contact us for confirmation;
Advantage
* Build strategic partnership with international top brands such as CREE, LUMILEDS, NICHIA, MEANWELL,etc.
* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction.
* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;
* Supply different version with different configurations for our customers.
Application
* Office
* Workshops and warehouse
* Supermarkets
* Underground parking
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
